FS580SE-QC Spring Applied Caliper Disc Brake  NEW!


Attributes | Quote | Options | Downloads | Related FS580SE-QC

4006-0070

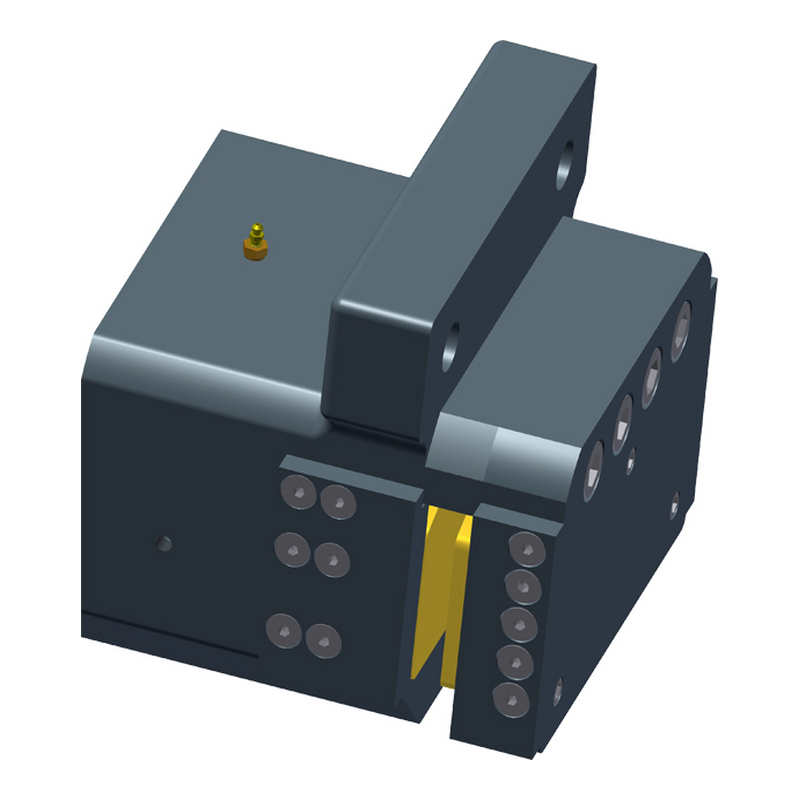

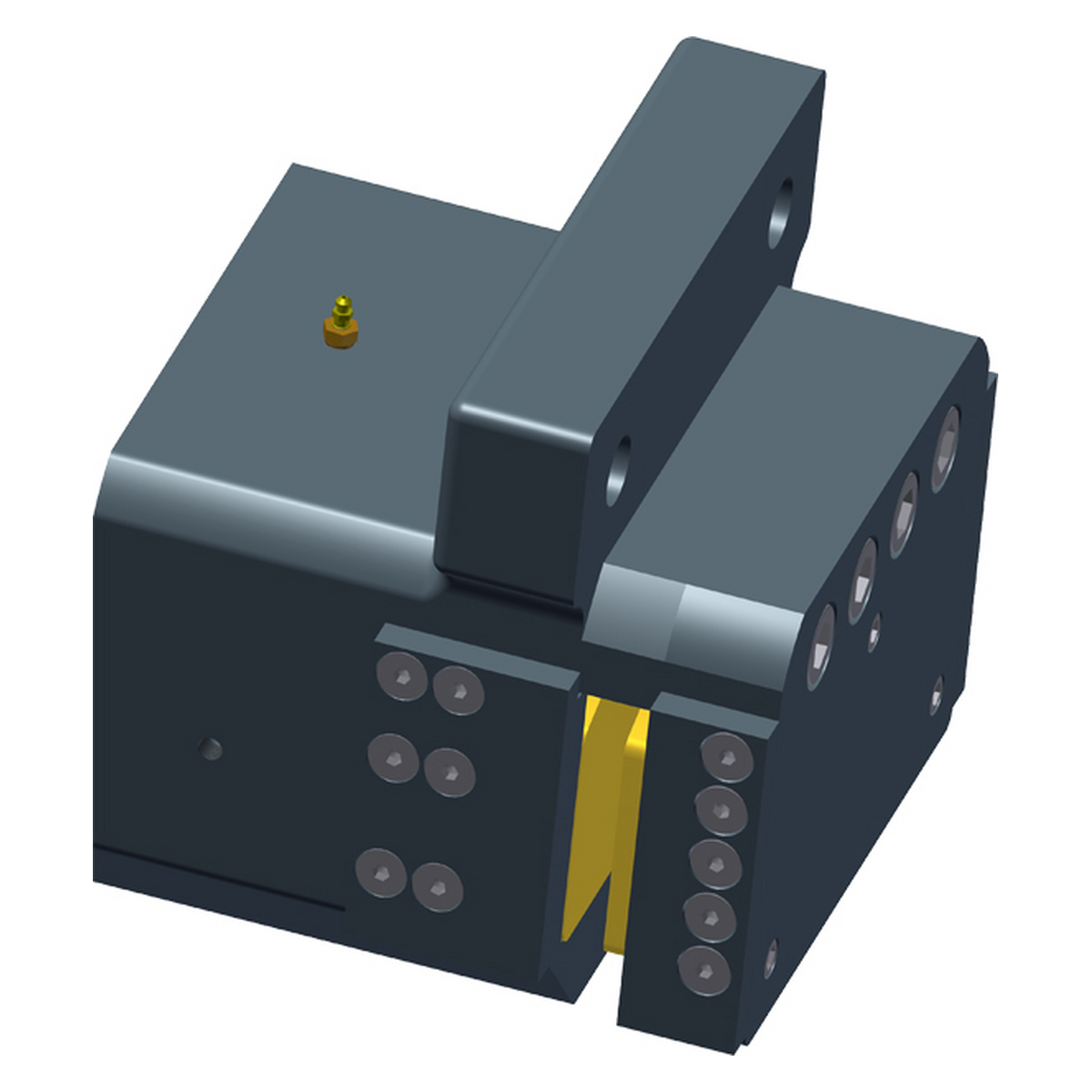

580 Series, Quick Change Pad Series, Dual Bore, Hydraulic Spring Applied Single Acting Caliper Disc Brake. Sized for 1/2 inch Thick Brake Disc.

  • Quick Change Pads
  • 625 PSI Release Pressure
  • 1000 PSI Maximum Pressure
  • Cast Aluminum Construction
  • Hardcoated Housings
  • Dual Bore, Dual Belleville Disc Spring Stack
  • Fits on Brake Discs from 20 inch Diameter and Larger
  • .45 coefficient of friction #951023
  • Buna N Seals
  • Non-Asbestos Friction Material
  • 6,419 lb. Maximum Tangential Force
  • 83,659 in. lb. Braking Torque using 30 inch Diameter Brake Disc
  • 14,264 lb. Clamping Force

Attributes


Description Single Acting, Floating Mount. Use Fixed Disc
Additional Info Dual Piston. Spring Applied 625 PSI Release
Disc Thick. (in.) 1/2
Tangential Force 6419 lbf, 28,552 N
Max. Pressure, PSI 1000
Seals Buna-N
Fluid Displacement & Type Hydraulic Oil

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

Pre-production at this time. Consult factory for availability.

Engineering note: Spring applied brakes are intended for use as an emergency stop or static holding device. It is not suggested to use in continuous slip applications as torque capacity is directly related to friction pad wear.

Downloads


FS580S-QC Series Dimension View (1.81MB JPG)
FS580S-QC Series Dimension Print (209KB PDF)
FS580S-QC Series DWG Cad (309KB DWG)
FS580S-QC Series DXF Cad (1.07MB DXF)
FS580S-QC Series STEP Cad (772KB STP)
