FS585SJ-QC Spring Applied Caliper Disc Brake  NEW!


Attributes | Quote | Options | Downloads | Related FS585SJ-QC

4006-0076

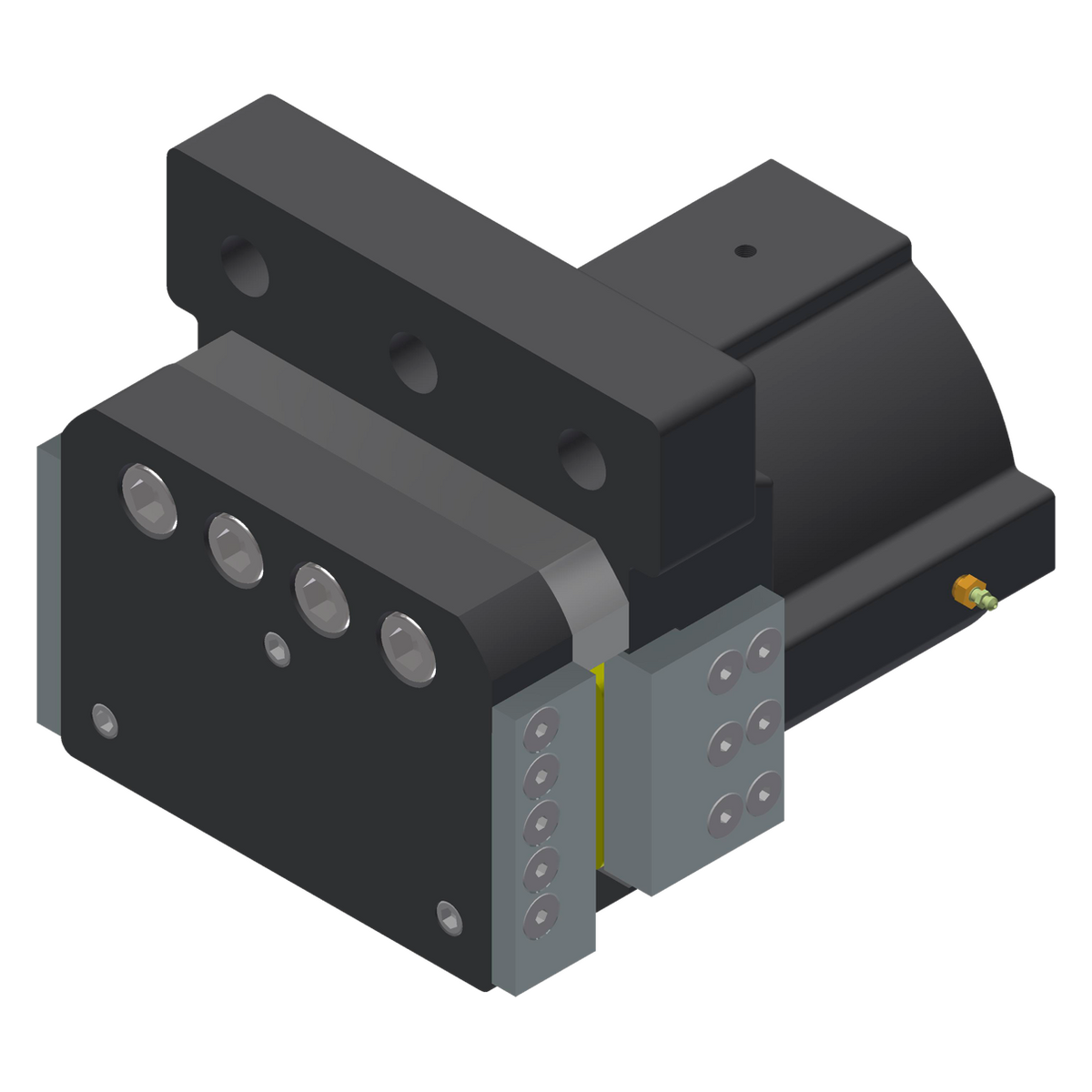

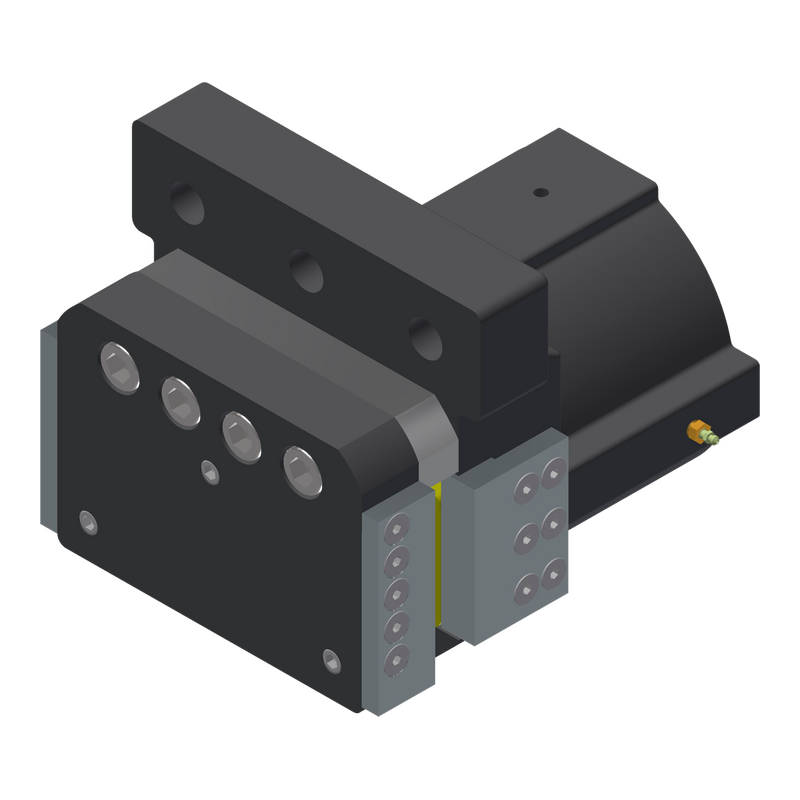

585 Series, Quick Change Pad Series, Dual Bore, Hydraulic Spring Applied Single Acting Caliper Disc Brake. Sized for 5/8 inch Thick Brake Disc.

  • Quick Change Pads
  • 1300 PSI Release Pressure
  • 1600 PSI Maximum Pressure
  • Cast Aluminum Construction
  • Hardcoated Housings
  • Dual Bore, Dual Belleville Disc Spring Stack
  • Fits on Brake Discs from 20 inch Diameter and Larger
  • .45 coefficient of friction #951023
  • Buna N Seals
  • Non-Asbestos Friction Material
  • 12,838 lb. Maximum Tangential Force
  • 167,317 in. lb. Braking Torque using 30 inch Diameter Brake Disc
  • 28,528 lb. Clamping Force

Attributes


Description Single Acting, Floating Mount. Use Fixed Disc
Additional Info Dual Piston. Spring Applied 1300 PSI Release
Disc Thick. (in.) 5/8
Tangential Force 12,838 lbf / 57,106 N
Max. Pressure, PSI 1600
Seals Buna-N
Fluid Displacement & Type Hydraulic Oil

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

Pre-production at this time. Consult factory for availability.

Engineering note: Spring applied brakes are intended for use as an emergency stop or static holding device. It is not suggested to use in continuous slip applications as torque capacity is directly related to friction pad wear.

Downloads


Dimension View (230KB JPG)
Dimension Print (233KB PDF)
DWG Cad File (135KB DWG)
DXF Cad File (476KB DXF)
STEP Cad File (732KB STP)
Product Number Product Name Description Additional Info Disc Thick. (in.) Tangential Force
4006-0075 FS585SE-QC Single Acting, Floating Mount. Use Fixed Disc Dual Piston. Spring Applied 1300 PSI Release 1/2 12,838 lbf / 57,106 N
4006-0077 FS585ST-QC Single Acting, Floating Mount. Use Fixed Disc Dual Piston. Spring Applied 1300 PSI Release 3/4 12,838 lbf / 57,106 N
4006-0078 FS585SO-QC Single Acting, Floating Mount. Use Fixed Disc Dual Piston. Spring Applied 1300 PSI Release 1 12,838 lbf / 57,106 N
