IAS251:1LHA30B30 Series 25 Metric  NEW!


Attributes | Quote | Options | Downloads | Related IAS251:1LHA30B30

4305-0031

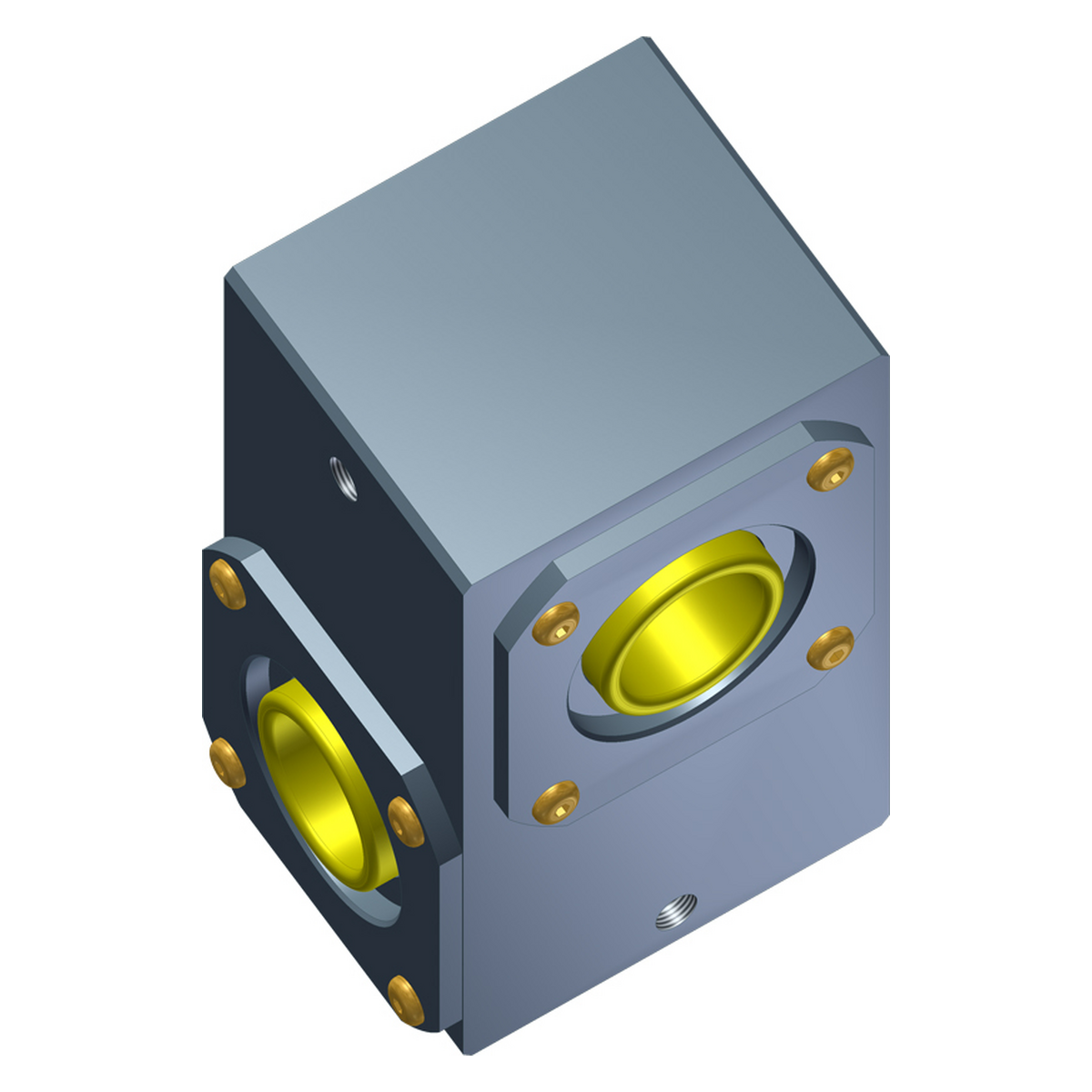

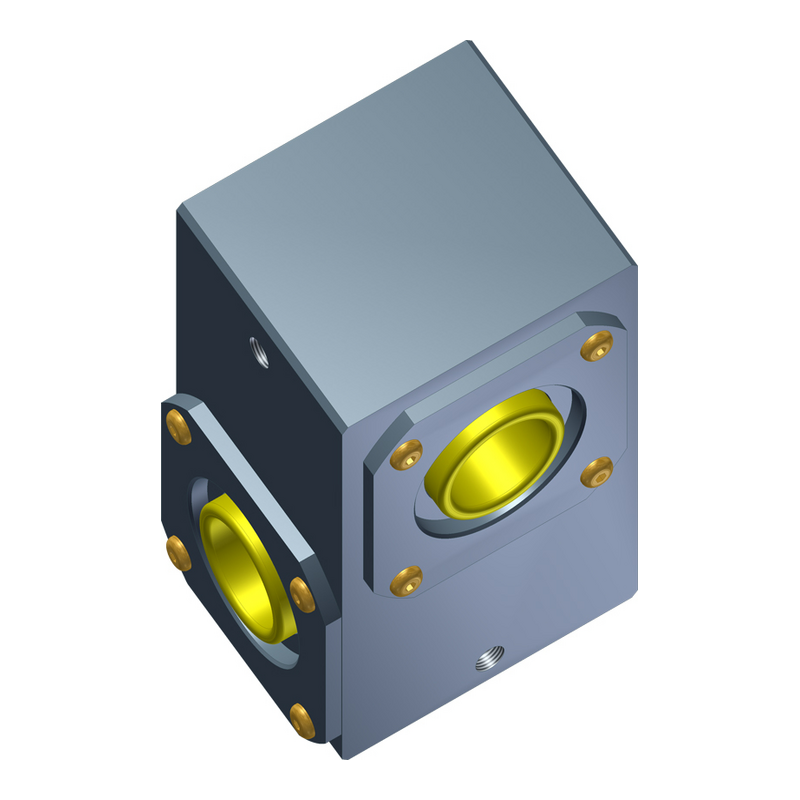

Insert-A-Shaft® Series 25 Metric Right Angle Gearbox, 1:1 Ratio, Left Hand Rotation, 'A' Bore 30mm x 'B' Bore 30mm.

  • Sealed, Leak Proof Gearcase
  • Cast Aluminum Construction
  • Hardcoated
  • 8620 Heat Treated Case Hardened Gears
  • Heavy Duty Double Sealed Ball Bearings
  • Pre-Lubricated w/Magnalube®-G GR2 HTEP
  • 8mm Keys, 2 Included

Attributes


Ratio 1:1
Rotation Left Hand
'A' Bore (mm) 30
'B' Bore (mm) 30
Max RPM 1200
Max Hand Torque 609 in. lb.
Bore Center Dist., in. 2.5
Mounting Type Flush
Mounting (4) M8 x 1.25-6H x 10mm
Key Size 8mm

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

Electro Nickel Plated Gearcase, Caps • Stainless Gearcase, Caps • Stainless Bearings, Fasteners • Food Grade Lubricant • See Washdown Series

Magnalube®G is a registered trademark of Saunders Enterprises, Inc. Magnalube is USDA H2 rated.

Downloads


Dimension View (354KB JPG)
Dimension Print (336KB PDF)
DWG Cad File (235KB DWG)
DXF Cad File (734KB DXF)
STEP Cad File (890KB STP)
Product Number Product Name Ratio Rotation 'A' Bore (mm) 'B' Bore (mm)
4305-0030 IAS251:1RHA30B30 1:1 Right Hand 30 30
4305-0032 IAS251:1RHA30B25 1:1 Right Hand 30 25
4305-0033 IAS251:1LHA30B25 1:1 Left Hand 30 25
4305-0034 IAS251:1RHA30B20 1:1 Right Hand 30 20
4305-0035 IAS251:1LHA30B20 1:1 Left Hand 30 20
4305-0036 IAS251:1RHA25B30 1:1 Right Hand 25 30
4305-0037 IAS251:1LHA25B30 1:1 Left Hand 25 30
4305-0038 IAS251:1RHA25B25 1:1 Right Hand 25 25
4305-0039 IAS251:1LHA25B25 1:1 Left Hand 25 25
4305-0040 IAS251:1RHA25B20 1:1 Right Hand 25 20
4305-0041 IAS251:1LHA25B20 1:1 Left Hand 25 20
4305-0042 IAS251:1RHA20B30 1:1 Right Hand 20 30
4305-0043 IAS251:1LHA20B30 1:1 Left Hand 20 30
4305-0044 IAS251:1RHA20B25 1:1 Right Hand 20 25
4305-0045 IAS251:1LHA20B25 1:1 Left Hand 20 25
4305-0046 IAS251:1RHA20B20 1:1 Right Hand 20 20
4305-0047 IAS251:1LHA20B20 1:1 Left Hand 20 20
