IAS253:2RHA30B20 Series 25 Metric
Attributes |
Quote
| Downloads
| Related

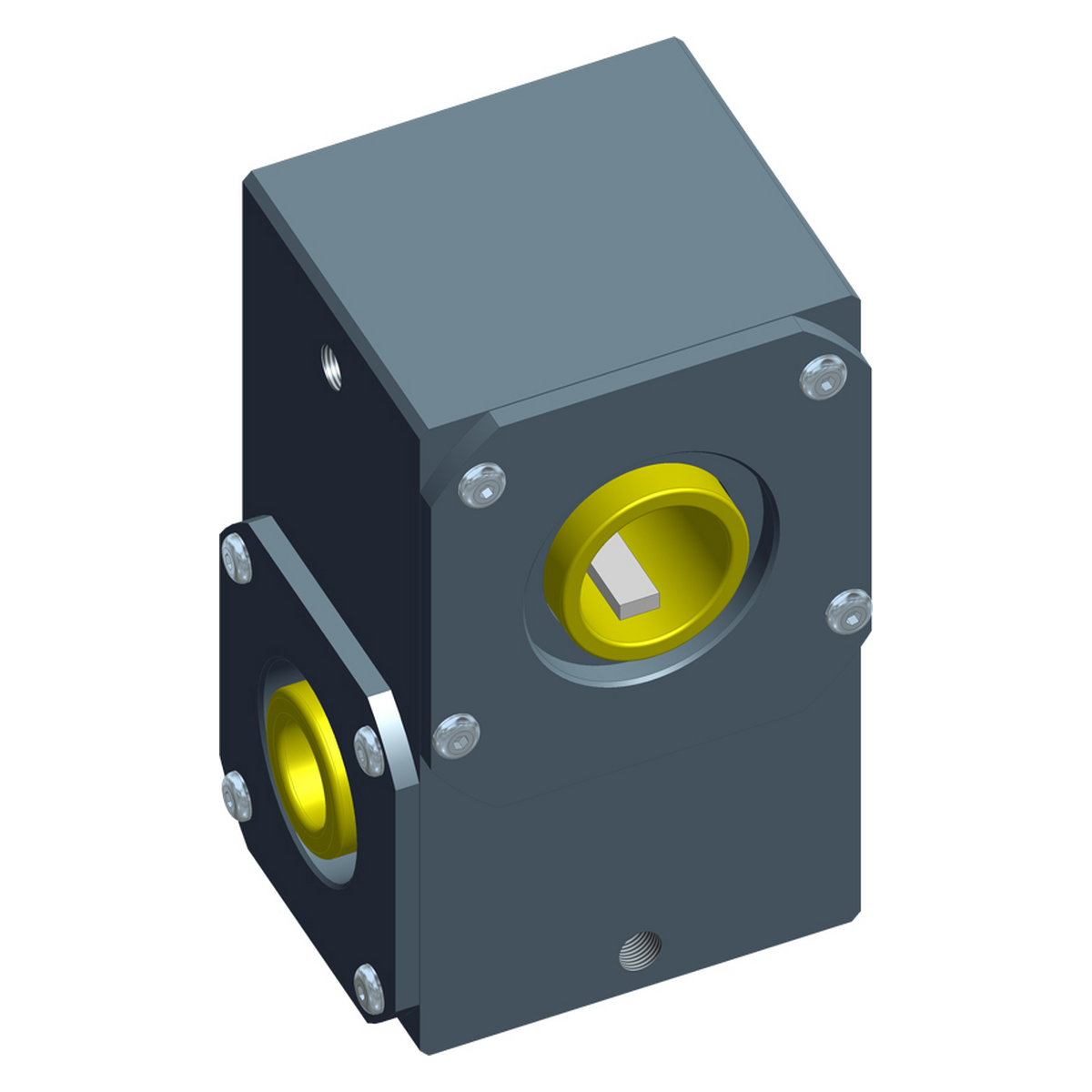

Insert-A-Shaft® Series 25 Metric Right Angle Gearbox, 3:2 Ratio, Standard Mount, Right Hand Rotation, 'A' Bore 30mm x 'B' Bore 20mm
- Sealed, Leak Proof Gearcase
- Cast Aluminum Construction
- Hardcoated
- 8620 Heat Treated Case Hardened Gears
- Heavy Duty Double Sealed Ball Bearings
- Pre-Lubricated w/Magnalube®-G GR2 HTEP
- Keys, 2 Included
Attributes
| Ratio |
3:2 |
| Rotation |
Right Hand |
| 'A' Bore (mm) |
30 |
| 'B' Bore (mm) |
20 |
| Max RPM |
1200 |
| Max Hand Torque |
609 in. lb. |
| Bore Center Dist., in. |
2.5 |
| Mounting Type |
Flush |
| Mounting |
(4) M8 x 1.25-6H x 10mm |
| Key Size |
(A) Bore 8mm (B) Bore 6mm |
Add to Quote
You must be logged in to add this product to a quote.
Get A Quick Quote
Downloads
| Product Number |
Product Name |
Ratio |
Rotation |
'A' Bore (mm) |
'B' Bore (mm) |
| 4305-0051 |
IAS253:2LHA30B20 |
3:2 |
Left Hand |
30 |
20 |
| 4305-0052 |
IAS253:2RHA30B25 |
3:2 |
Right Hand |
30 |
25 |
| 4305-0053 |
IAS253:2LHA30B25 |
3:2 |
Left Hand |
30 |
25 |
| 4305-0054 |
IAS253:2RHA25B25 |
3:2 |
Right Hand |
25 |
25 |
| 4305-0055 |
IAS253:2LHA25B25 |
3:2 |
Left Hand |
25 |
25 |
| 4305-0056 |
IAS253:2RHA25B20 |
3:2 |
Right Hand |
25 |
20 |
| 4305-0057 |
IAS253:2LHA25B20 |
3:2 |
Left Hand |
25 |
20 |
| 4305-0058 |
IAS253:2RHA20B20 |
3:2 |
Right Hand |
20 |
20 |
| 4305-0059 |
IAS253:2LHA20B20 |
3:2 |
Left Hand |
20 |
20 |
|
|
