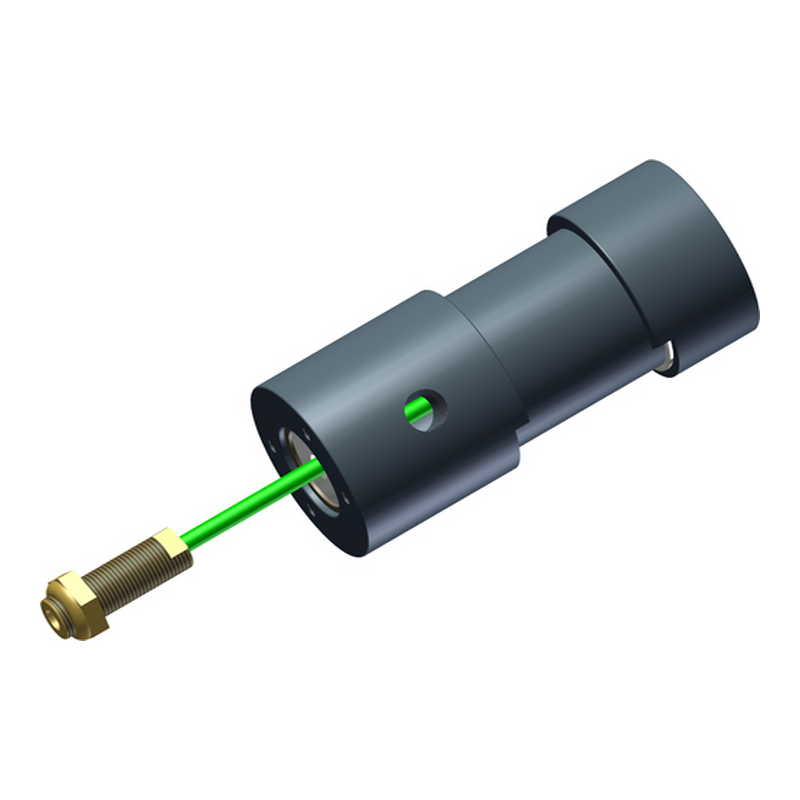

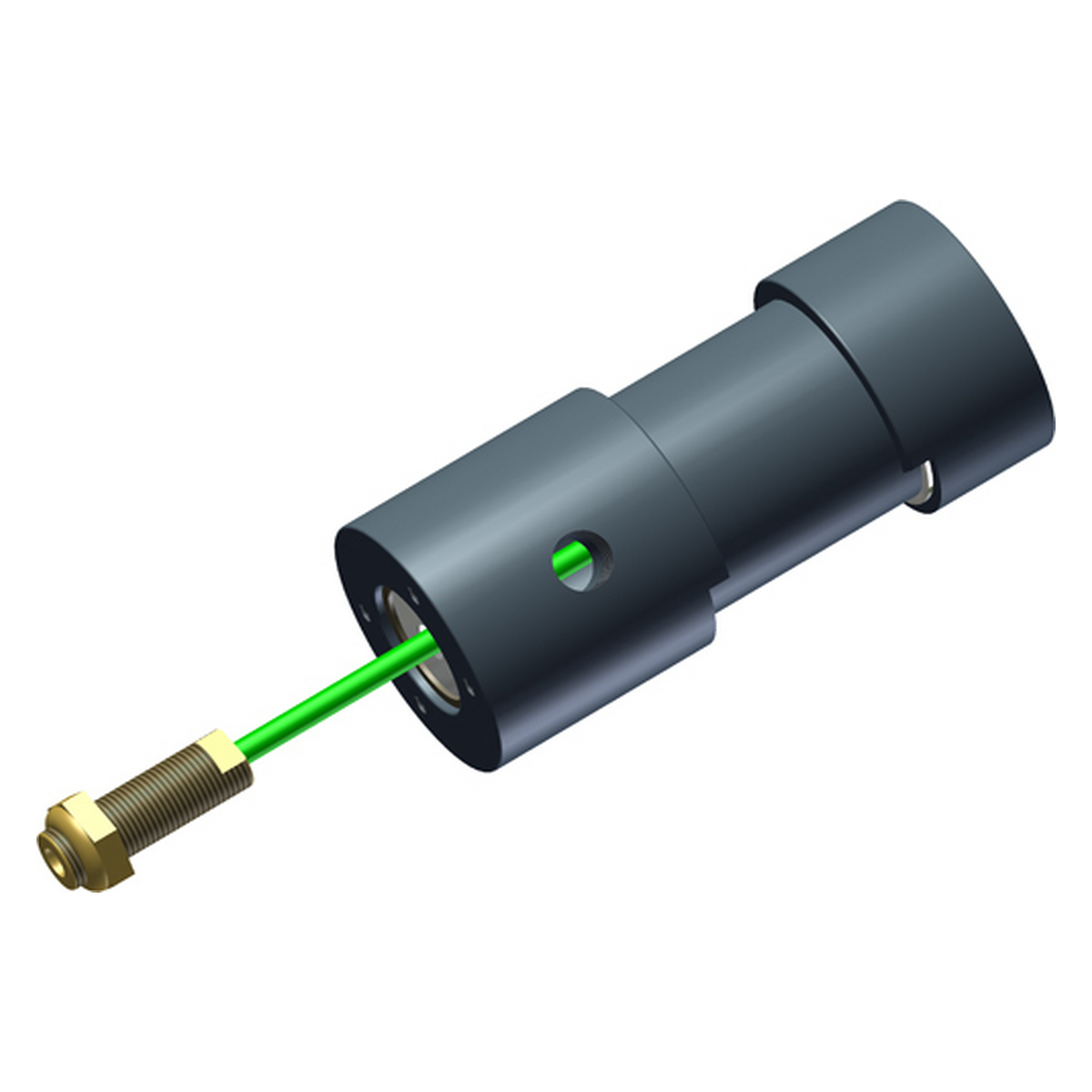

LTC1101 Linear Tension Cable Cylinder  NEW!


Attributes | Quote | Downloads LTC1101

1101-0048

Linear Tension Cable Cylinder with power stroke in one direction, 1.0 inch bore.

Operating temperature range: 20º to 140º F.

Attributes


Bore, in. 1.0
Options(s) None
Force@100 PSI, lbs. 78
Eff. Area, in.sq .78
Max. Stroke Length*, in. 72
Cable Wire Dia., in. 3/64
Cable Nylon O.D., in. 3/32
Strand Config 7 x 7
Tensile Strength, lbs. 270
20% Rule, lbs. 54

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Downloads


Dimension View (321KB JPG)
DWG Cad File (299KB DWG)
DXF Cad File (470KB DXF)
