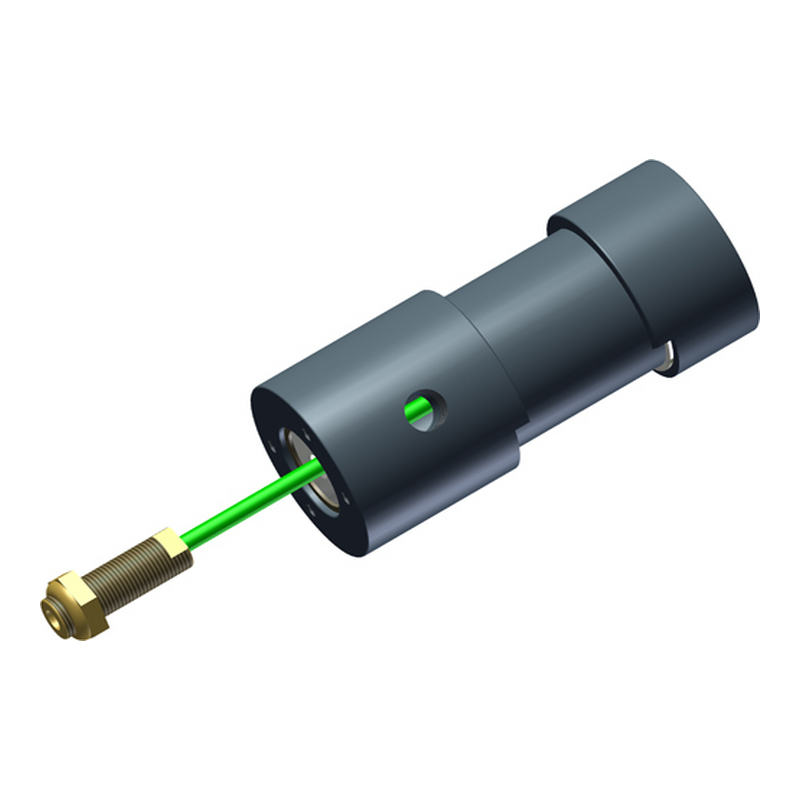

LTC1151 Linear Tension Cable Cylinder  NEW!


Attributes | Quote | Downloads LTC1151

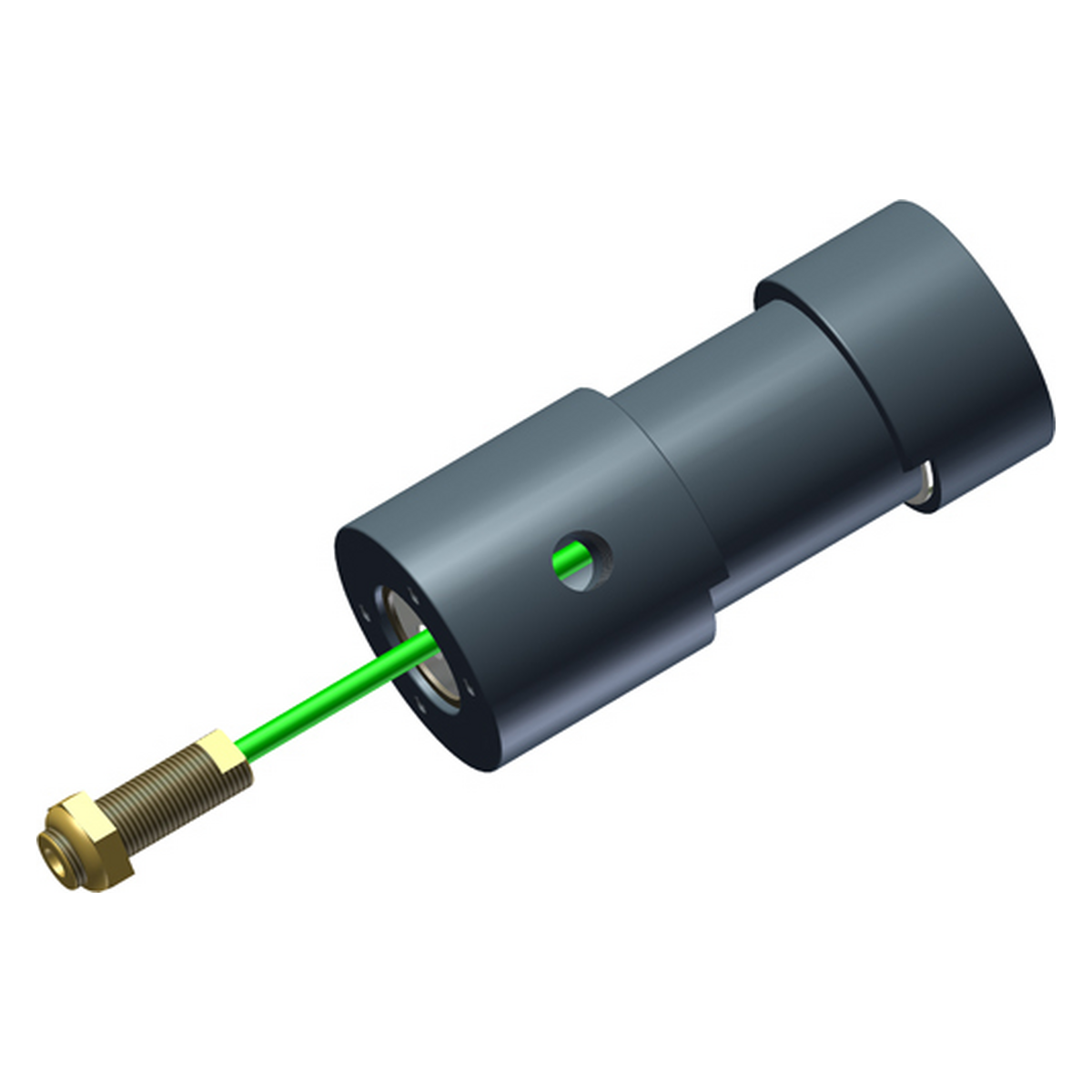

1151-0068

Linear Tension Cable Cylinder with power stroke in one direction, 1.5 inch bore.

Operating temperature range: 20º to 140º F.

Attributes


Bore, in. 1.5
Options(s) None
Force@100 PSI, lbs. 174
Eff. Area, in.sq 1.74
Max. Stroke Length*, in. 126
Cable Wire Dia., in. 3/32
Cable Nylon O.D., in. 3/16
Strand Config 7 x 19
Tensile Strength, lbs. 920
20% Rule, lbs. 184

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Downloads


Dimension View (322KB JPG)
DWG Cad File (299KB DWG)
DXF Cad File (465KB DXF)
