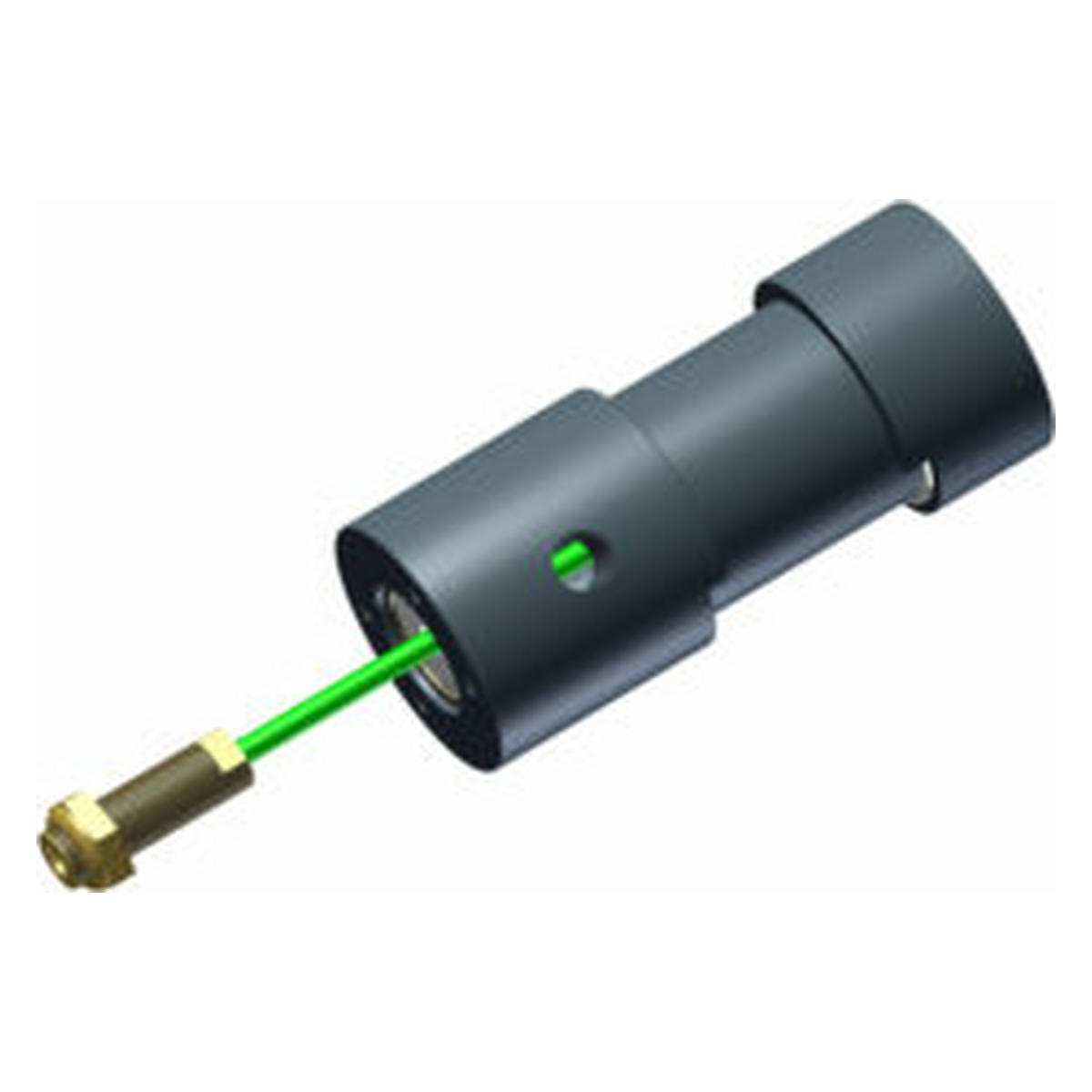

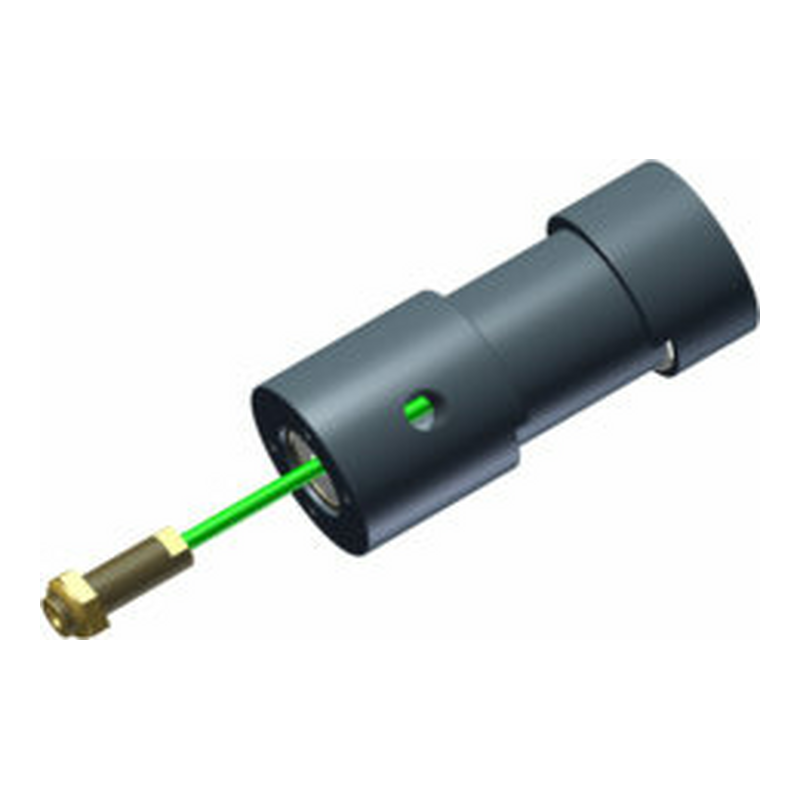

LTC1203 Linear Tension Cable Cylinder  NEW!


Attributes | Quote | Downloads LTC1203

1203-0035

Linear Tension Cable Cylinder with power stroke in one direction, 2.0 inch bore.

Operating temperature range: 20º to 140º F.

Attributes


Bore, in. 2.0
Options(s) None
Force@100 PSI, lbs. 309
Eff. Area, in.sq 3.09
Max. Stroke Length*, in. 160
Cable Wire Dia., in. 1/8
Cable Nylon O.D., in. 1/4
Strand Config 7 x 19
Tensile Strength, lbs. 2000
20% Rule, lbs. 400

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Downloads


Dimension Print (258KB PDF)
DWG Cad File (289KB DWG)
DXF Cad File (427KB DXF)
