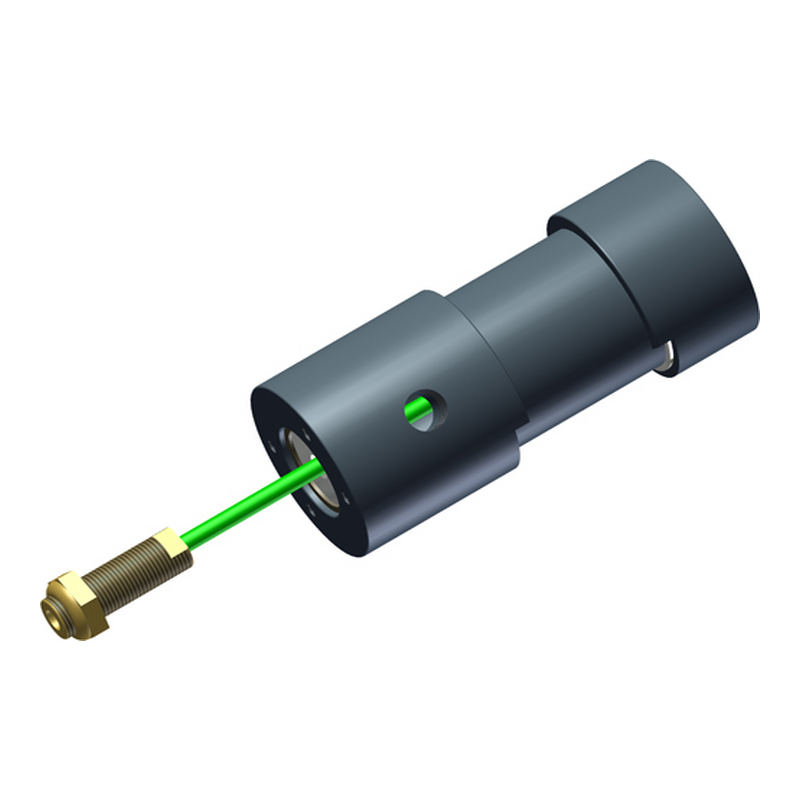

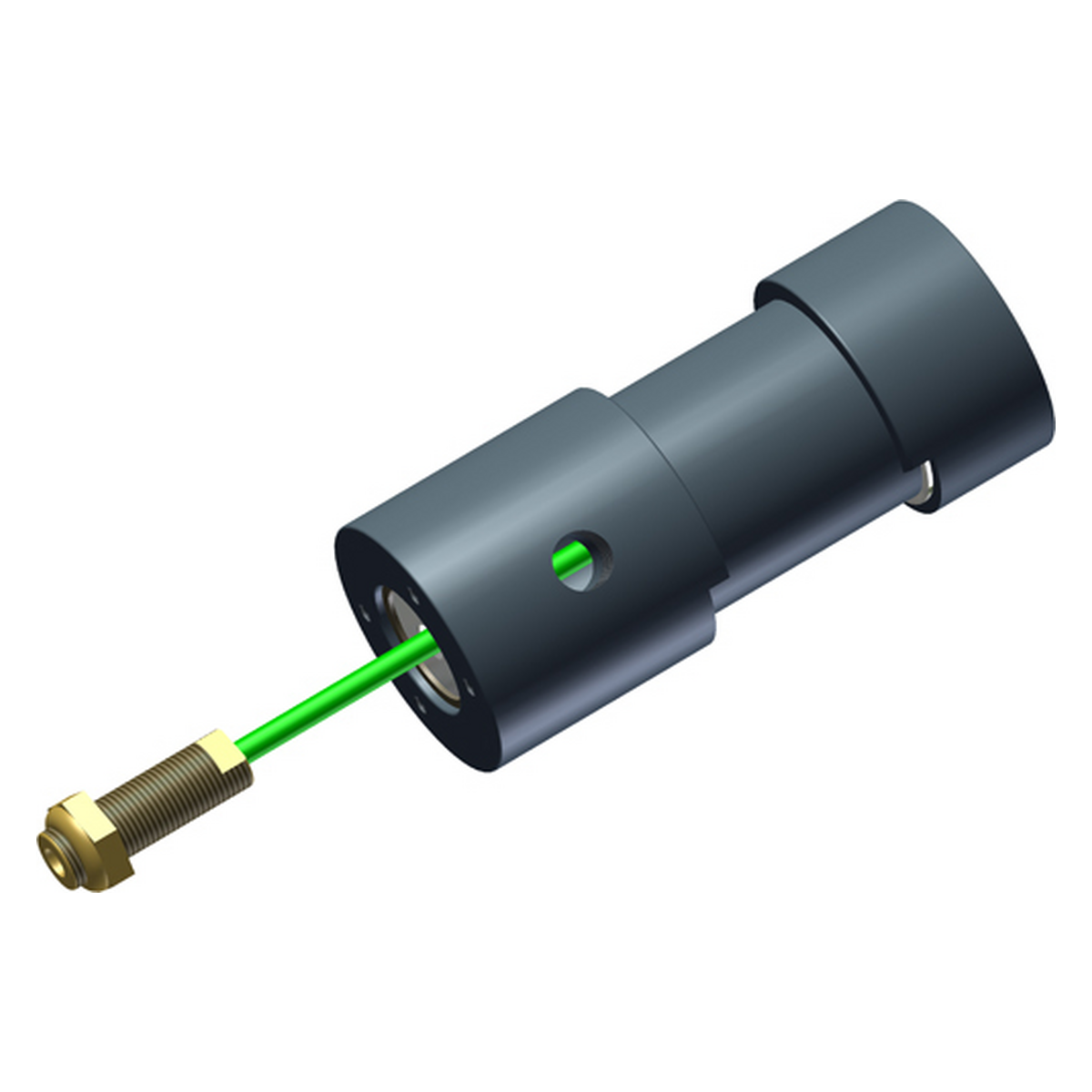

LTC1251 Linear Tension Cable Cylinder  NEW!

Attributes | Quote | Downloads LTC1251


Linear Tension Cable Cylinder with power stroke in one direction, 2.5 inch bore.

Operating temperature range: 20º to 140º F.


Bore, in. 2.5
Options(s) None
Force@100 PSI, lbs. 486
Eff. Area, in.sq 4.86
Max. Stroke Length*, in. 101
Cable Wire Dia., in. 1/8
Cable Nylon O.D., in. 1/4
Strand Config 7 x 19
Tensile Strength, lbs. 2000
20% Rule, lbs. 400

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote


Dimension View (345KB JPG)
DWG Cad File (297KB DWG)
DXF Cad File (462KB DXF)
