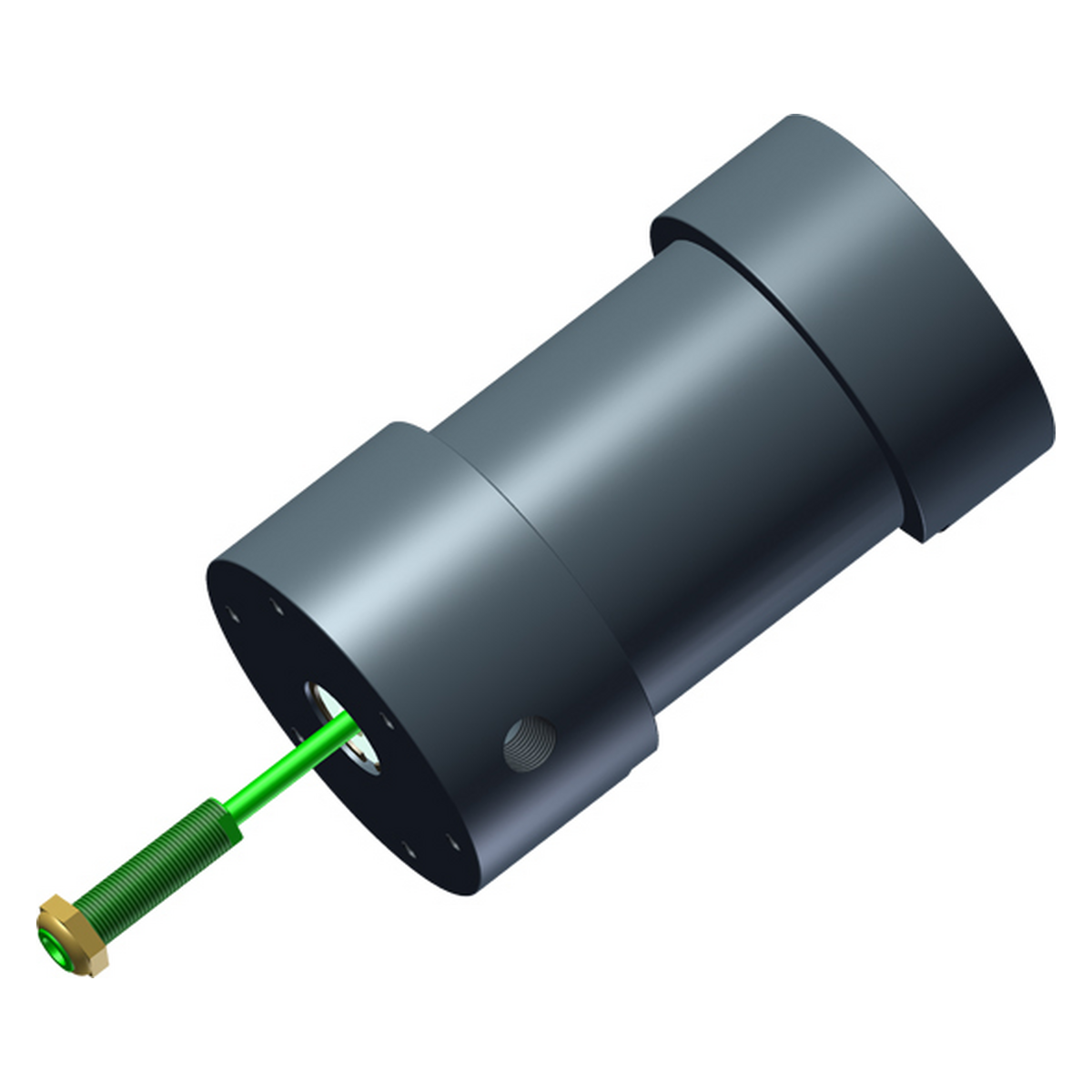

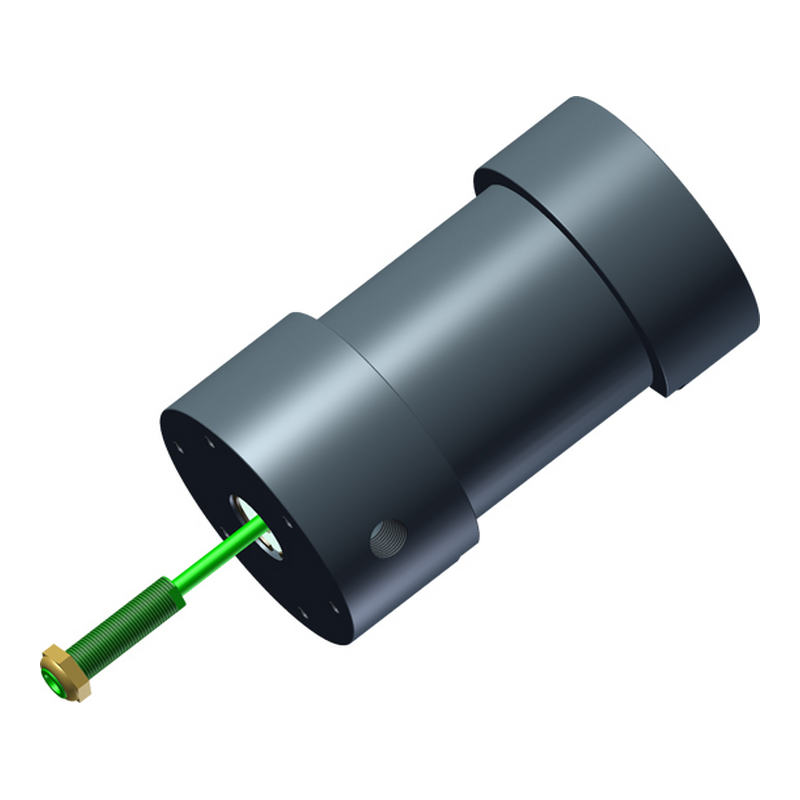

LTC1401 Linear Tension Cable Cylinder  NEW!


Attributes | Quote | Downloads LTC1401

1401-0080

Linear Tension Cable Cylinder with power stroke in one direction, 4.0 inch bore.

Operating temperature range: 20º to 140º F.

Attributes


Bore, in. 4.0
Options(s) None
Force@100 PSI, lbs. 1249
Eff. Area, in.sq 12.49
Max. Stroke Length*, in. 84
Cable Wire Dia., in. 3/16
Cable Nylon O.D., in. 5/16
Strand Config 7 x 19
Tensile Strength, lbs. 4200
20% Rule, lbs. 840

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Downloads


Dimension View (395KB JPG)
DWG Cad File (295KB DWG)
DXF Cad File (458KB DXF)
