PSAN032FM


Attributes | Quote | Options | Downloads | Related PSAN032FM

1892-0058

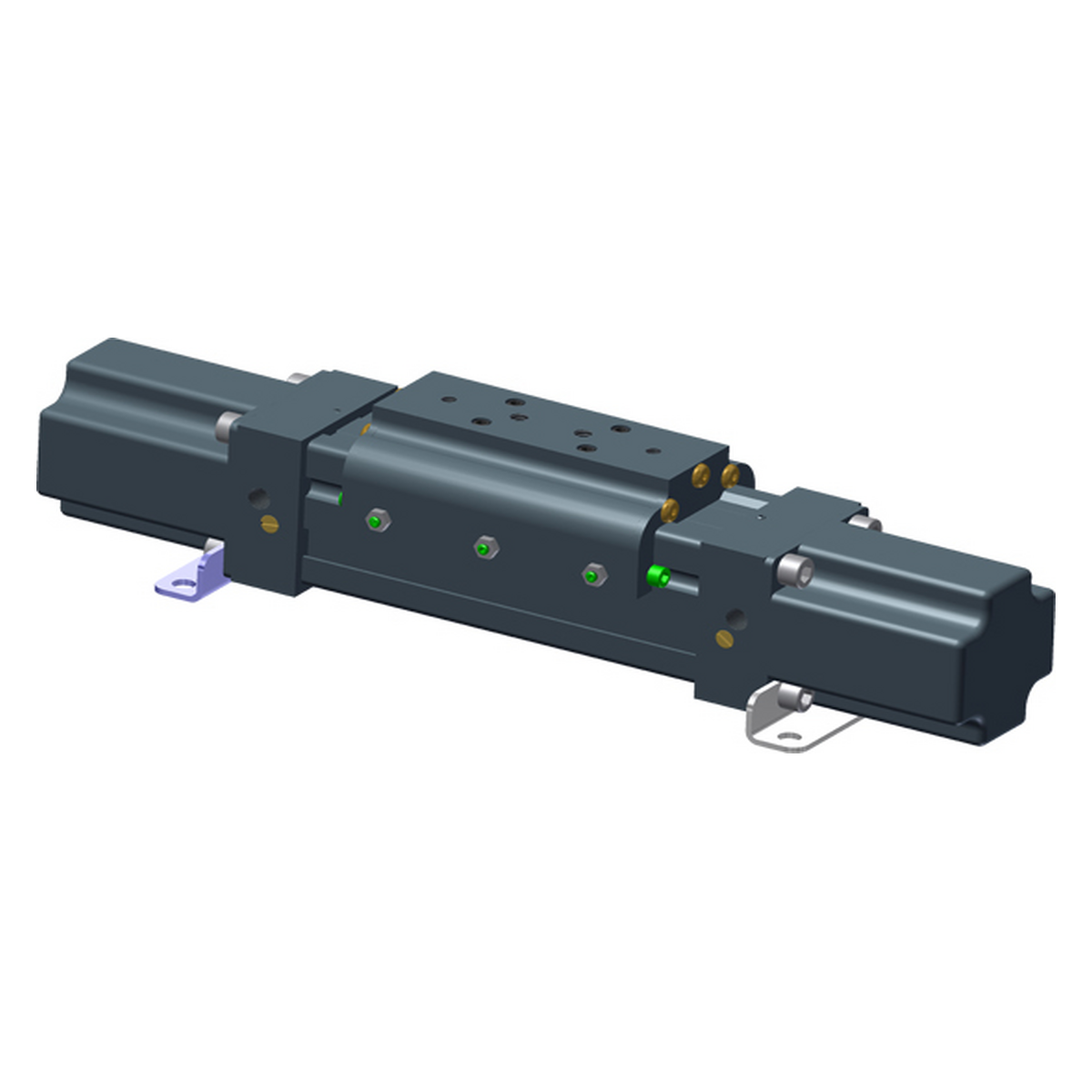

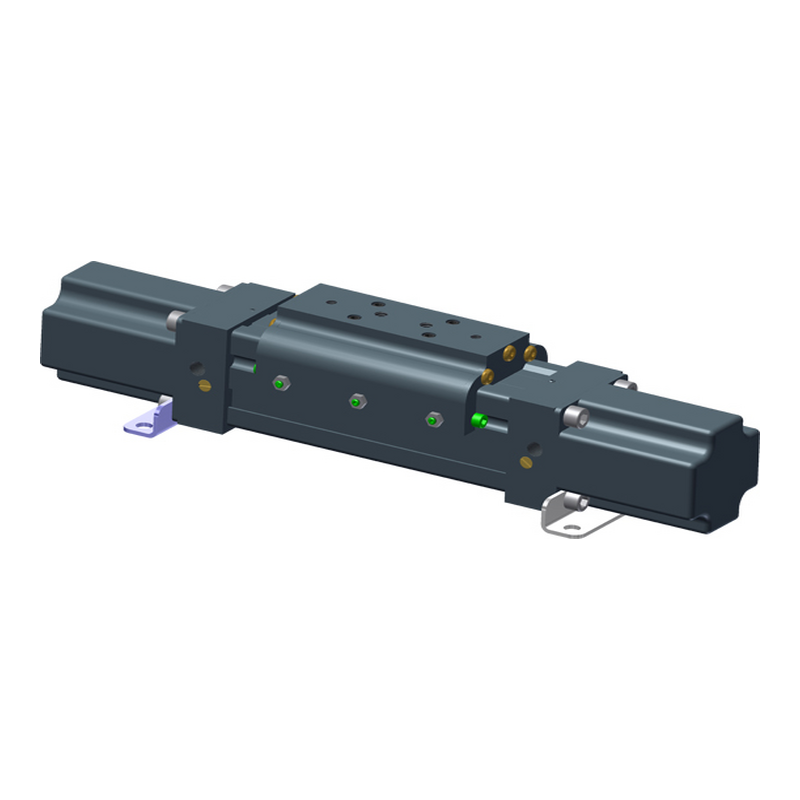

pneU-SA® Rodless Cylinders, double acting with power stroke in both directions, 1.25 in. (32mm) bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • Foot mounts
  • Nylatron® GS guide bearings - ideal for improved load bearing capability


Attributes


Bore, in. 1.25
Option(s) None
Force@100 PSI, lbs. 126
Eff. Area, in.2 1.26
Max. Stroke Length*, in. 158
Load, lbs. 120
Ms Radial Load, in. lbs. 75
M Long. Load, in. lbs. 290
Mv Axial Load, in. lbs. 130
Approx. Weight Base 6 lbs. + .35 lbs./in./Stk

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

Consult with our qualified personnel about your application. W.C. Branham manufactures pneU-SA cylinders since 1994.

Downloads


Dimension View (286KB JPEG)
Dimension Print (214KB PDF)
DXF Cad File (499KB DXF)
DWG Cad File (703KB DWG)
STEP Cad File (1.20MB STP)
Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1892-0059 PSAN032FMRSA 1.25 Switches N.O. 126 1.26
1892-0060 PSAN032FMTS 1.25 Tube Supports 126 1.26
1892-0061 PSAN032FMRSB 1.25 Switches N.C. 126 1.26
1892-0062 PSAN032FMRSATS 1.25 Switches N.O., Tube Supports 126 1.26
