PSA044


Attributes | Quote | Options | Downloads | Related PSA044

1895-0011

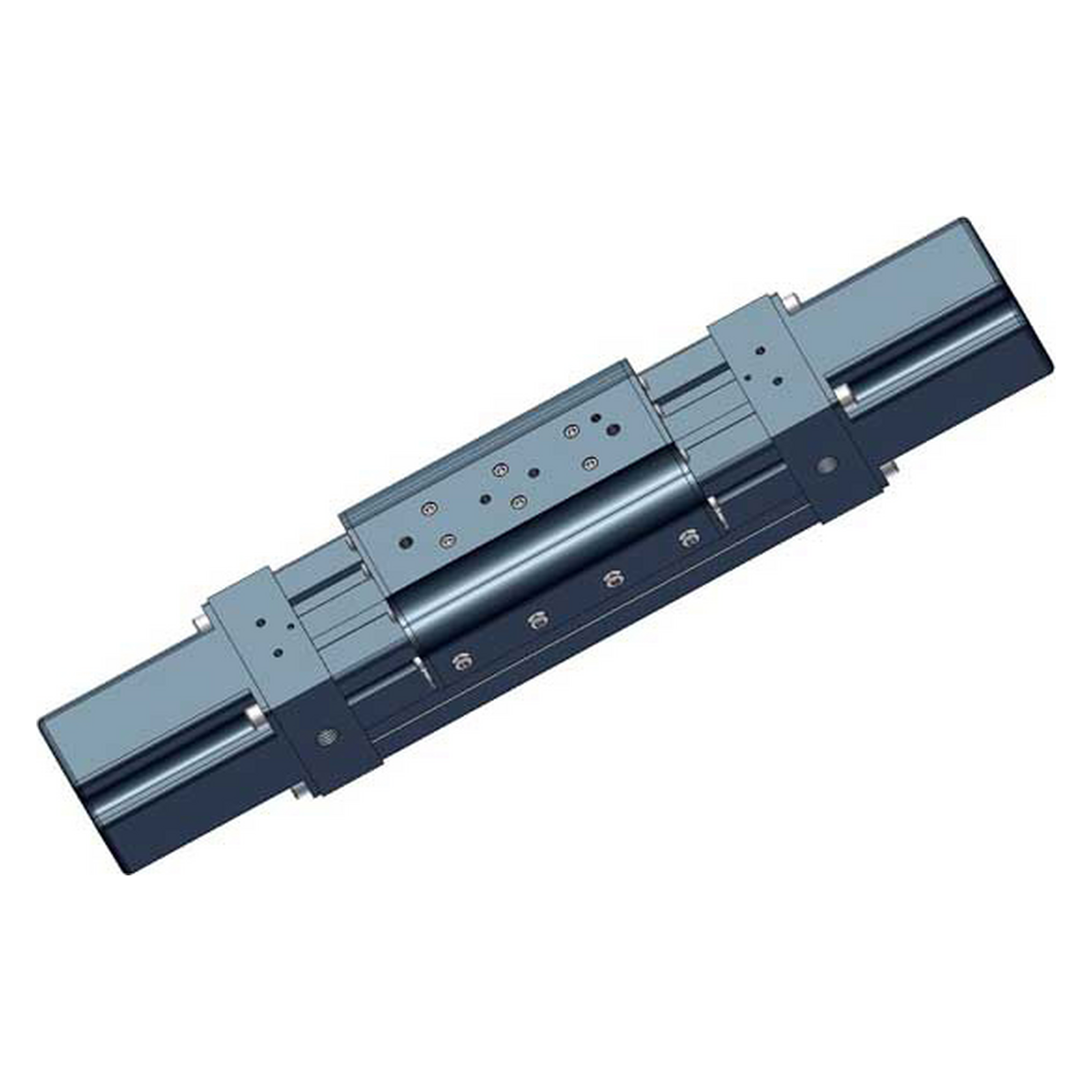

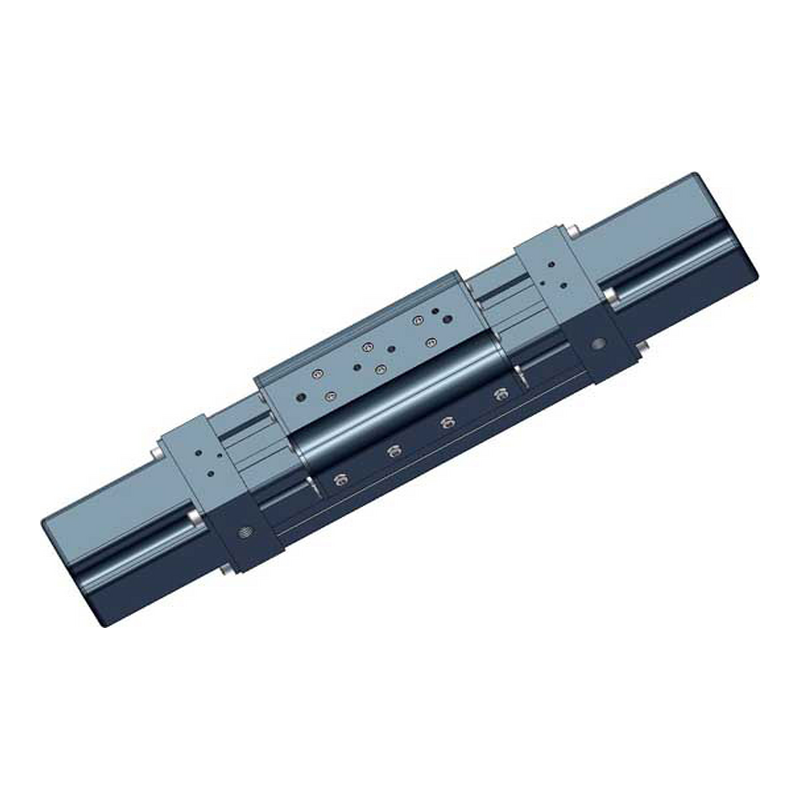

pneU-SA® Rodless Cylinders, double acting with power stroke in both directions, 1.75 in. (44mm) bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • Foot mounts
  • Nylatron® GS guide bearings - ideal for improved load bearing capability



Attributes


Bore, in. 1.75
Option(s) None
Force@100 PSI, lbs. 240
Eff. Area, in.2 2.40
Max. Stroke Length*, in. 158
Load, lbs. 180
Ms Radial Load, in. lbs. 275
M Long. Load, in. lbs. 500
Mv Axial Load, in. lbs. 200
Approx. Weight Base 9 lbs. + .55 lbs./in./Stk

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

Consult with our qualified personnel about your application. W.C. Branham manufactures pneU-SA® cylinders since 1994.

Downloads


DWG CAD File (204KB ZIP)
DXF CAD File (191KB ZIP)
STEP CAD File (359KB ZIP)
Dimensional View (175KB JPG)
Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1895-0012 PSA044RSA 1.75 Switches N.O. 240 2.40
1895-0013 PSA044TS 1.75 Tube Supports 240 2.40
1895-0020 PSA044RSAPV 1.75 Switches N.O., Pivot Bridge 240 2.40
1895-0021 PSA044PV 1.75 Pivot Bridge 240 2.40
1895-0030 PSA044RSB 1.75 Switches N.C. 240 2.40
1895-0031 PSA044RSATS 1.75 Switches N.O., Tube Supports 240 2.40
