PSA044RSAPV


Attributes | Quote | Options | Related PSA044RSAPV

1895-0020

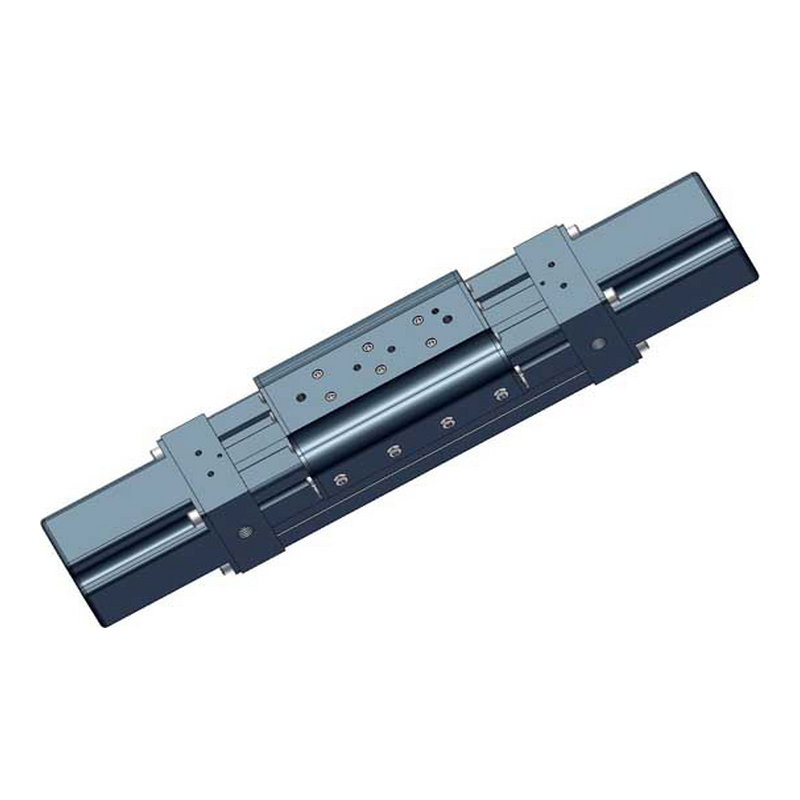

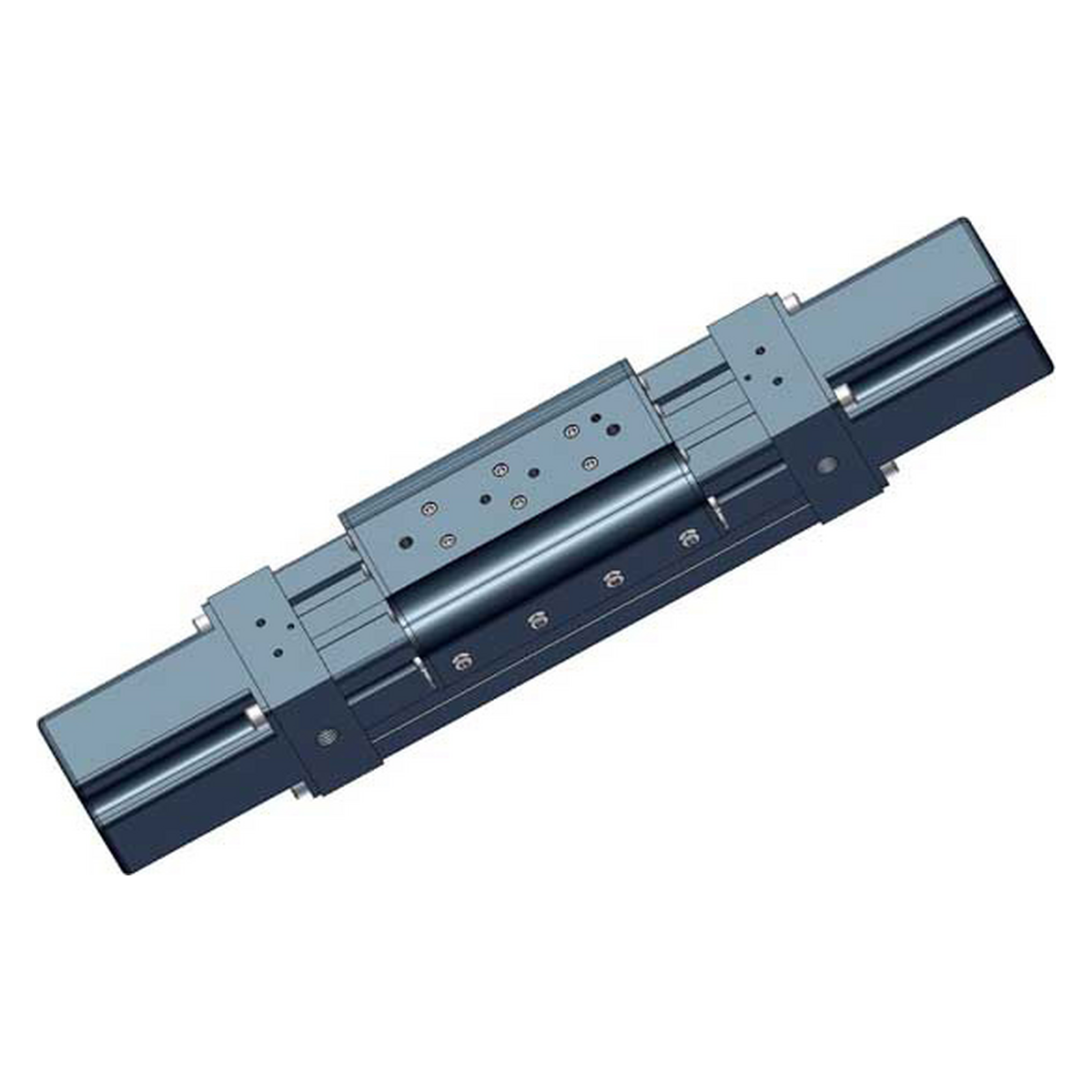

pneU-SA® Rodless Cylinders, double acting with power stroke in both directions, 1.75 in. (44mm) bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • Foot mounts
  • Nylatron® GS guide bearings - ideal for improved load bearing capability



Attributes


Bore, in. 1.75
Option(s) Switches N.O., Pivot Bridge
Force@100 PSI, lbs. 240
Eff. Area, in.2 2.40
Max. Stroke Length*, in. 158
Load, lbs. 180
Ms Radial Load, in. lbs. 275
M Long. Load, in. lbs. 500
Mv Axial Load, in. lbs. 200
Approx. Weight Base 9 lbs. + .55 lbs./in./Stk

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

Consult with our qualified personnel about your application. W.C. Branham manufactures pneU-SA® cylinders since 1994.

Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1895-0011 PSA044 1.75 None 240 2.40
1895-0012 PSA044RSA 1.75 Switches N.O. 240 2.40
1895-0013 PSA044TS 1.75 Tube Supports 240 2.40
1895-0021 PSA044PV 1.75 Pivot Bridge 240 2.40
1895-0030 PSA044RSB 1.75 Switches N.C. 240 2.40
1895-0031 PSA044RSATS 1.75 Switches N.O., Tube Supports 240 2.40
