PSAN025


Attributes | Quote | Options | Downloads | Related PSAN025

1898-0003

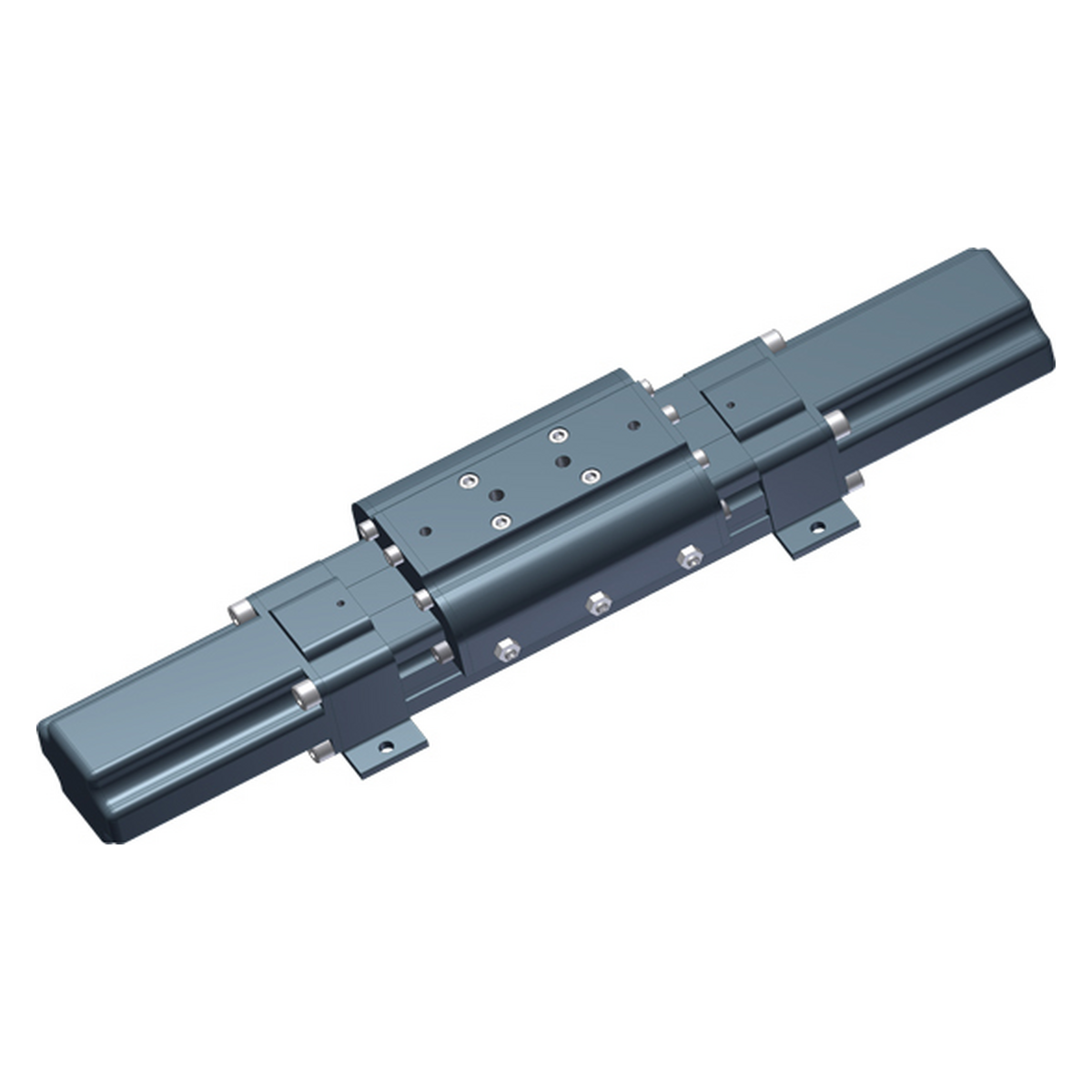

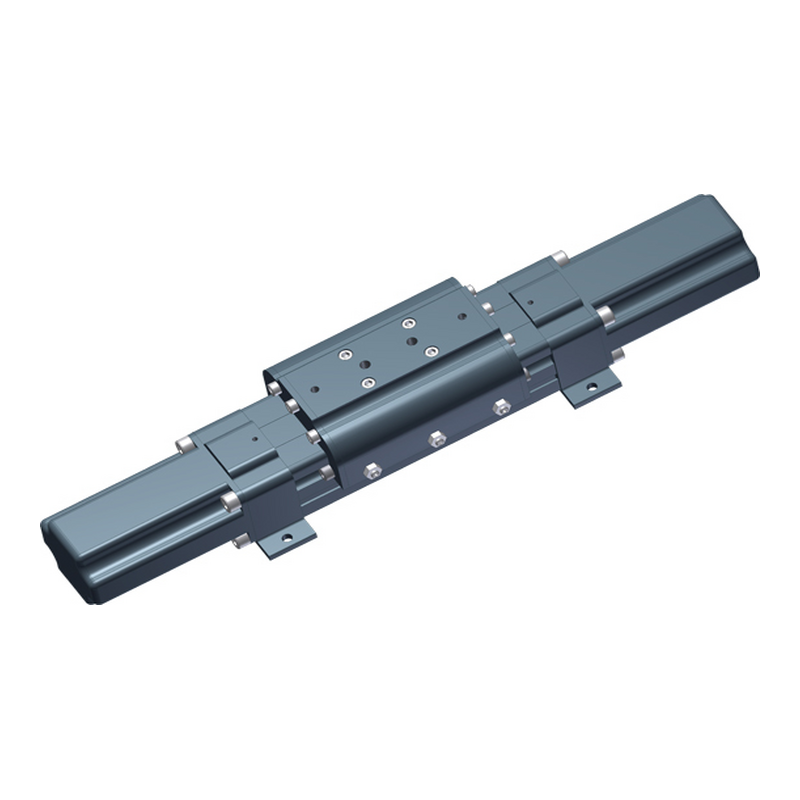

pneU-SA® Rodless Cylinders, double acting with power stroke in both directions, 1.0 in. (25mm) bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • Integral foot mounts
  • Nylatron® GS guide bearings - ideal for improved load bearing capability

Attributes


Bore, in. 1.0
Option(s) None
Force@100 PSI, lbs. 60
Eff. Area, in.2 .60
Max. Stroke Length*, in. 72
Load, lbs. 60
Ms Radial Load, in. lbs. 55
M Long. Load, in. lbs. 100
Mv Axial Load, in. lbs. 30

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

Consult with our qualified personnel about your application. W.C. Branham manufactures pneU-SA® cylinders since 1994.

Downloads


Dimension View (253KB JPG)
Dimension Print (239KB PDF)
DWG Cad File (287KB DWG)
DXF Cad File (455KB DXF)
STEP Cad File (1.38MB STP)
PSAN025 Data Sheet (323KB PDF)
Maintenance Guide (65KB PDF)
Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1898-0020 PSAN025RSA 1.0 Switches N.O. 60 .60
1898-0021 PSAN025RSB 1.0 Switches N.C. 60 .60
