Attributes | Quote | Options | Downloads | Related PSAN025RSB

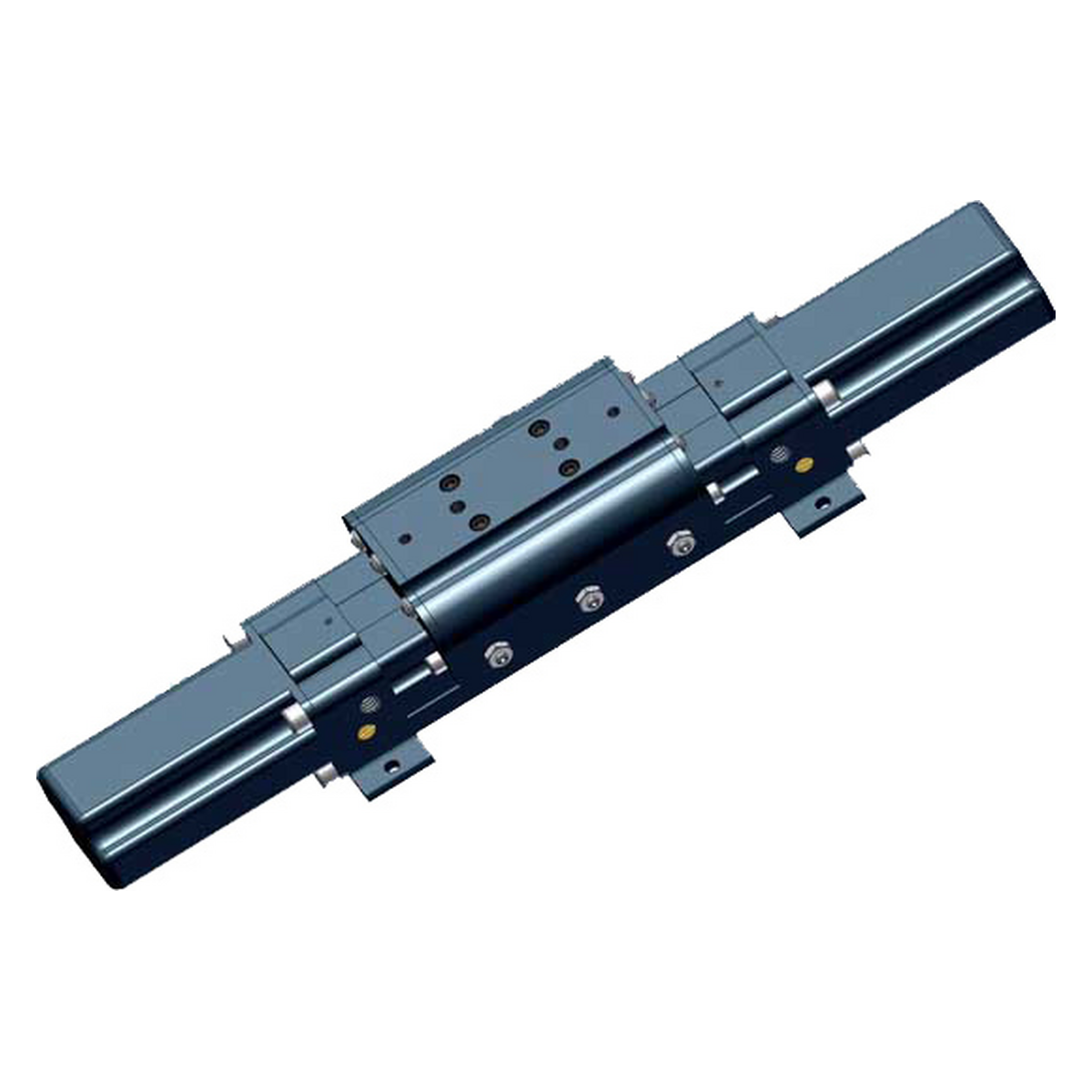

pneU-SA® Rodless Cylinders, double acting with power stroke in both directions, 1.0 in. (25mm) bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • Integral foot mounts
  • Nylatron® GS guide bearings - ideal for improved load bearing capability


Bore, in. 1.0
Option(s) Switches N.C.
Force@100 PSI, lbs. 60
Eff. Area, in.2 .60
Max. Stroke Length*, in. 72
Load, lbs. 60
Ms Radial Load, in. lbs. 55
M Long. Load, in. lbs. 100
Mv Axial Load, in. lbs. 30

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote


Consult with our qualified personnel about your application. W.C. Branham manufactures pneU-SA® cylinders since 1994.


Maintenance Guide (65KB PDF)
Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1898-0003 PSAN025 1.0 None 60 .60
1898-0020 PSAN025RSA 1.0 Switches N.O. 60 .60
