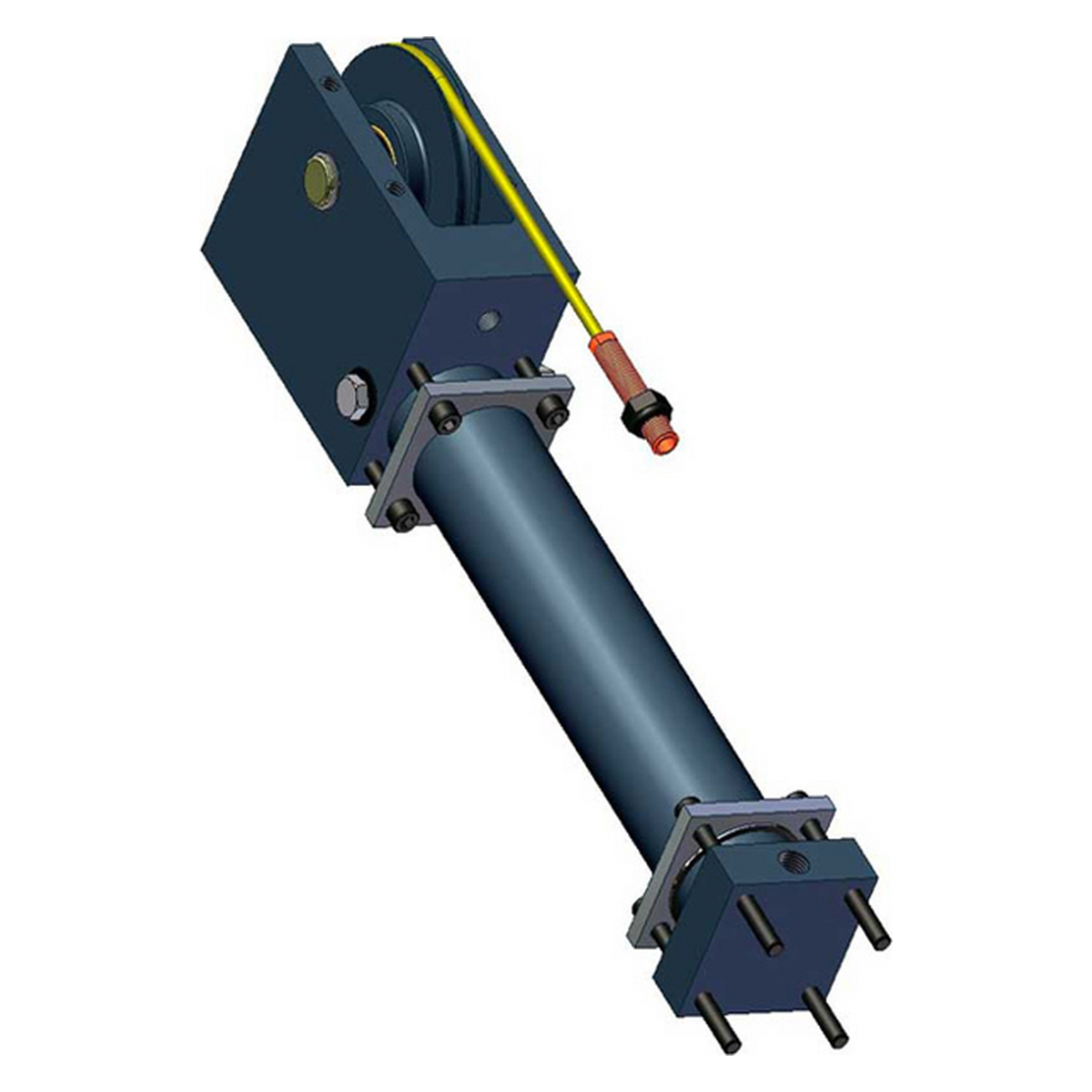

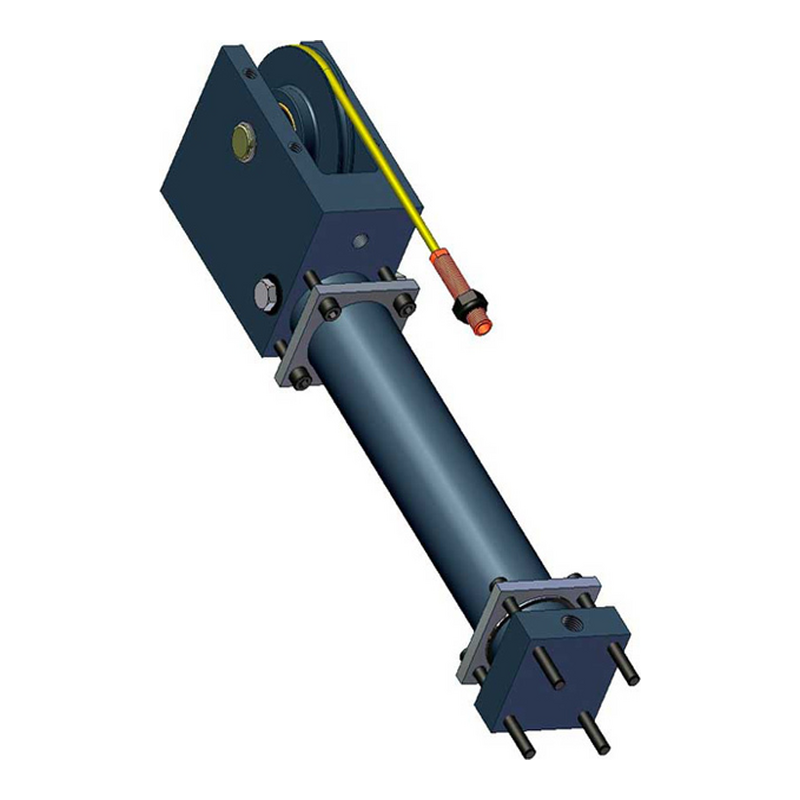

1151SAM Single Acting Cable Cylinder


Attributes | Quote | Options | Related 1151SAM

1151-0045

Single Acting Cable Cylinder with power stroke in one direction, 1.5 inch bore.

Operating temperature range: 20º to 140º F.

Attributes


Bore, in. 1.5
Option(s) Piston Magnet
Force@100 PSI, lbs. 174
Eff. Area, in.2 1.74
Max. Stroke Length*, in. 126
Cable Wire Dia., in. 3/32
Cable Nylon O.D., in. 3/16
Strand Config 7 x 19
Tensile Strength, lbs. 920
20% Rule, lbs. 54

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

*Stroke lengths greater than maximum shown are possible. Consult with our qualified personnel about your application.

Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1151-0010 1151SA 1.5 None 174 1.74
1151-0012 1151SARS 1.5 Reed Switches 174 1.74
