1203SARS Single Acting Cable Cylinder


Attributes | Quote | Options | Related 1203SARS

1203-0032

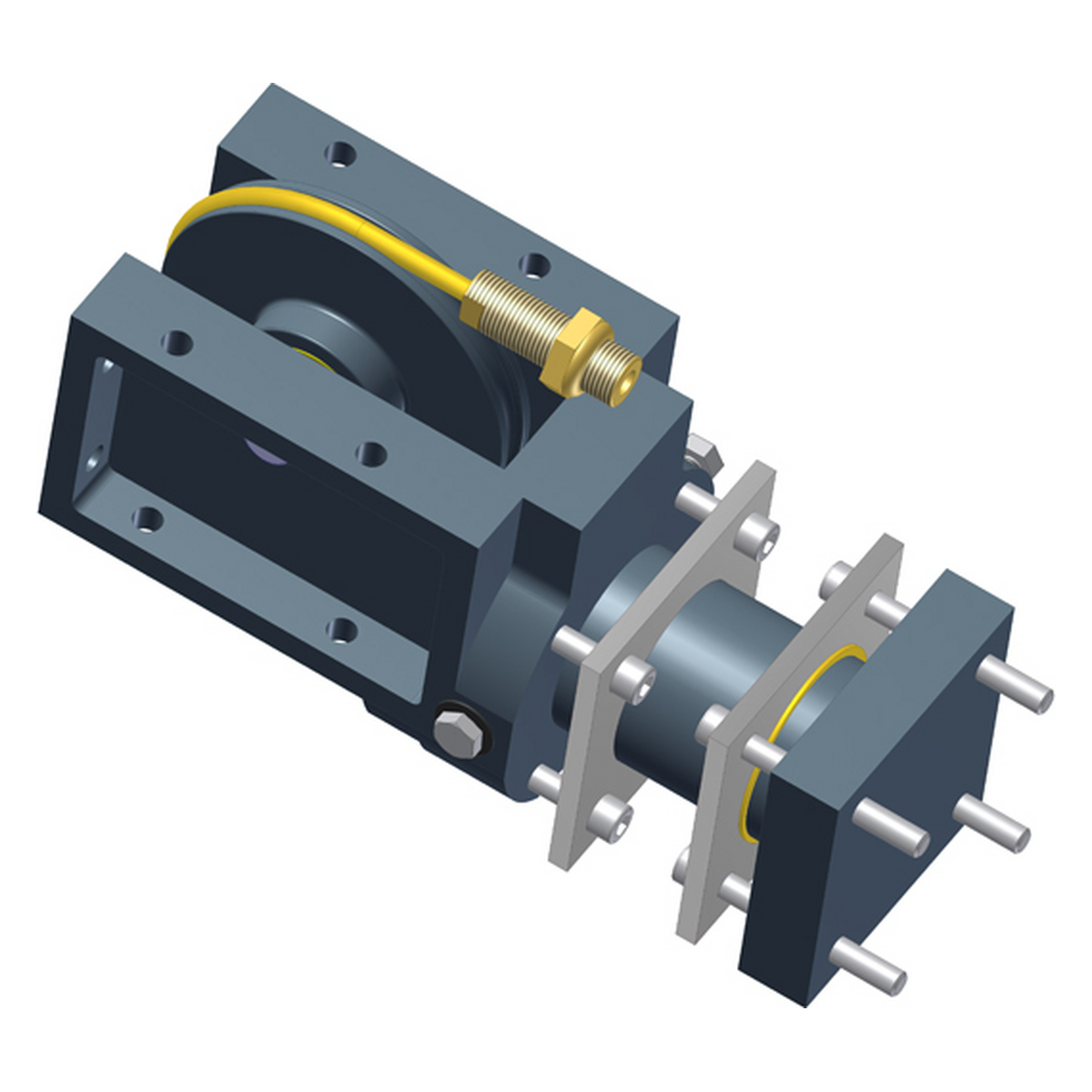

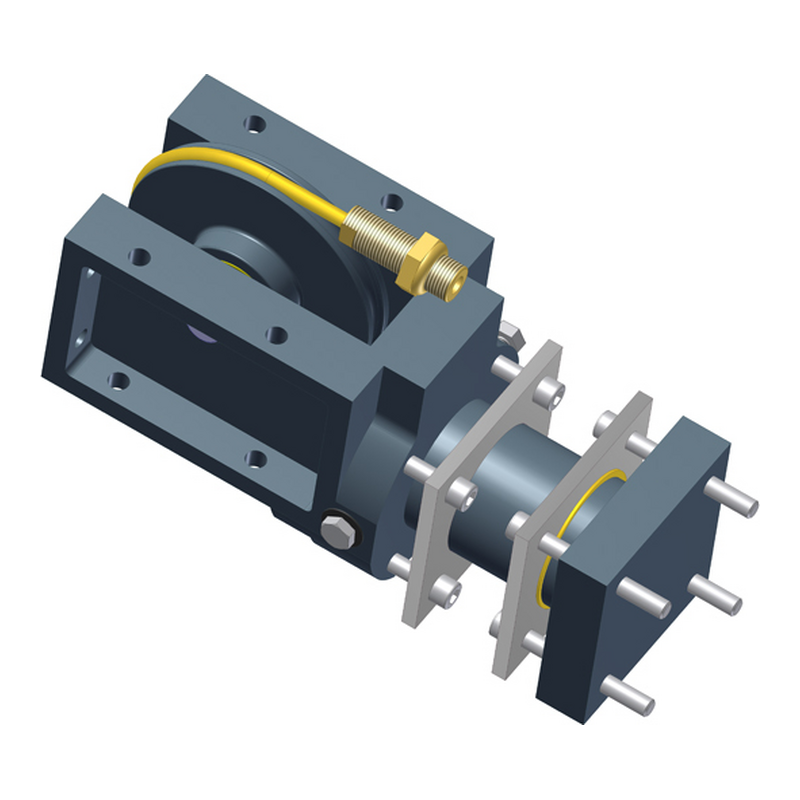

Single Acting Cable Cylinder with power stroke in one direction, 2.0 inch bore.

Operating temperature range: 20º to 140º F.

Attributes


Bore, in. 2.0
Option(s) Reed Switches
Force@100 PSI, lbs. 309
Eff. Area, in.2 3.09
Max. Stroke Length*, in. 160
Cable Wire Dia., in. 1/8
Cable Nylon O.D., in. 1/4
Strand Config 7 x 19
Tensile Strength, lbs. 2000
20% Rule, lbs. 400

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

*Stroke lengths greater than maximum shown are possible. Consult with our qualified personnel about your application.

Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1203-0007 1203SA 2.0 None 309 3.09
1203-0031 1203SAM 2.0 Piston Magnet 309 3.09
