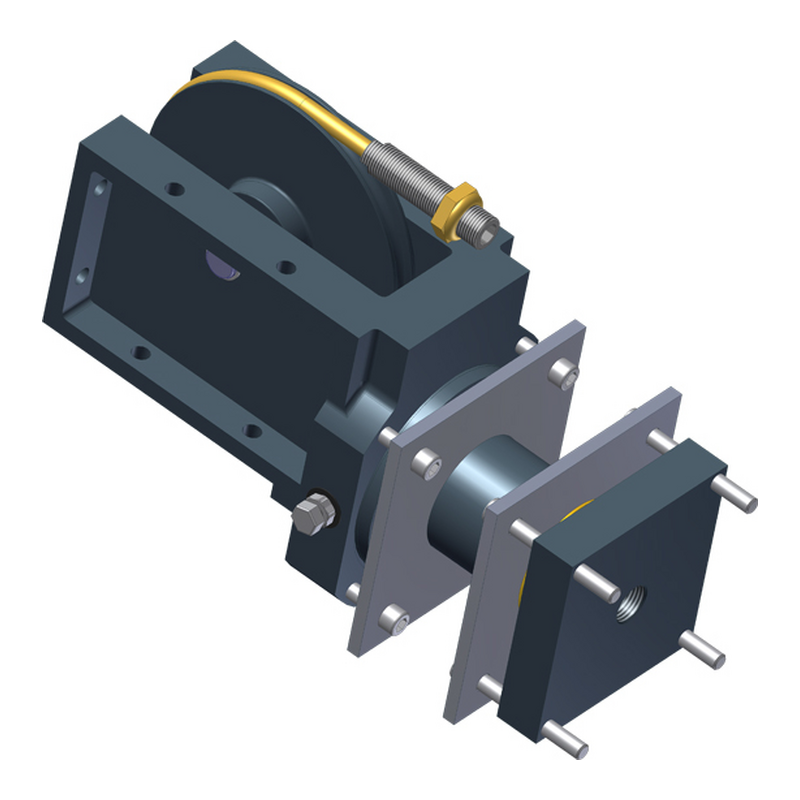

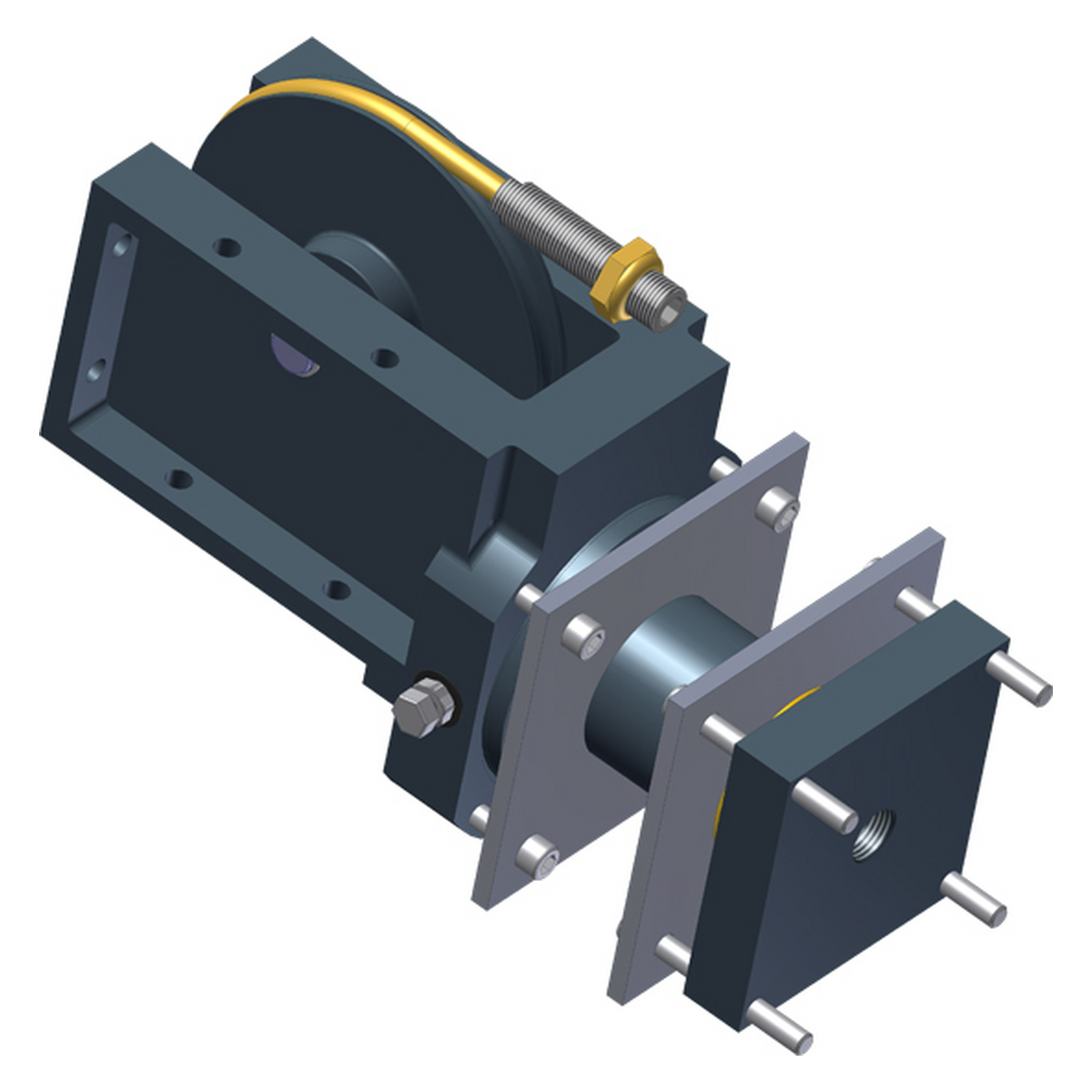

1206SA Single Acting Cable Cylinder


Attributes | Quote | Options | Downloads | Related 1206SA

1206-0016

Single Acting Cable Cylinder with power stroke in one direction, 2.0 inch bore heavy duty.

Operating temperature range: 20º to 140º F.

Attributes


Bore, in. 2.0
Option(s) 500 PSI Heavy Duty
Force@100 PSI, lbs. 309
Eff. Area, in.2 3.09
Max. Stroke Length*, in. 280
Cable Wire Dia., in. 3/16
Cable Nylon O.D., in. 5/16
Strand Config 7 x 19
Tensile Strength, lbs. 4200
20% Rule, lbs. 840

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

*Stroke lengths greater than maximum shown are possible. Consult with our qualified personnel about your application.

Downloads


Dimension View (325KB JPG)
Dimension Print (415KB PDF)
Sizing/Application Data (385KB PDF)
DWG Cad File (223KB DWG)
DXF Cad File (689KB DXF)
STEP Cad File (789KB STP)
Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1206-0013 1206SAM 2.0 500 PSI, Piston Magnet 309 3.09
1206-0014 1206SARS 2.0 500 PSI, Reed Switches 309 3.09
