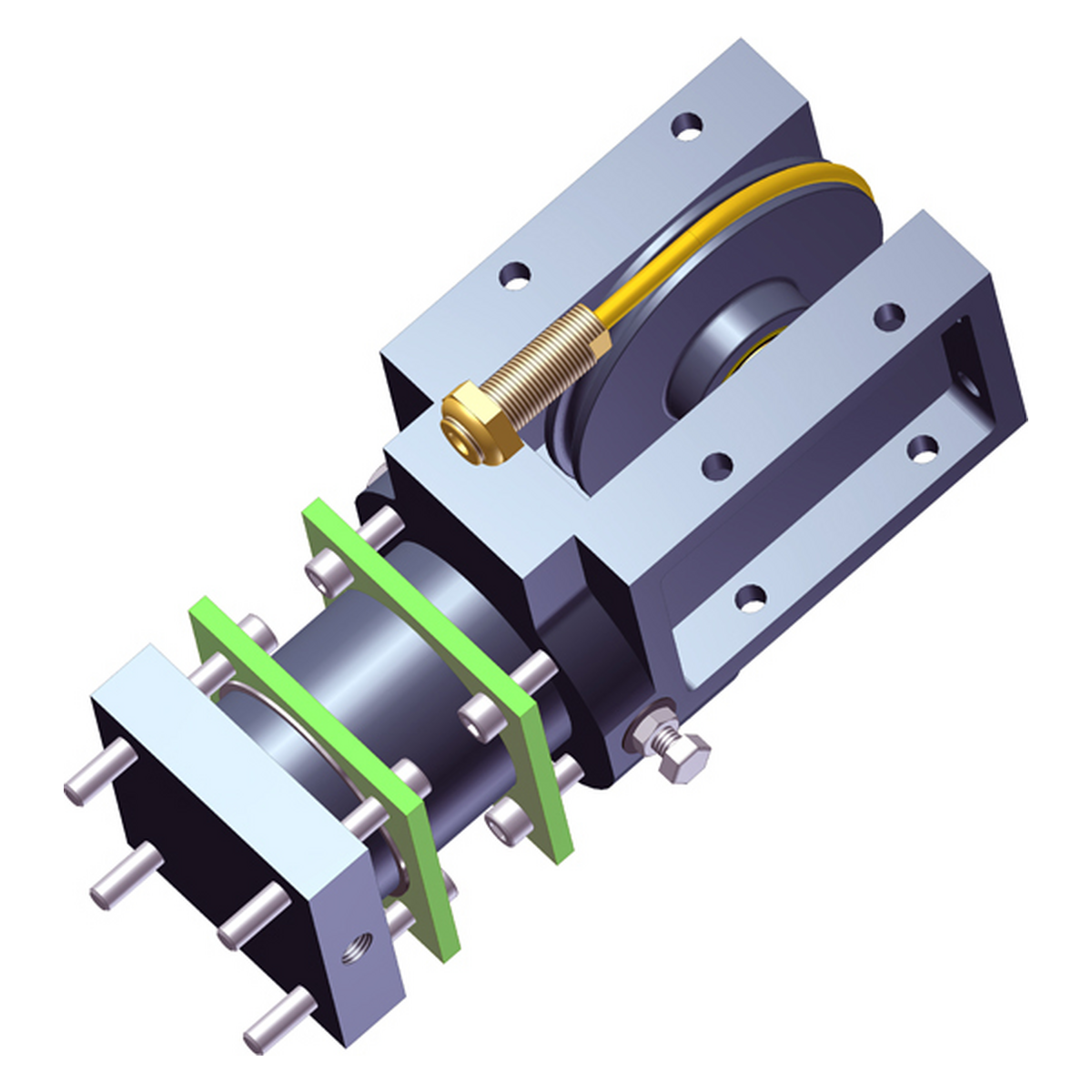

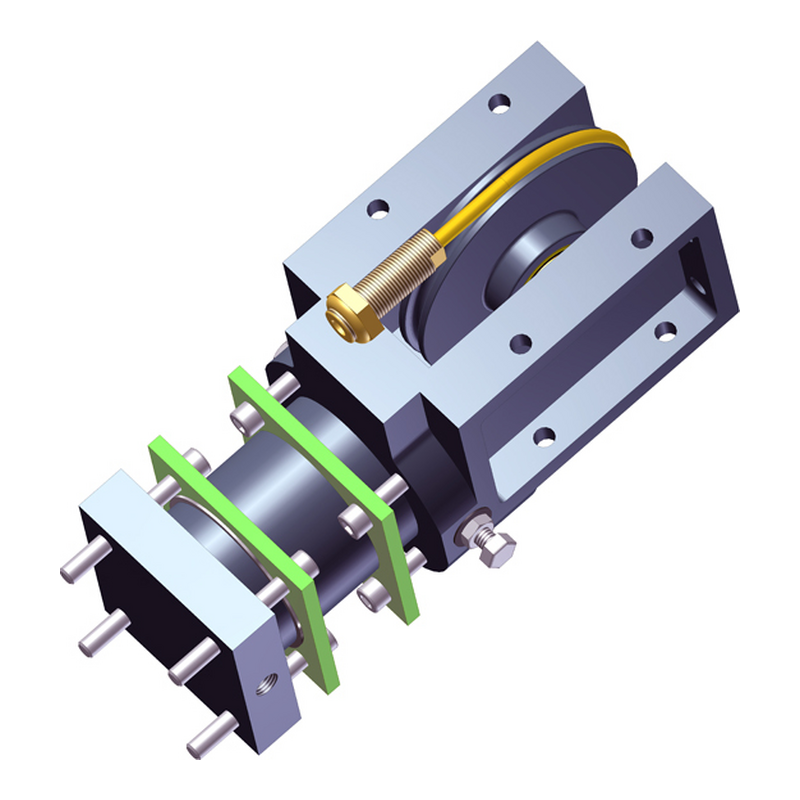

1251SA Single Acting Cable Cylinder


Attributes | Quote | Options | Downloads | Related 1251SA

1251-0001

Single Acting Cable Cylinder with power stroke in one direction, 2.5 inch bore.

Operating temperature range: 20º to 140º F.

Attributes


Bore, in. 2.5
Option(s) None
Force@100 PSI, lbs. 486
Eff. Area, in.2 4.86
Max. Stroke Length*, in. 101
Cable Wire Dia., in. 1/8
Cable Nylon O.D., in. 1/4
Strand Config 7 x 19
Tensile Strength, lbs. 2000
20% Rule, lbs. 400

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

*Stroke lengths greater than maximum shown are possible. Consult with our qualified personnel about your application.

Downloads


Dimension View (301KB JPG)
Dimension Print (356KB PDF)
Sizing/Application Data (385KB PDF)
DWG Cad File (204KB DWG)
STEP Cad File (796KB STP)
DXF Cad File (606KB DXF)
Maint & Repair Guide (231KB PDF)
Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1251-0044 1251SAM 2.5 Piston Magnet 486 4.86
1251-0045 1251SARS 2.5 Reed Switches 486 4.86
