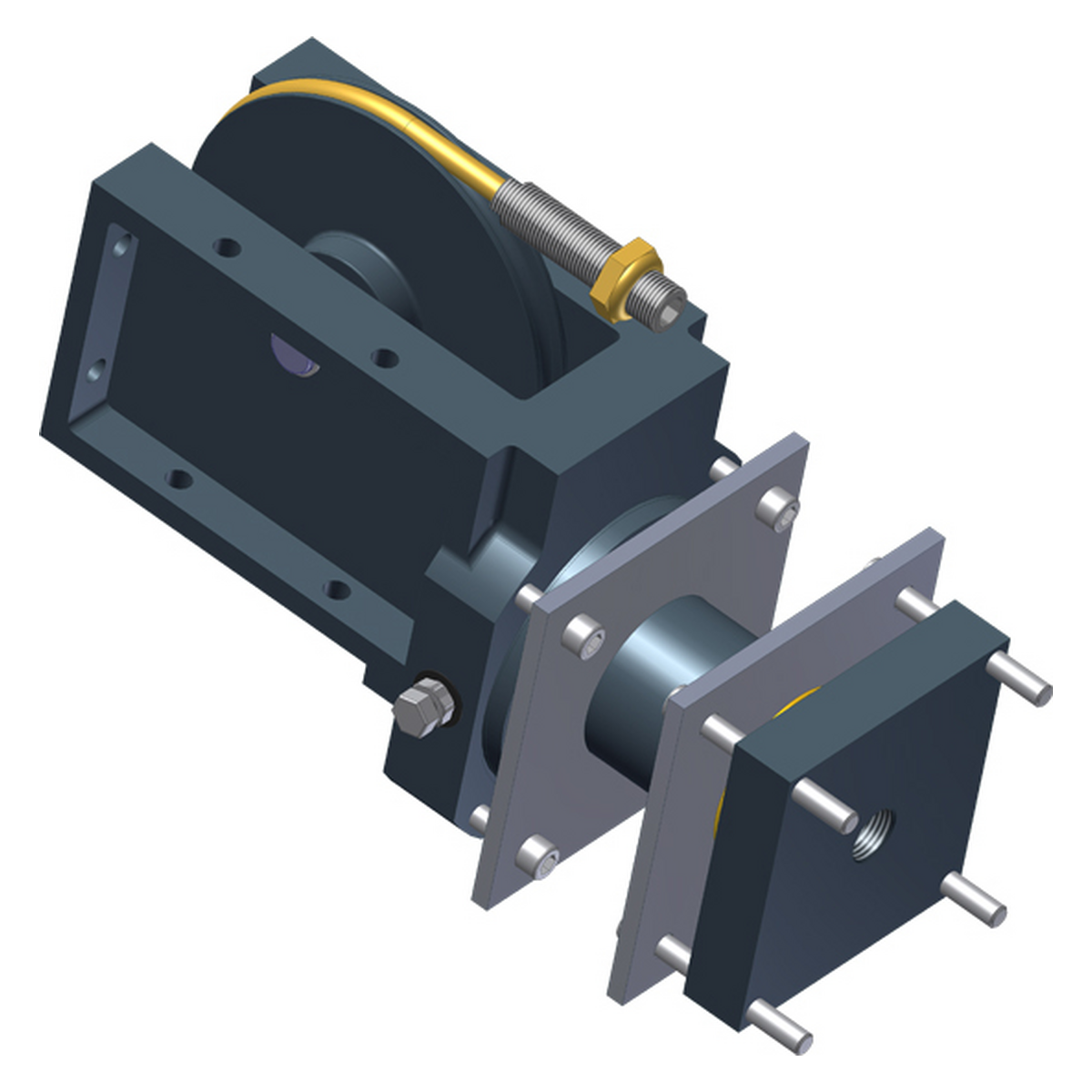

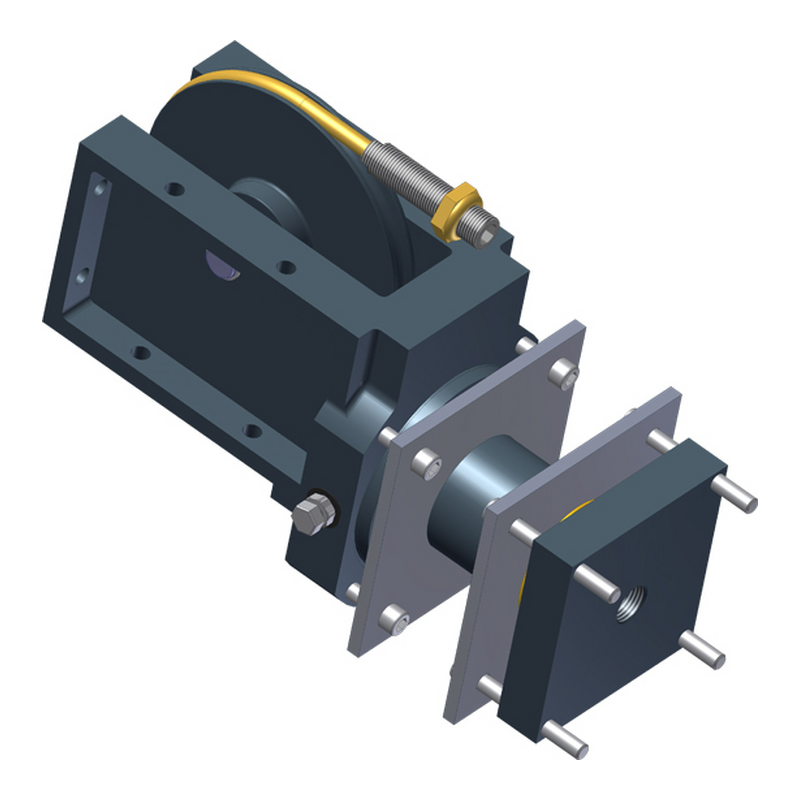

1251SAM Single Acting Cable Cylinder

Attributes | Quote | Options | Related 1251SAM


Single Acting Cable Cylinder with power stroke in one direction, 2.5 inch bore.

Operating temperature range: 20º to 140º F.


Bore, in. 2.5
Option(s) Piston Magnet
Force@100 PSI, lbs. 486
Eff. Area, in.2 4.86
Max. Stroke Length*, in. 101
Cable Wire Dia., in. 1/8
Cable Nylon O.D., in. 1/4
Strand Config 7 x 19
Tensile Strength, lbs. 2000
20% Rule, lbs. 400

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote


*Stroke lengths greater than maximum shown are possible. Consult with our qualified personnel about your application.

Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1251-0001 1251SA 2.5 None 486 4.86
1251-0045 1251SARS 2.5 Reed Switches 486 4.86
