1251-0045
Model: 1251SARS

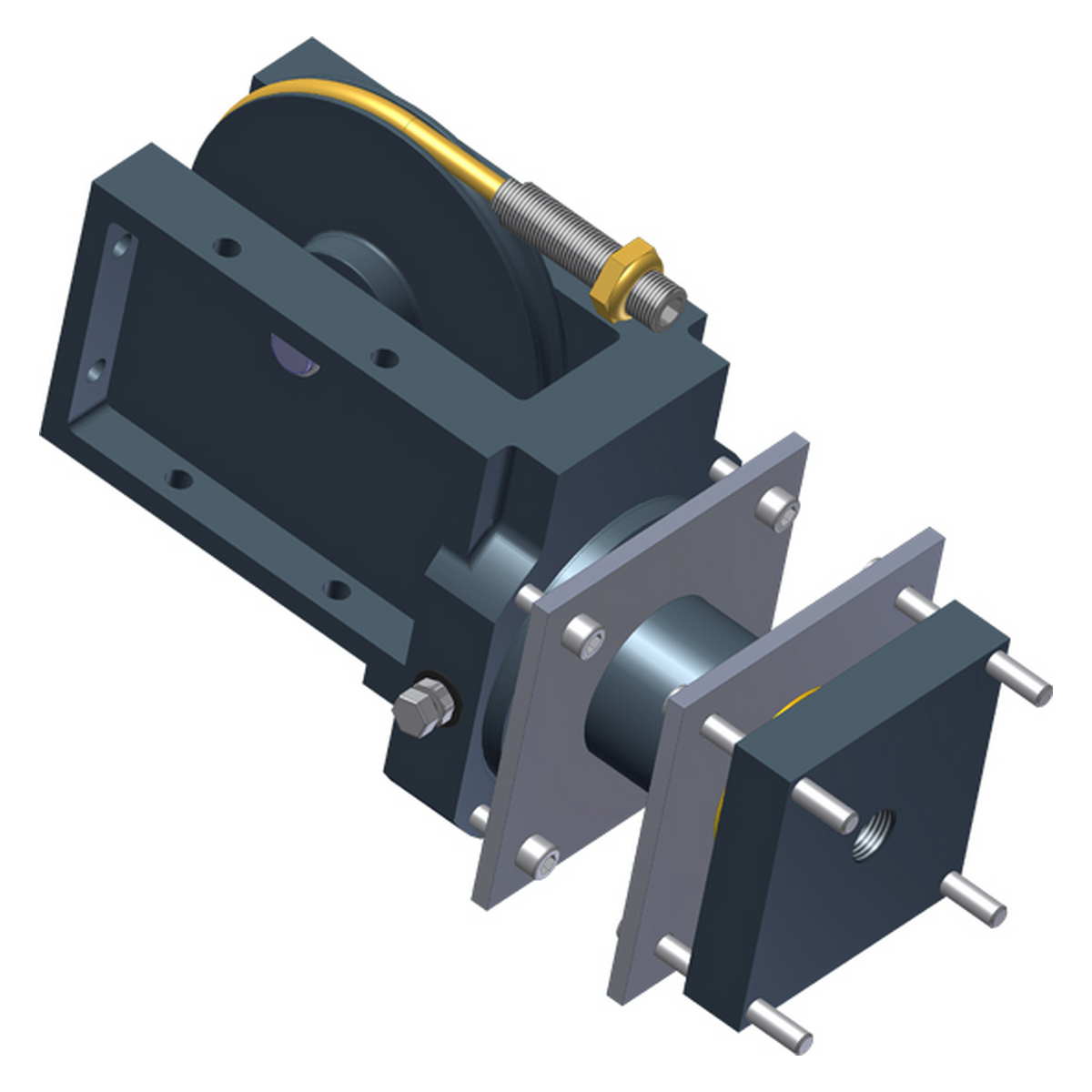

Single Acting Cable Cylinder with power stroke in one direction, 2.5 inch bore.
Operating temperature range: 20º to 140º F.
Attributes
| Model # | 1251SARS |
| 20% Rule, lbs. | 400 |
| Bore, in. | 2.5 |
| Cable Nylon O.D., in. | 1/4 |
| Cable Wire Dia., in. | 1/8 |
| Eff. Area, in.sq | 4.86 |
| Force@100 PSI, lbs. | 486 |
| Max. Stroke Length, in. | 101 |
| Option(s) | Reed Switches |
| Strand Config | 7 x 19 |
| Tensile Strength, lbs. | 2000 |
