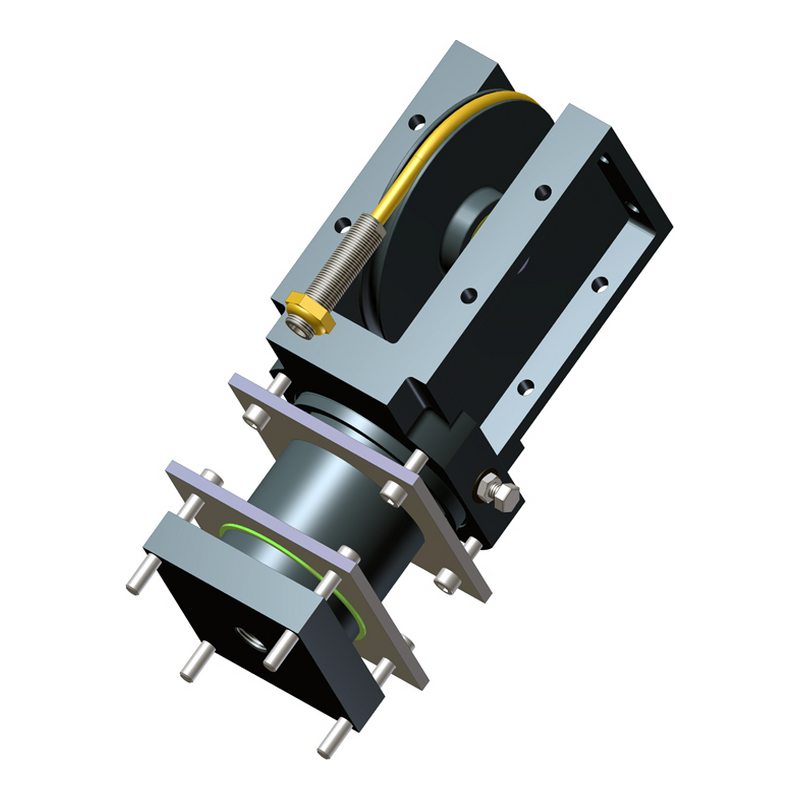

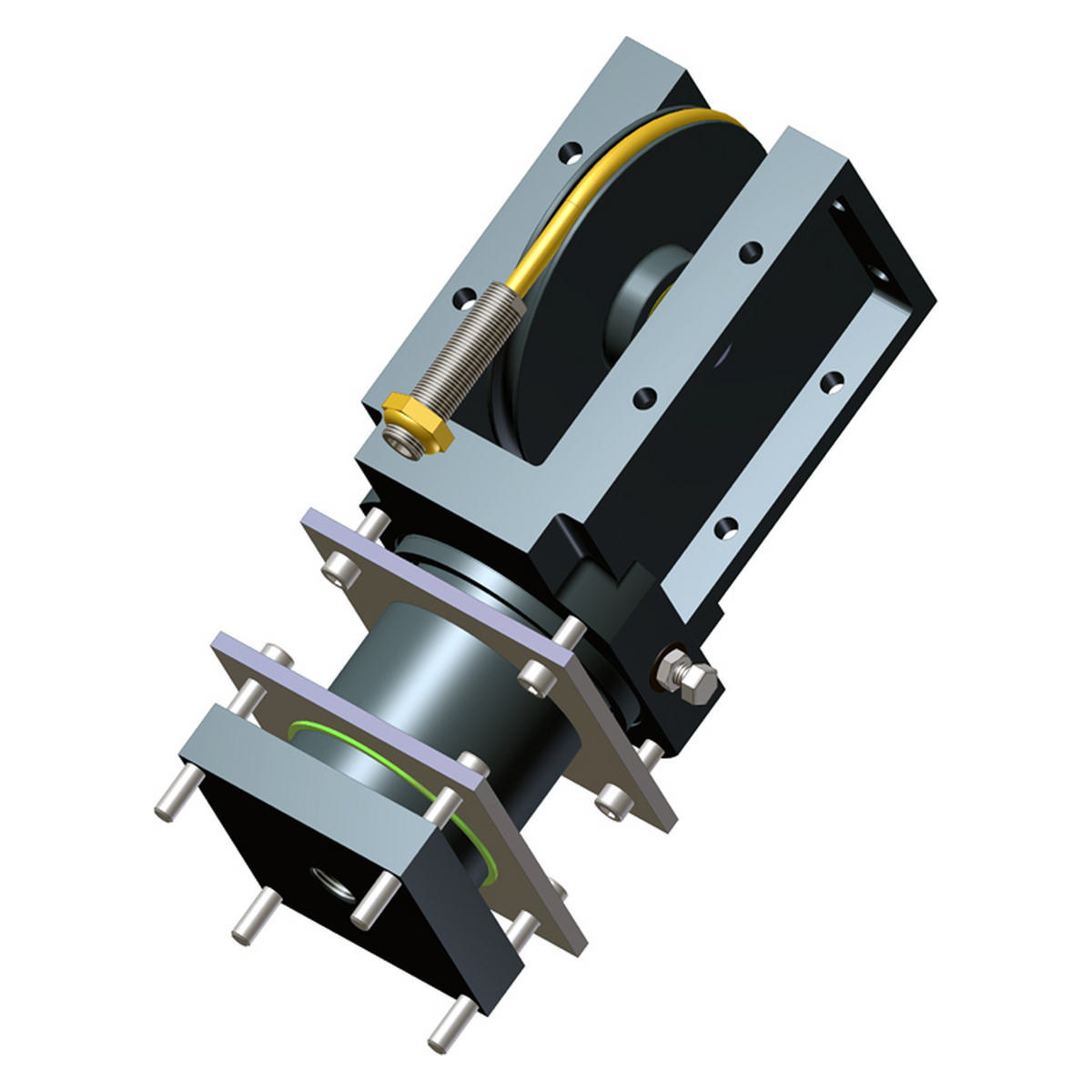

1301SA Single Acting Cable Cylinder


Attributes | Quote | Options | Downloads | Related 1301SA

1301-0001

Single Acting Cable Cylinder with power stroke in one direction, 3.0 inch bore.

Operating temperature range: 20º to 140º F.

Attributes


Bore, in. 3.0
Option(s) None
Force@100 PSI, lbs. 699
Eff. Area, in.2 6.99
Max. Stroke Length*, in. 151
Cable Wire Dia., in. 3/16
Cable Nylon O.D., in. 5/16
Strand Config 7 x 19
Tensile Strength, lbs. 4200
20% Rule, lbs. 840

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

*Stroke lengths greater than maximum shown are possible. Consult with our qualified personnel about your application.

Downloads


Dimension View (1.34MB JPG)
Dimension Print (429KB PDF)
DWG Cad File (175KB DWG)
DXF Cad File (739KB DXF)
STEP Cad File (788KB STP)
Maint & Repair Guide (231KB PDF)
Sizing/Application Data (385KB PDF)
1301SA Exploded Parts View (364KB PDF)
Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1301-0005 1301SARS 3.0 Reed Switches 699 6.99
1301-0070 1301SAM 3.0 Piston Magnet 699 6.99
