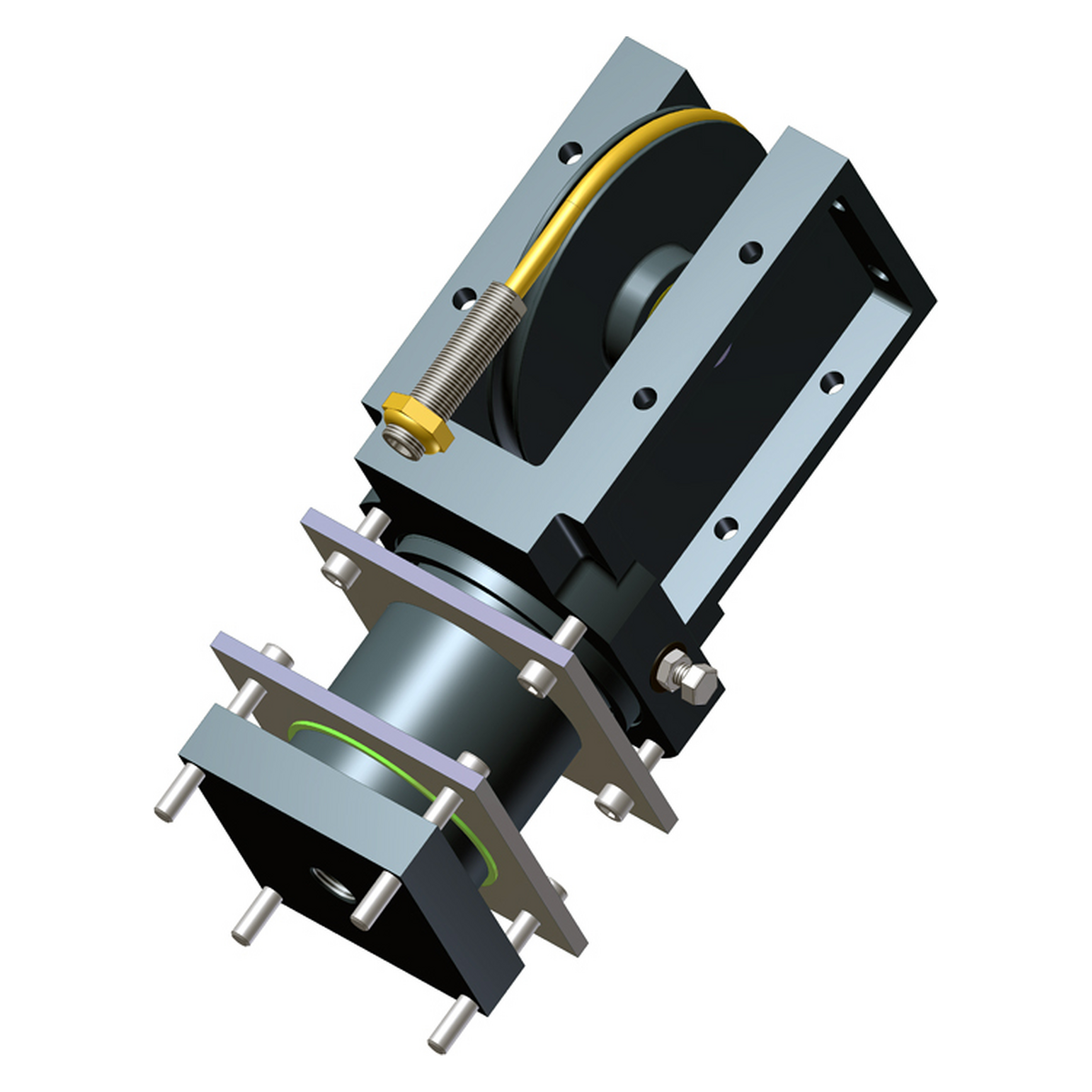

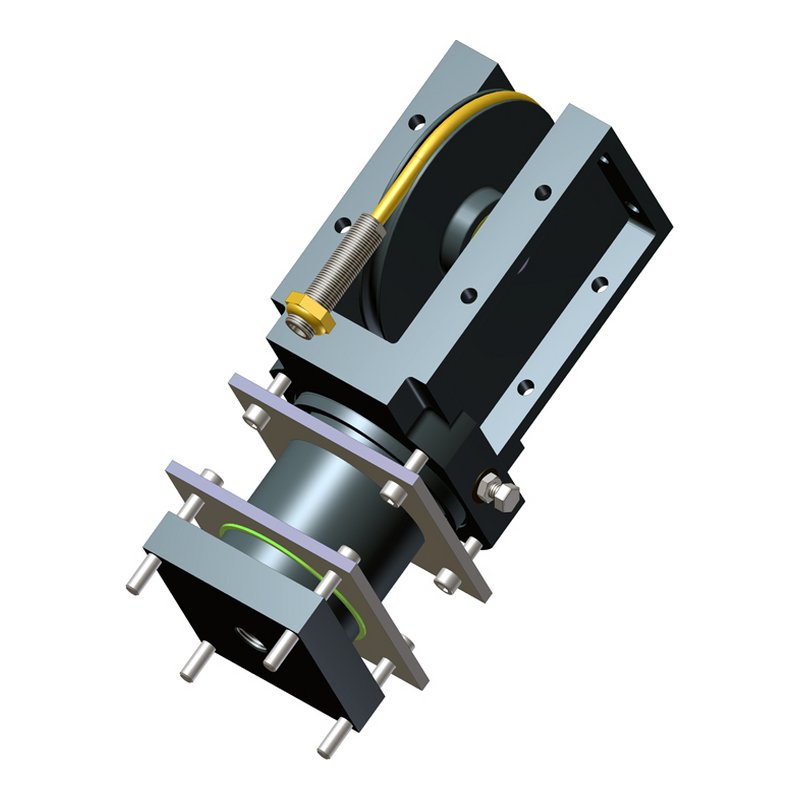

1301SAM Single Acting Cable Cylinder

Attributes | Quote | Options | Related 1301SAM


Single Acting Cable Cylinder with power stroke in one direction, 3.0 inch bore.

Operating temperature range: 20º to 140º F.


Bore, in. 3.0
Option(s) Piston Magnet
Force@100 PSI, lbs. 699
Eff. Area, in.2 6.99
Max. Stroke Length*, in. 151
Cable Wire Dia., in. 3/16
Cable Nylon O.D., in. 5/16
Strand Config 7 x 19
Tensile Strength, lbs. 4200
20% Rule, lbs. 840

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote


*Stroke lengths greater than maximum shown are possible. Consult with our qualified personnel about your application.

Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1301-0001 1301SA 3.0 None 699 6.99
1301-0072 1301SARS 3.0 Reed Switches 699 6.99
