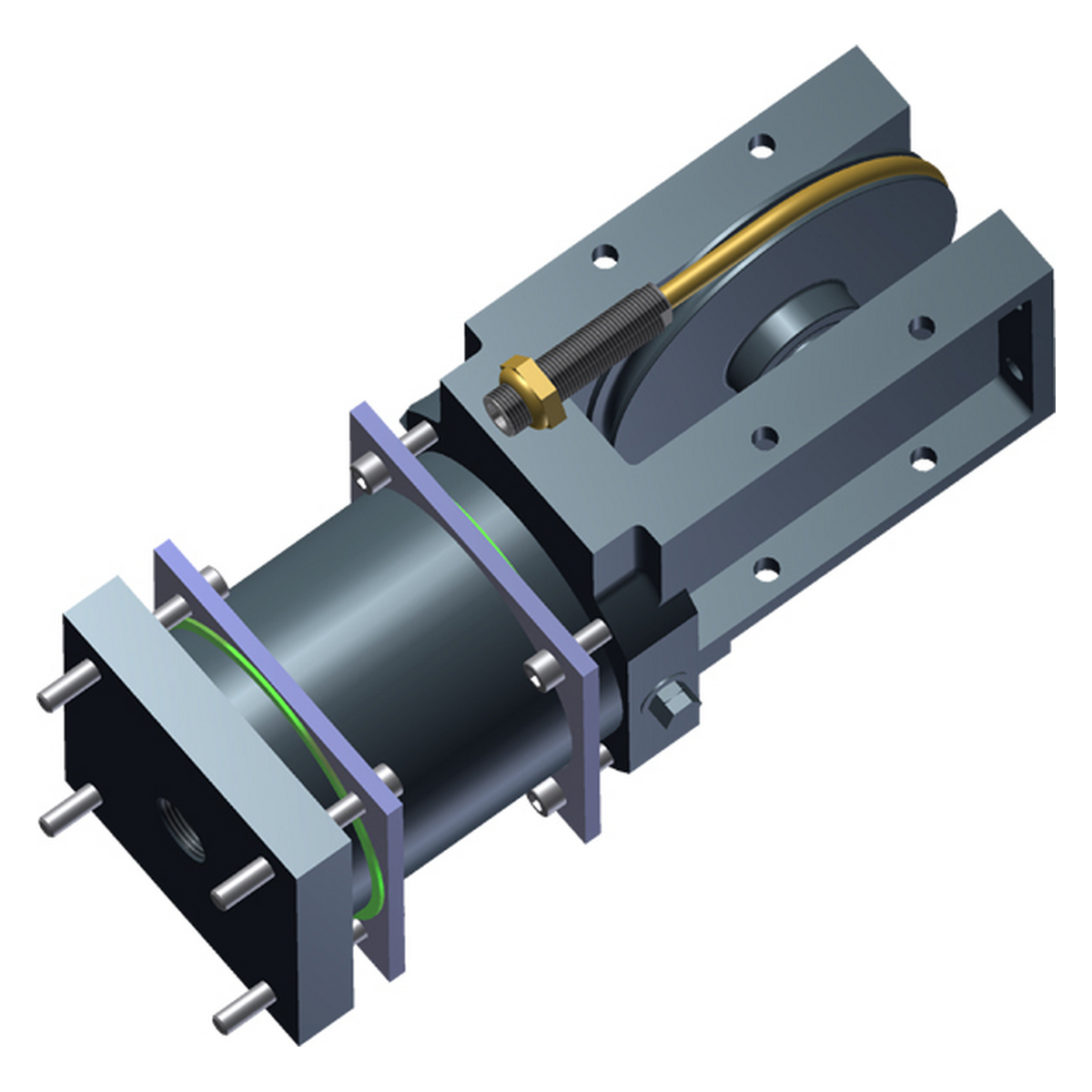

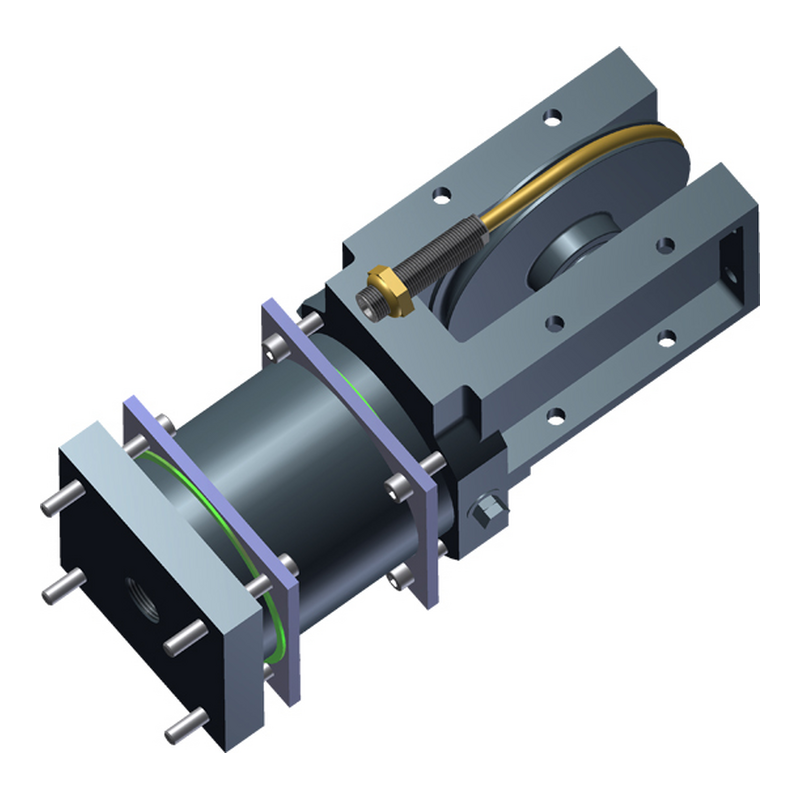

1401SA Single Acting Cable Cylinder

Attributes | Quote | Options | Downloads | Related 1401SA


Single Acting Cable Cylinder with power stroke in one direction, 4.0 inch bore.

Operating temperature range: 20º to 140º F.


Bore, in. 4.0
Option(s) None
Force@100 PSI, lbs. 1249
Eff. Area, in.2 12.49
Max. Stroke Length*, in. 84
Cable Wire Dia., in. 3/16
Cable Nylon O.D., in. 5/16
Strand Config 7 x 19
Tensile Strength, lbs. 4200
20% Rule, lbs. 840

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote


*Stroke lengths greater than maximum shown are possible. Consult with our qualified personnel about your application.


Dimension View (205KB JPG)
Dimension Print (295KB PDF)
Sizing/Application Data (385KB PDF)
DWG Cad File (220KB DWG)
DXF Cad File (521KB DXF)
STEP Cad File (647KB STP)
Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1401-0058 1401SAM 4.0 Piston Magnet 1249 12.49
1401-0059 1401SARS 4.0 Reed Switches 1249 12.49
