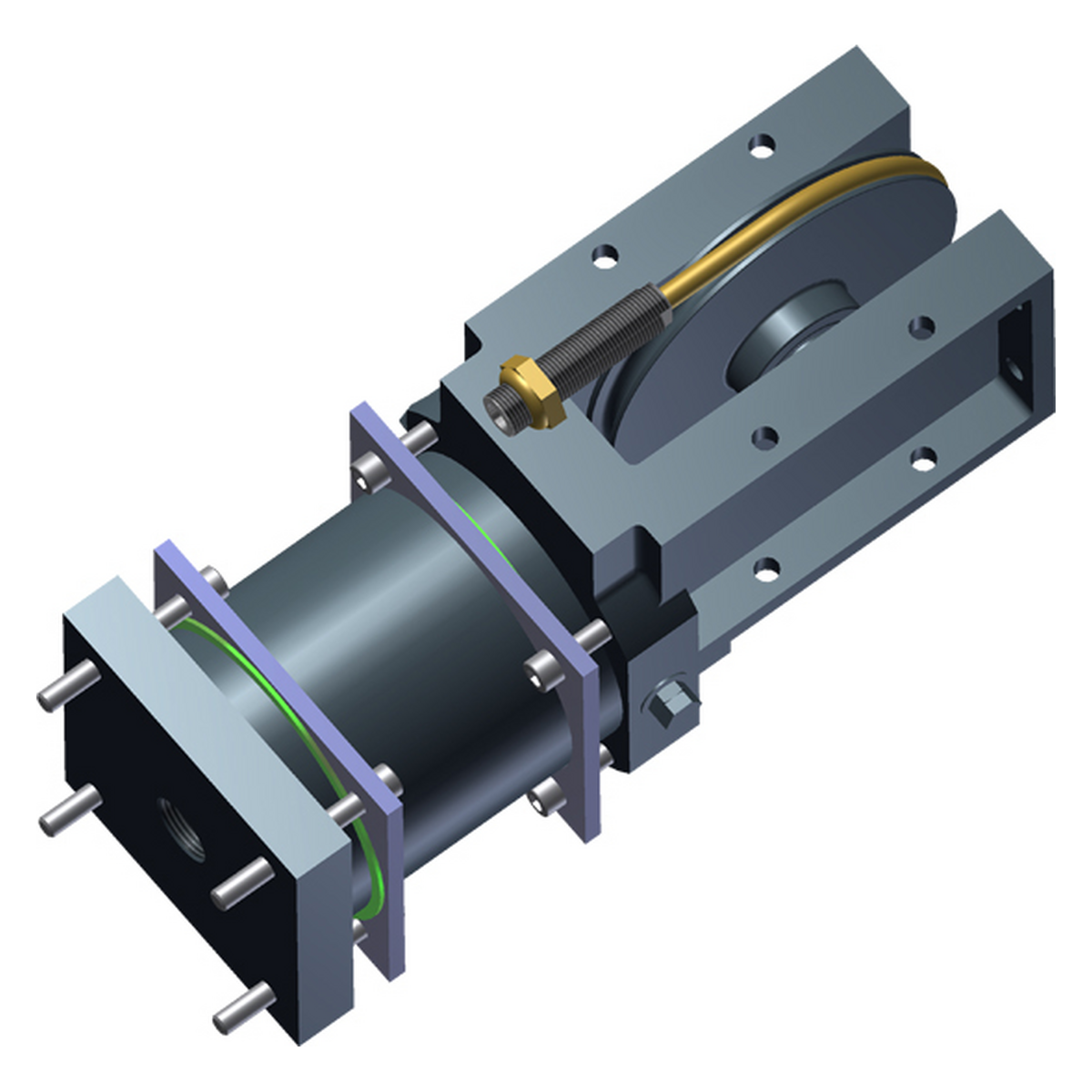

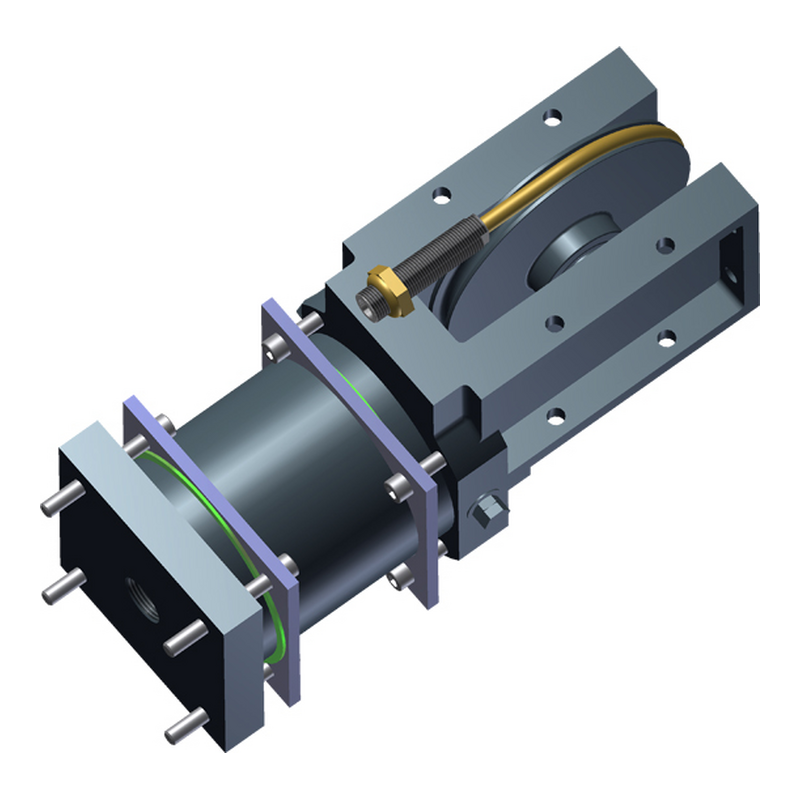

1401SARS Single Acting Cable Cylinder


Attributes | Quote | Options | Related 1401SARS

1401-0059

Single Acting Cable Cylinder with power stroke in one direction, 4.0 inch bore.

Operating temperature range: 20º to 140º F.

Attributes


Bore, in. 4.0
Option(s) Reed Switches
Force@100 PSI, lbs. 1249
Eff. Area, in.2 12.49
Max. Stroke Length*, in. 84
Cable Wire Dia., in. 3/16
Cable Nylon O.D., in. 5/16
Strand Config 7 x 19
Tensile Strength, lbs. 4200
20% Rule, lbs. 840

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

*Stroke lengths greater than maximum shown are possible. Consult with our qualified personnel about your application.

Product Number Product Name Bore, in. Option(s) Force@100 PSI, lbs. Eff. Area, in.2
1401-0003 1401SA 4.0 None 1249 12.49
1401-0058 1401SAM 4.0 Piston Magnet 1249 12.49
