1501SA Single Acting Cable Cylinder


Attributes | Quote | Options | Downloads 1501SA

1501-0003

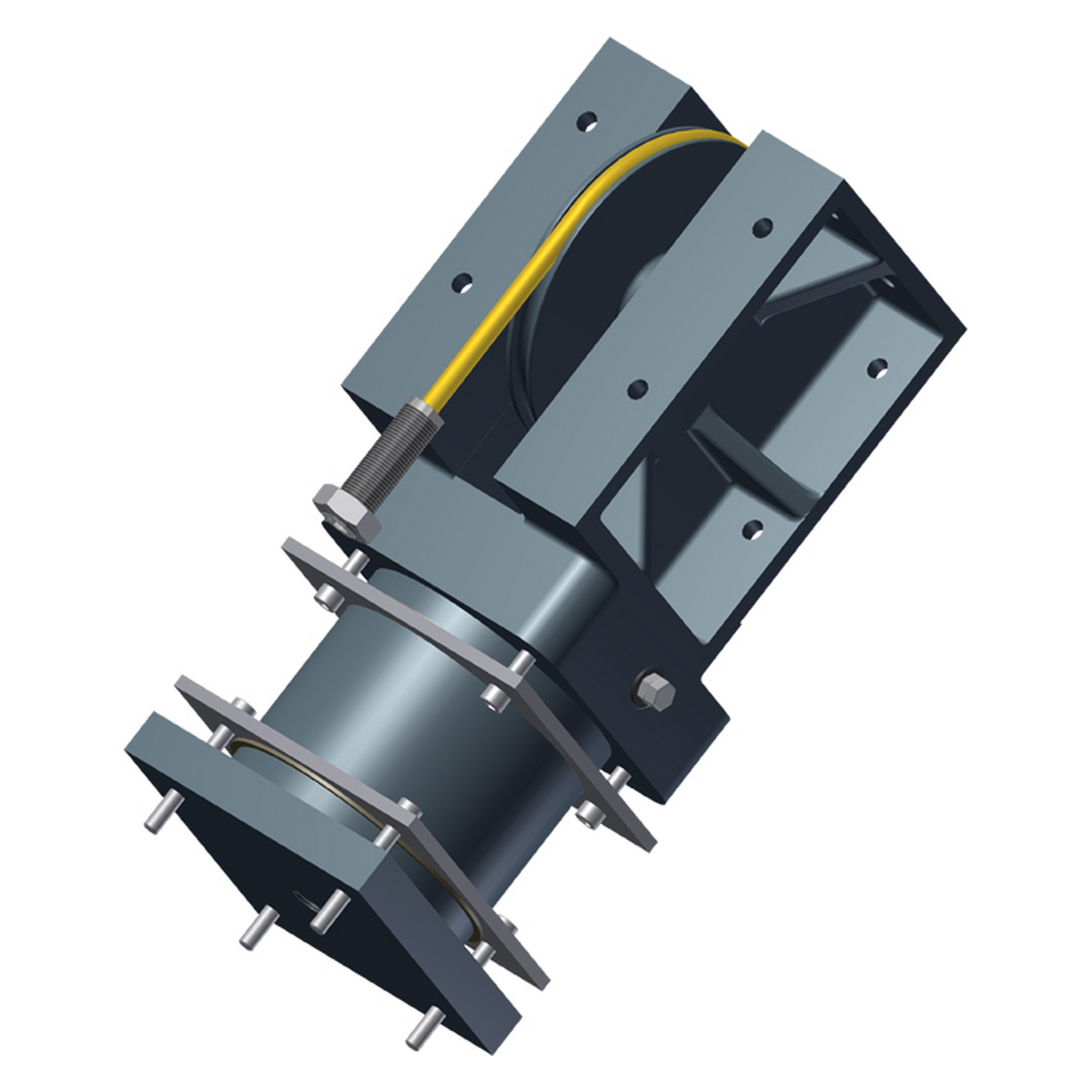

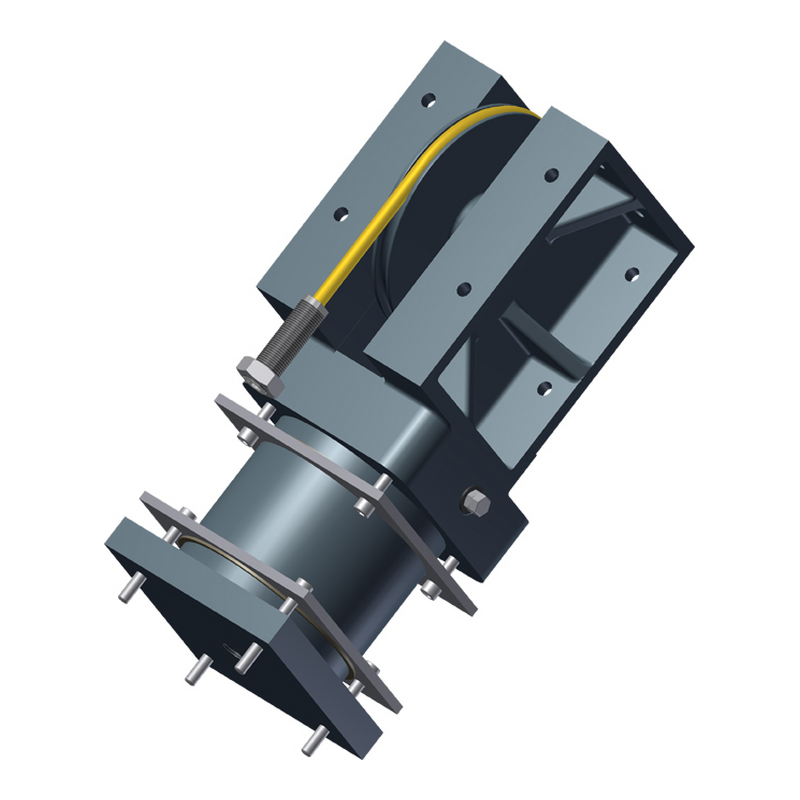

Single Acting Cable Cylinder with power stroke in one direction, 5.0 inch bore.

Operating temperature range: 20º to 140º F.

Attributes


Bore, in. 5.0
Option(s) None
Force@100 PSI, lbs. 1920
Eff. Area, in.2 19.20
Max. Stroke Length*, in. 222
Cable Wire Dia., in. 1/4
Cable Nylon O.D., in. 3/8
Strand Config 7 x 19
Tensile Strength, lbs. 7000
20% Rule, lbs. 1400

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Options

*Stroke lengths greater than maximum shown are possible. Consult with our qualified personnel about your application.

Downloads


Dimension View (297KB JPG)
Dimension Print (377KB PDF)
Sizing/Application Data (385KB PDF)
DWG Cad File (2.67MB DWG)
DXF Cad File (736KB DXF)
STEP Cad File (951KB STP)
