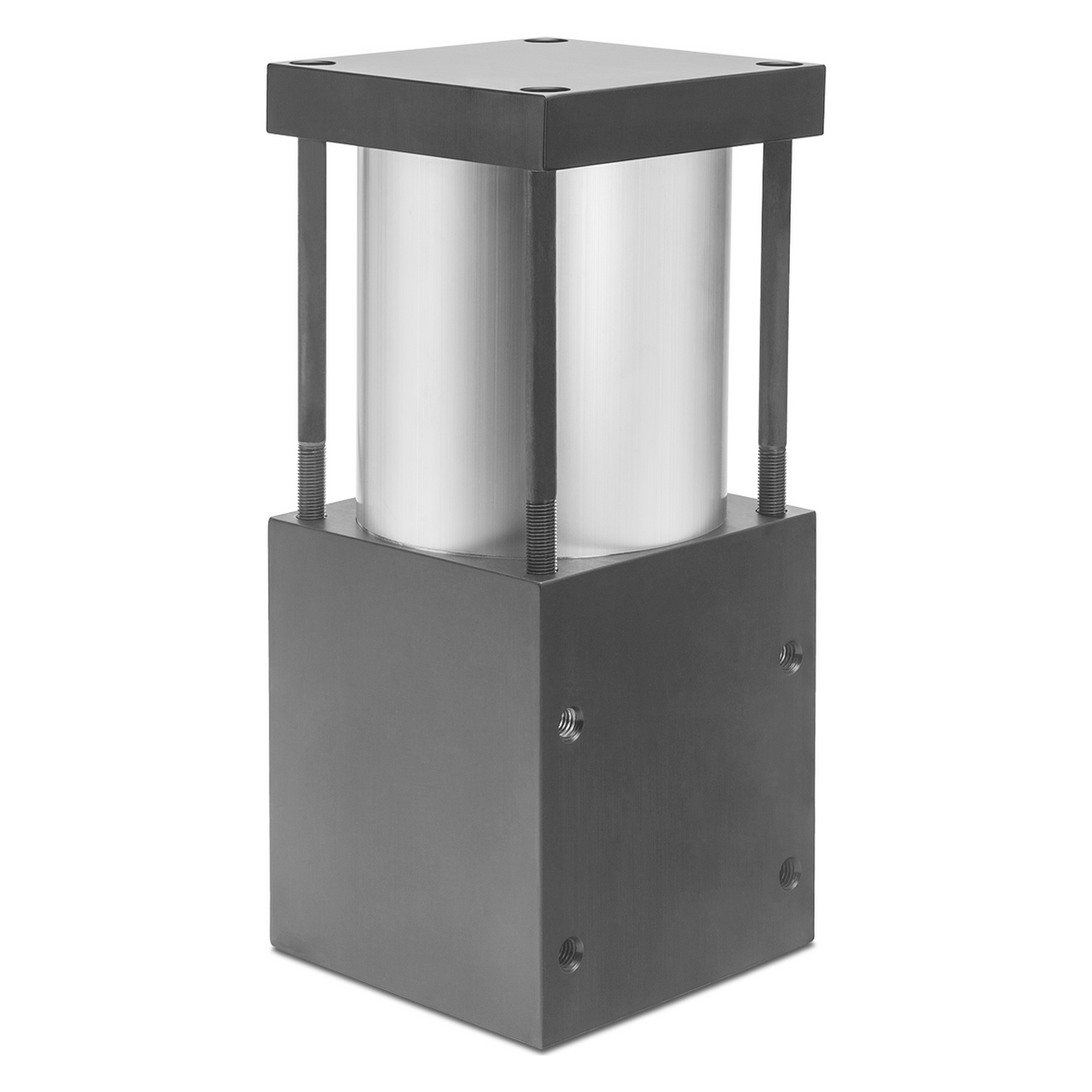

36:1 Air/Oil Intensifier


W.C. Branham Air/Oil Intensifiers give you the ability to use hydraulic caliper disc brakes without the need of a hydraulic system pressure source by converting typically shop air, 80-100 psi, into hydraulic pressure. The benefit to you is the potential of reducing the need for additional hydraulic caliper disc brakes for your braking application, other components and cost savings.

How it Works

Air input to the Intensifier's spring return retracts the piston drawing in hydraulic oil from a reservoir and pumps it to the intensifier circuit at a pre-defined output (hydraulic) to input (air) pressure ratio. A Vented spring chamber eliminates back pressure.

Click here to view sample circuit drawing.

Use with W.C. Branham hydraulic caliper disc brake H491, H493, H962 series AND hydraulic spring applied FS38, FS47, FS200, FS400, FS500 series.


Products Available

  Product # Name Hyd Fluid Displacement Max Input Pressure Max Output Pressure Piston Seal
NEW! 1782-0000 36:1 Air/Oil Intensifier 1.77 cu. in. per stroke 100 psi 3600 psi Quad Seal
