2ICAS101:1LHA.625B.625 Include-A-Shaft Mini Gearbox
Attributes |
Quote
| Downloads

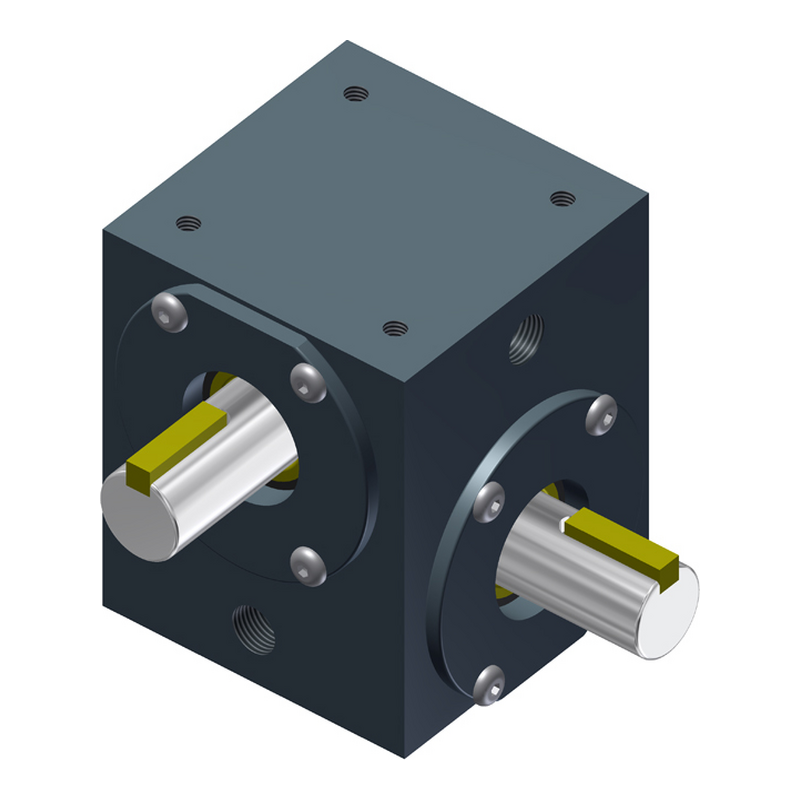

Include-A-Shaft® Series 10 Mini Right Angle Gearbox, 2-Way, 1:1 Ratio, Left Hand Rotation, 'A' Bore .625 in. x 'B' Bore .625 in.
- 1" shaft centers
- One piece 4140 heat treated 45º helical gear and shaft combinations
- Heavy duty sealed ball bearings
- Left hand rotation
- Hardcoated housing
- Speeds to 1800 RPM
- O-Ring sealed gear case
- Machined aluminum construction
- Keys included
Attributes
| Ratio |
1:1 |
| Rotation |
Left Hand |
| # of Shafts |
2-Way |
| Shaft Dia. (in.) |
.625 |
| Max RPM |
1800 |
| Max Hand Torque |
132 in. lb. |
| Shaft Center Dist., (in.) |
1.0 |
| Mounting Type |
Flush |
| Mounting |
(8) 10-32 mounting holes |
| Key Size |
1/8 x 1/16 |
