1301-0805
Model: GCC1301T2

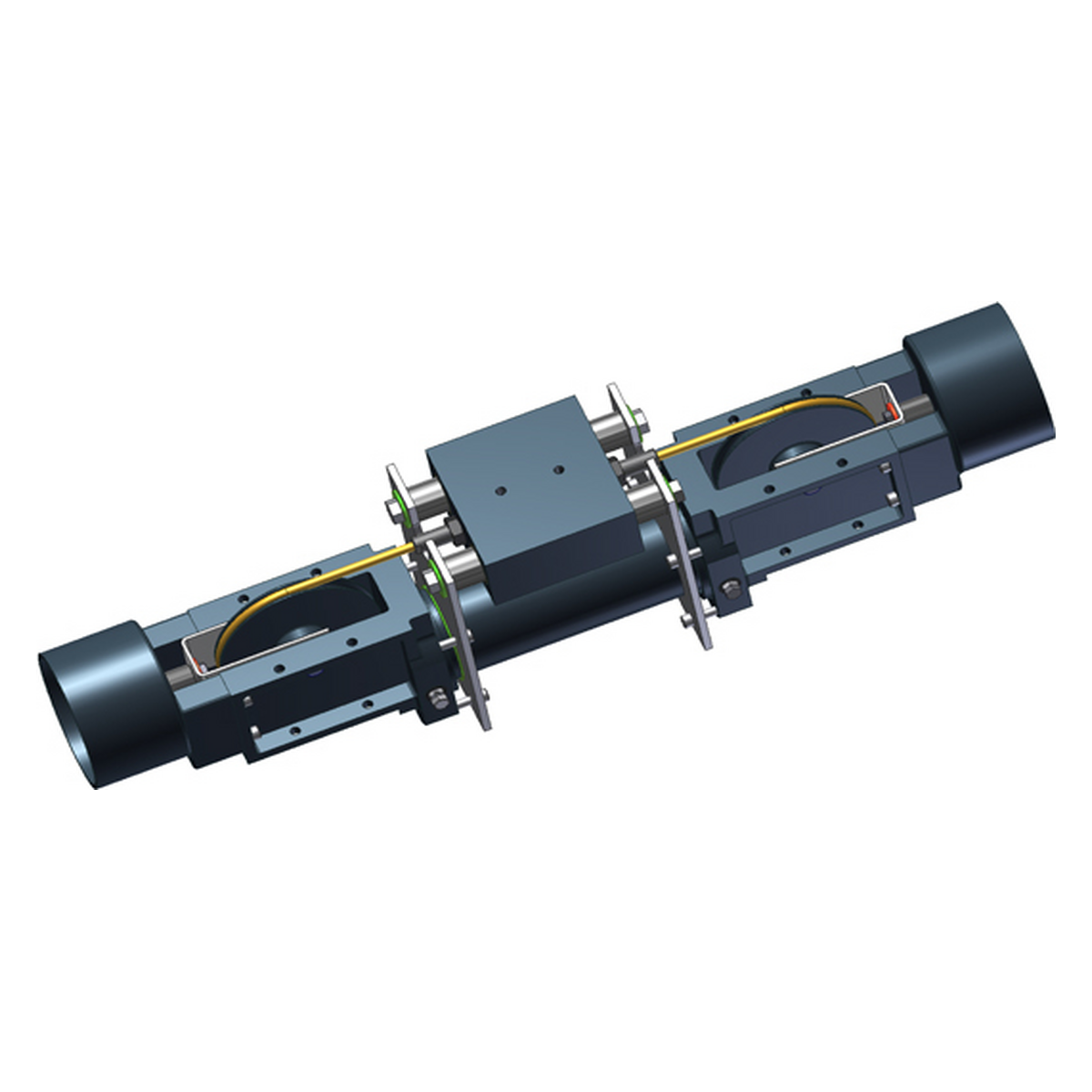

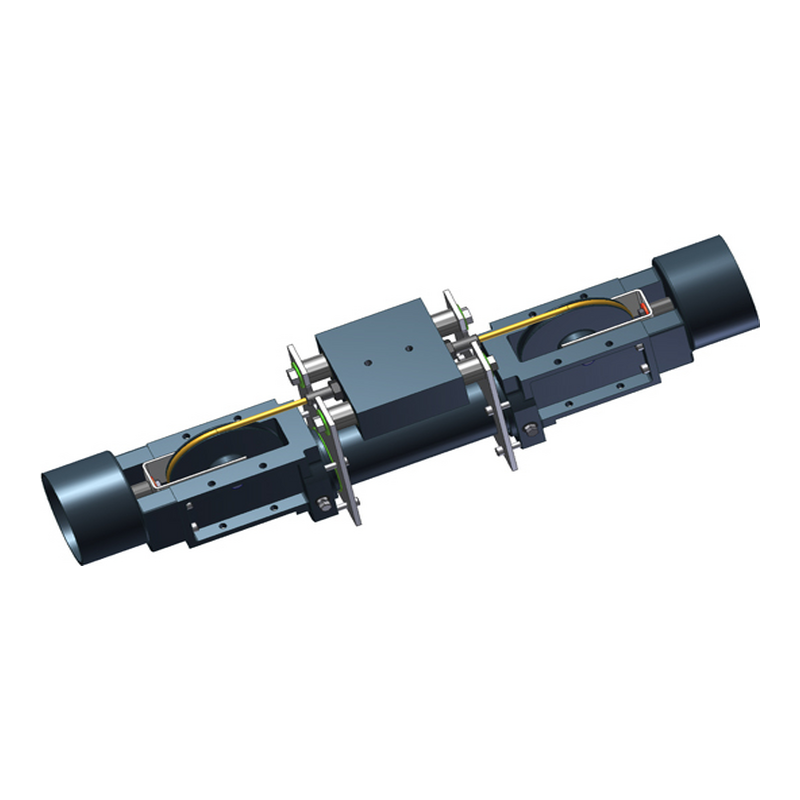

Guided Cable Cylinder, double acting with power stroke in both directions, 3.0 inch bore w/ (2) automatic tensioners.
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- 1.25 inch chrome plated guide rods
- Igus® guide bearings
| Cylinder Type | Rodless |
| Cylinder Style | Cable |
| Actuation | Double |
| Tensioner | 2 |
| Bore Diameter (in) | 3 |
| Body Construction | Anodized Aluminum |
| Guide | Yes |
| Mounting Style | End |
| Seal Material | Buna-N |
| Port Thread | Imperial |
| Port location | Bottom |
| Sensor Magnet | No |
| Sensors | No |
| Brand | ULTRICYL |
| Cushions | Adjustable |
| Made in USA | Yes |
| Port Size | 1/2 NPTF |
| Pressure Maximum (psi) | 100 |
