1740-0001

Model: MAG5TEC1.50HM

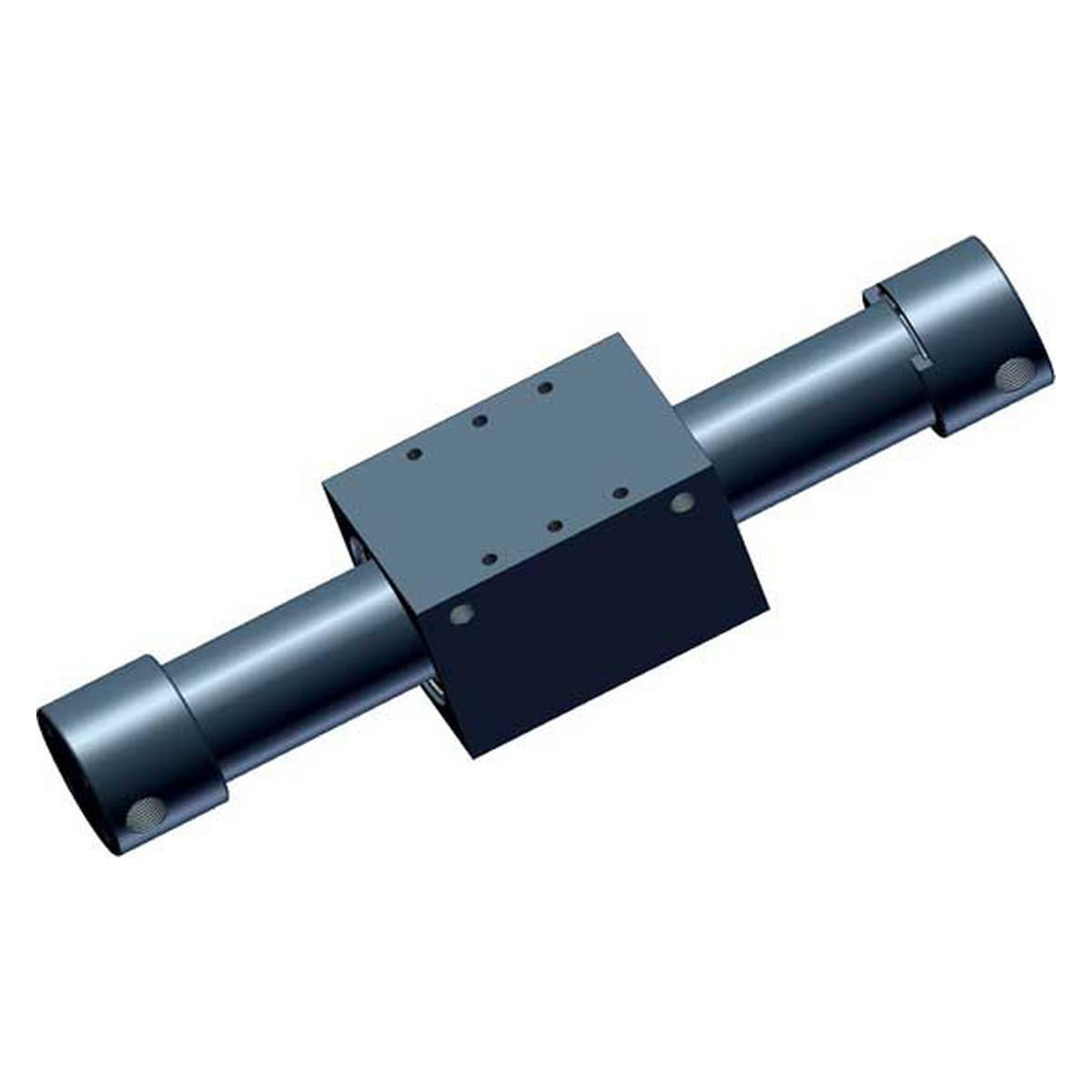

MAGTEC® Rodless Cylinder, double acting with power stroke in both directions, 1.5 in. (40mm) bore. Head mount.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 0º to 170º F.
  • Adjustable cushions
  • 1/8 in. wall aluminum hardcoated tubing 68 Rockwell hardness
  • May be used hydraulically up to 100 PSI
  • Acetron® Acetal GP carrier bearings - high strength, ideal for food contact and medical applications
Cylinder Type Rodless
Cylinder Style Magnetic Coupled
Actuation Double
Bore Diameter (in) 1.5
Body Construction Anodized Aluminum
Guide No
Mounting Style Head
Seal Material Buna-N
Port Thread Imperial
Port location Side
Sensor Magnet No
Sensors No
Brand MAGTEC
Cushions Adjustable
Made in USA Yes
Port Size 1/4-18 NPTF
Pressure Maximum (psi) 100
