2044-02AB-12.00
Model: OVP44FS

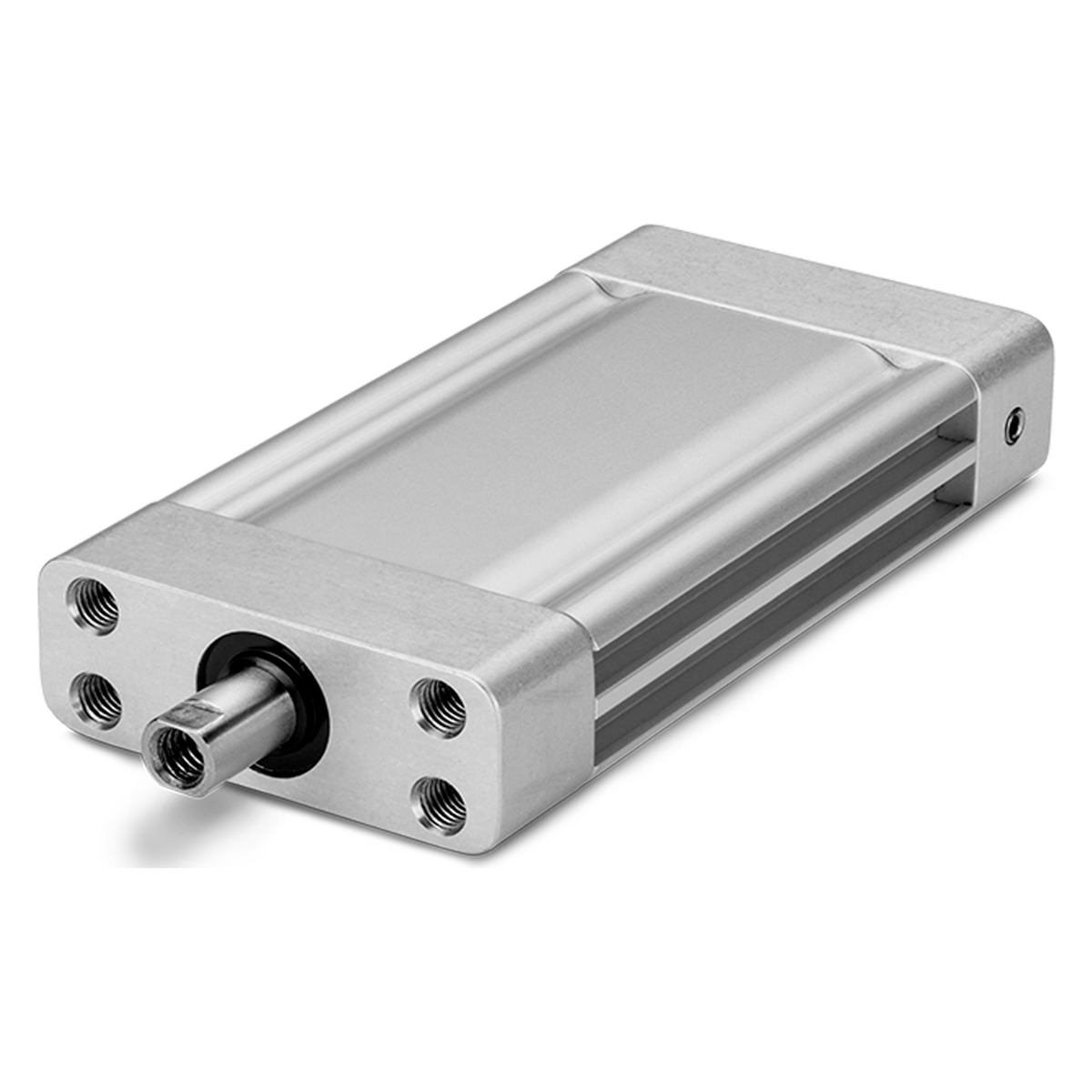

OVLPRO® Low Profile Rod Cylinder, 44mm Bore, Female Threaded Rod, Side Ported, 12.00 in. Stroke.
| Cylinder Type | Rod |
| Cylinder Style | Oval Low Profile |
| Actuation | Double |
| Bore Diameter (mm) | 44 |
| Stroke Length (in) | 12 |
| Body Construction | Anodized Aluminum |
| Rod Diameter (in) | 0.625 |
| Rod Type | Imperial Single |
| Rod Thread | Female Fine |
| Rod Thread | 3/8-24 UNF-2B |
| Rod Material | Hard Chrome Plated Steel |
| Rod Anti-Rotation | Yes |
| Mounting Style | Multi |
| Seal Material | Buna-N |
| Rod Seal | PolyPak® Molythane® w/Wiper |
| Rod Bearing | Bronze Oil Filled |
| Port Thread | Imperial |
| Port location | Side, Singe End |
| Sensor Magnet | Yes |
| Brand | OVLPRO |
| Cushions | Fixed |
| Made in USA | Yes |
| Port Size | 1/4-18 NPTF |
| Pressure Maximum (psi) | 200 |
