1301-0500
Model: 1301TB

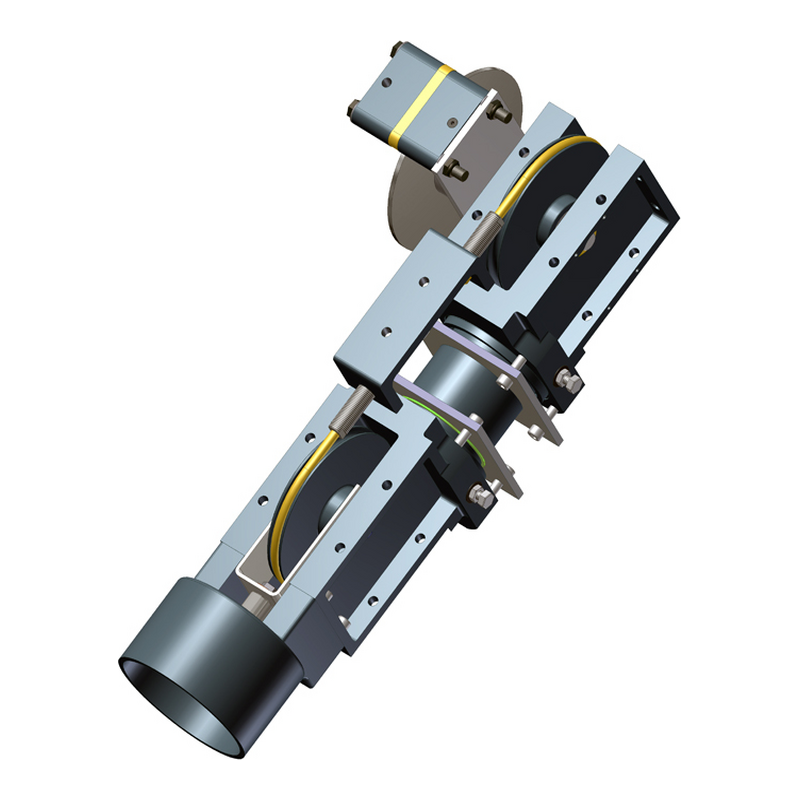

Double Acting Cable Cylinder with power stroke in both directions, 3.0 inch bore w/ automatic tensioner and caliper disc brake.
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- Mounting interchangeable with T-O-M Brand Model CC30
Cylinder Type | Rodless |
Cylinder Style | Cable |
Actuation | Double |
Tensioner | 1 |
Brake | Yes |
Bore Diameter (in) | 3 |
Body Construction | Anodized Aluminum |
Guide | No |
Mounting Style | End |
Seal Material | Buna-N |
Port Thread | Imperial |
Port location | Bottom |
Sensor Magnet | No |
Sensors | No |
Brand | ULTRICYL |
Cushions | Adjustable |
Made in USA | Yes |
Port Size | 1/2 NPTF |
Pressure Maximum (psi) | 100 |
