1151-0000

Model: 1151

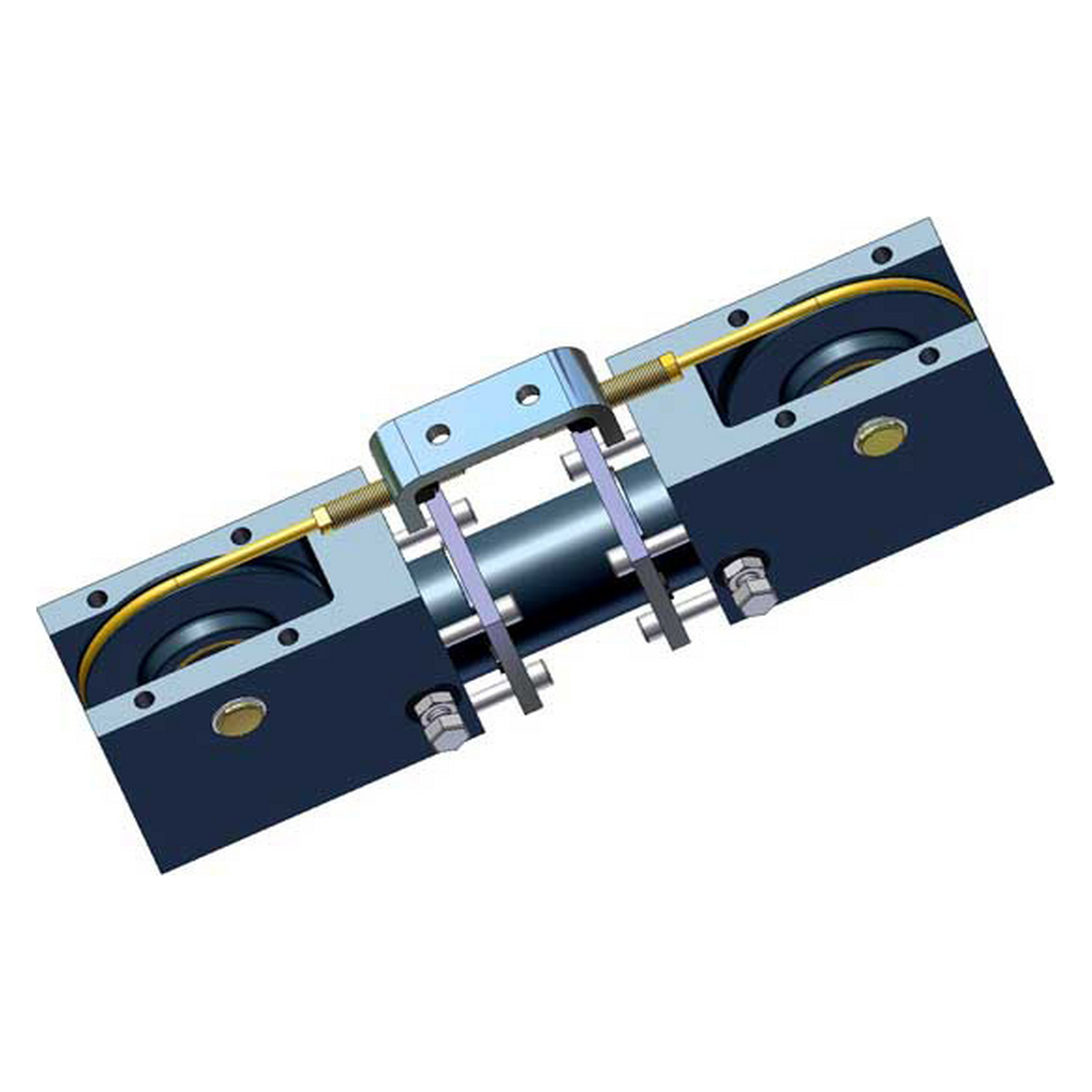

Double Acting Cable Cylinder with power stroke in both directions, 1.5 inch bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • Mounting interchangeable with T-O-M Brand Model CC15

Cylinder Type Rodless
Cylinder Style Cable
Actuation Double
Bore Diameter (in) 1.5
Body Construction Anodized Aluminum
Guide No
Mounting Style End
Seal Material Buna-N
Port Thread Imperial
Port location Bottom
Sensor Magnet No
Sensors No
Brand ULTRICYL
Cushions Adjustable
Made in USA Yes
Port Size 1/4-18 NPTF
Pressure Maximum (psi) 100
