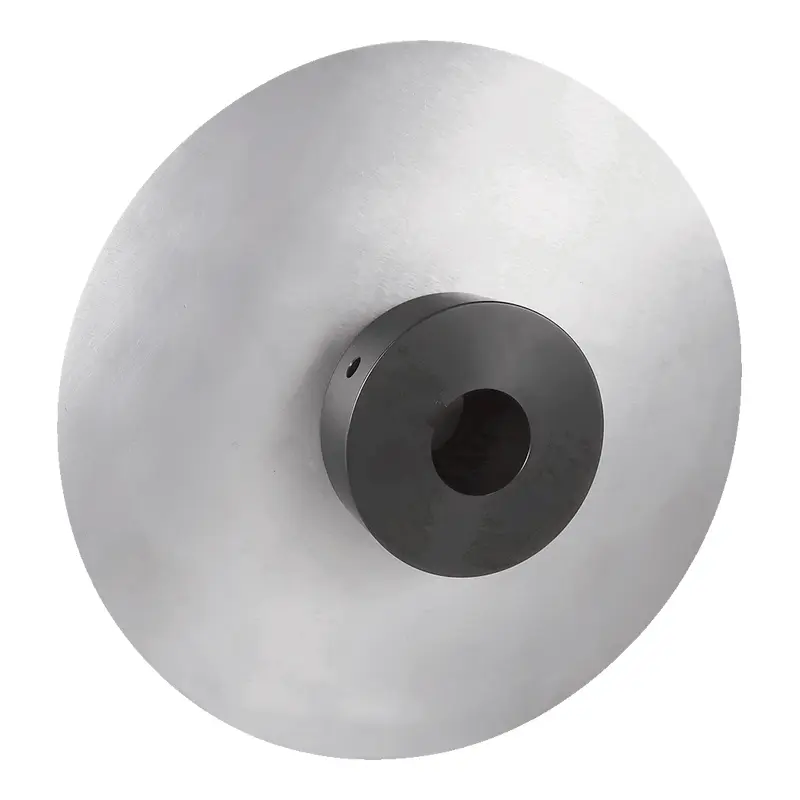

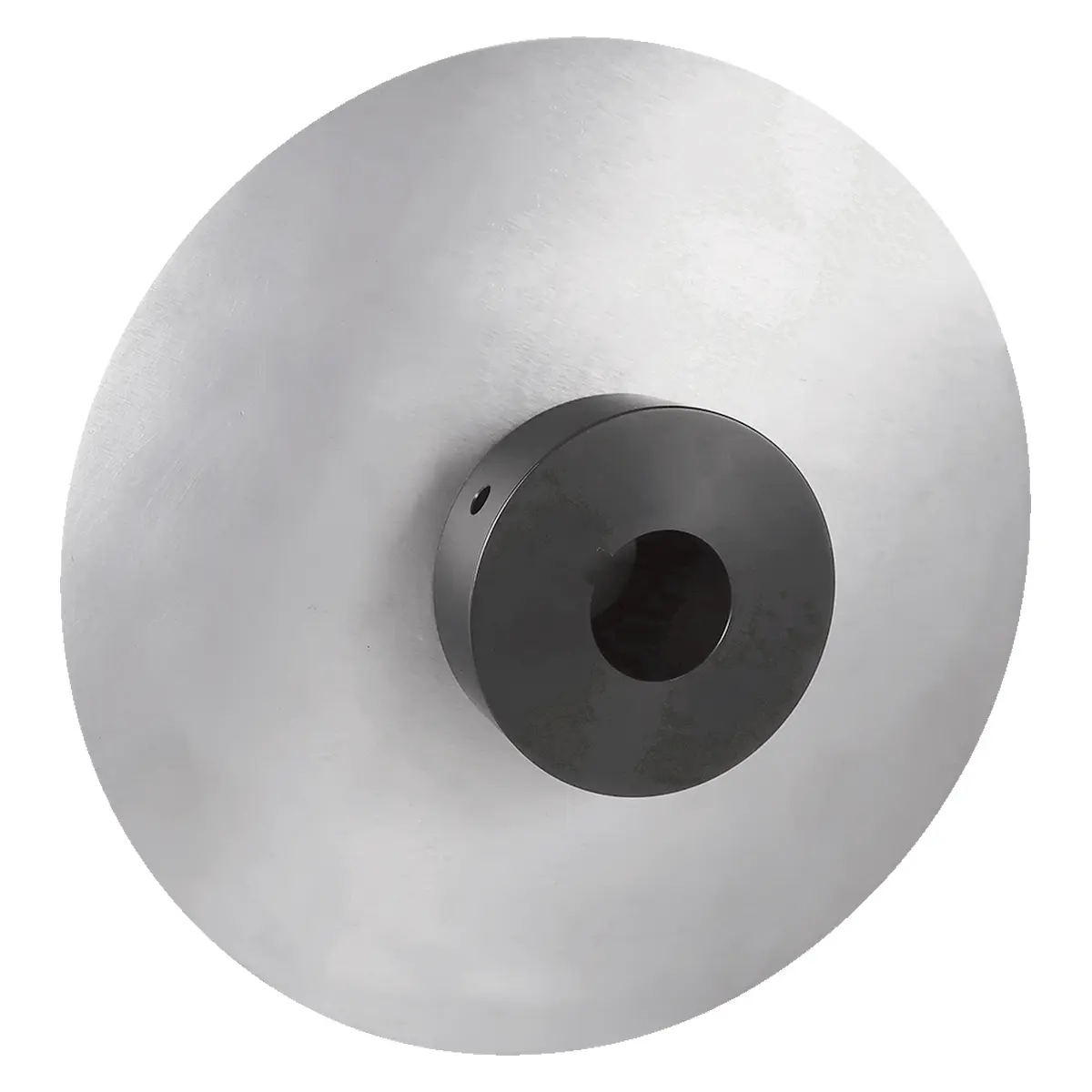

Brake Discs 10" Discs Series

Use with W.C. Branham 38, 47, 200 & 400 Series Caliper Disc Brakes | Machined Discs with Bolt Circle Pattern and Pilot Hole | Blank Discs Make to Suit Your Custom Design | Wide Selection of Hubs for Each Disc Diameter

Request a Quote
Click image to enlarge

10.0" Discs Series - Maximum Torque Rating 12,000 inch lbs.

Product # Description Bore Diameter (in) Disc Thick. (in.)/Spacer Key Size (in.)
4803-0014 Fixed Disc/Hub Assy 0.875 5/32 / A 1/4 x 1/4
$236.96
4803-0016 Fixed Disc/Hub Assy 1.000 5/32 / A 1/4 x 1/4
$236.96
4803-0018 Fixed Disc/Hub Assy 1.125 5/32 / A 1/4 x 1/4
$236.96
4803-0020 Fixed Disc/Hub Assy 1.250 5/32 / A 1/4 x 1/4
$236.96
4803-0022 Fixed Disc/Hub Assy 1.375 5/32 / A 5/16 x 5/16
$236.96
4803-0024 Fixed Disc/Hub Assy 1.500 5/32 / A 3/8 x 3/8
$236.96
4803-0026 Fixed Disc/Hub Assy 1.625 5/32 / A 3/8 x 3/8
$236.96
4803-0028 Fixed Disc/Hub Assy 1.750 5/32 / A 3/8 x 3/8
$236.96

10" Disc Series w/QD Hubs - Maximum Torque Rating 3,500 inch lbs.

Product # Description Bore Diameter (in) Disc Thick. (in.)/Spacer Key Size (in.)
4803-0108 Fixed Disc/Hub Assy w/QD 0.500 5/32 / A 1/8 x 1/8
4803-0110 Fixed Disc/Hub Assy w/QD 0.625 5/32 / A 3/16 x 3/16
4803-0112 Fixed Disc/Hub Assy w/QD 0.750 5/32 / A 3/16 x 3/16
4803-0114 Fixed Disc/Hub Assy w/QD 0.875 5/32 / A 3/16 x 3/16
4803-0116 Fixed Disc/Hub Assy w/QD 1.000 5/32 / A 1/4 x 1/4
4803-0118 Fixed Disc/Hub Assy w/QD 1.125 5/32 / A 1/4 x 1/4
4803-0120 Fixed Disc/Hub Assy w/QD 1.250 5/32 / A 1/4 x 1/4
4803-0122 Fixed Disc/Hub Assy w/QD 1.375 5/32 / A 5/16 x 5/16
4803-0124 Fixed Disc/Hub Assy w/QD 1.500 5/32 / A 3/8 x 3/8
4803-0126 Fixed Disc/Hub Assy w/QD 1.625 5/32 / A 3/8 x 3/8
