4801-0012

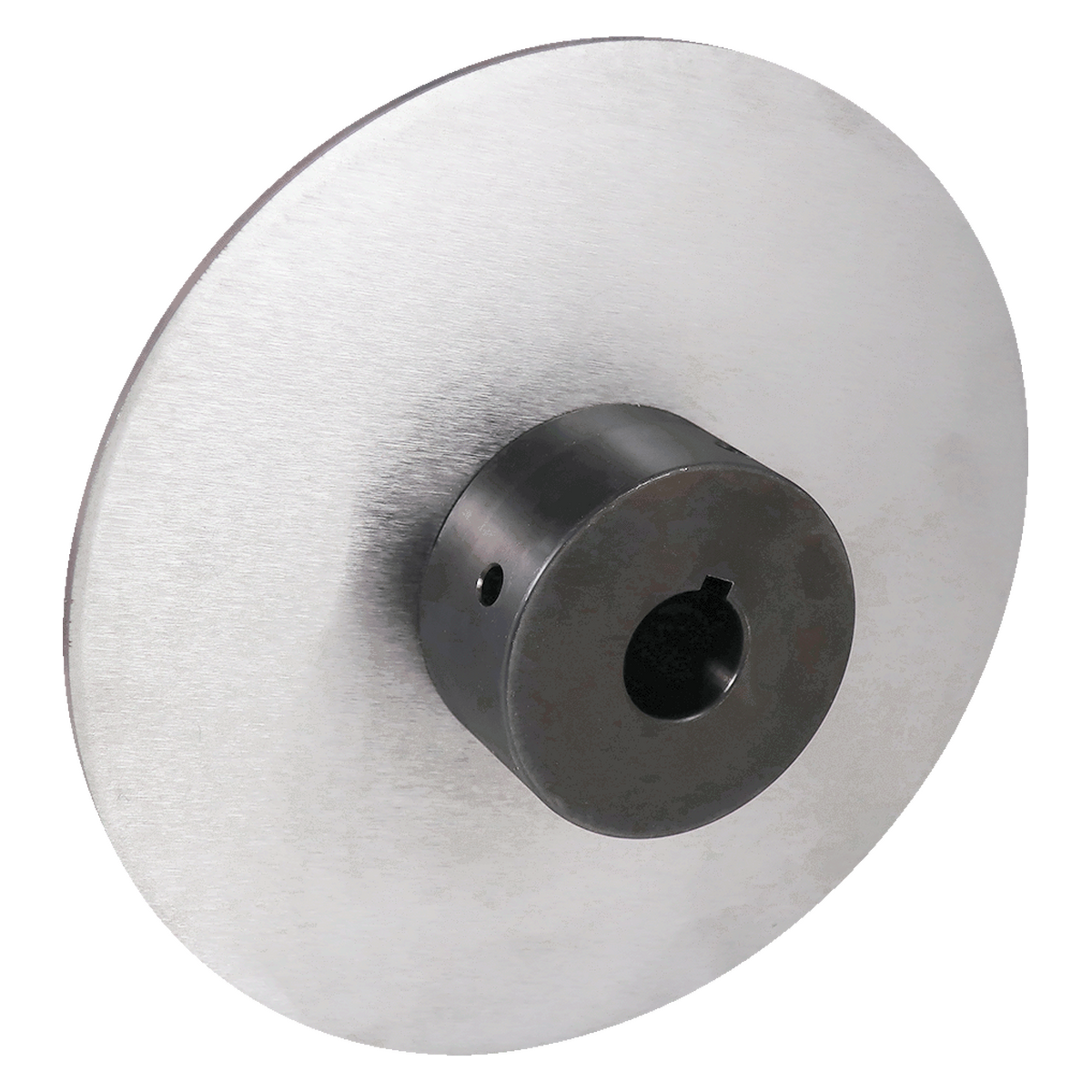

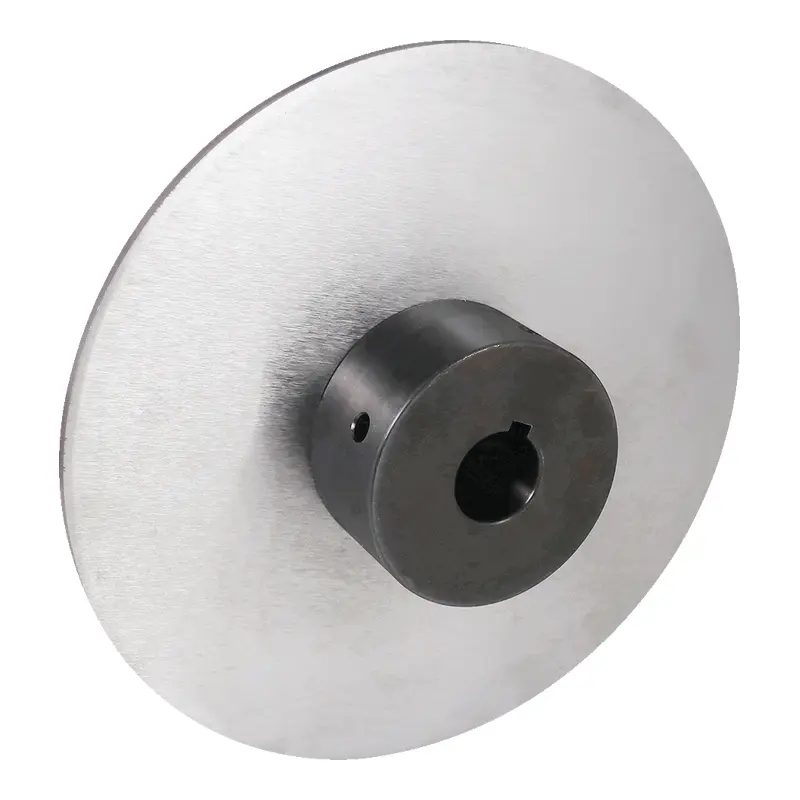

6 5/16 in. diameter fixed hub and disc assembly, 3/4 inch bore. Fits all W.C. Branham and T-O-M Brand caliper disc brakes with 'A' brake spacer designator.
- Carbon 1010 steel
- Flat to within .020 inch
- Stress Relieved
- Blanchard ground 80 RMS finish
- Rated up to 300º F.
- 1215 Cold rolled steel hub material
- Socket head cap screws
- Keyway set screws
Estimated Lead-Time: 5-7 business days ARO @ Qty < 4 pcs.
| Bore Diameter (in) | 0.750 |
| Description | Fixed Disc/Hub Assy |
| Disc Thick. (in.)/Spacer | 5/32 / A |
| Key Size (in.) | 3/16 x 3/16 |
Click image to enlarge
