4004-0057

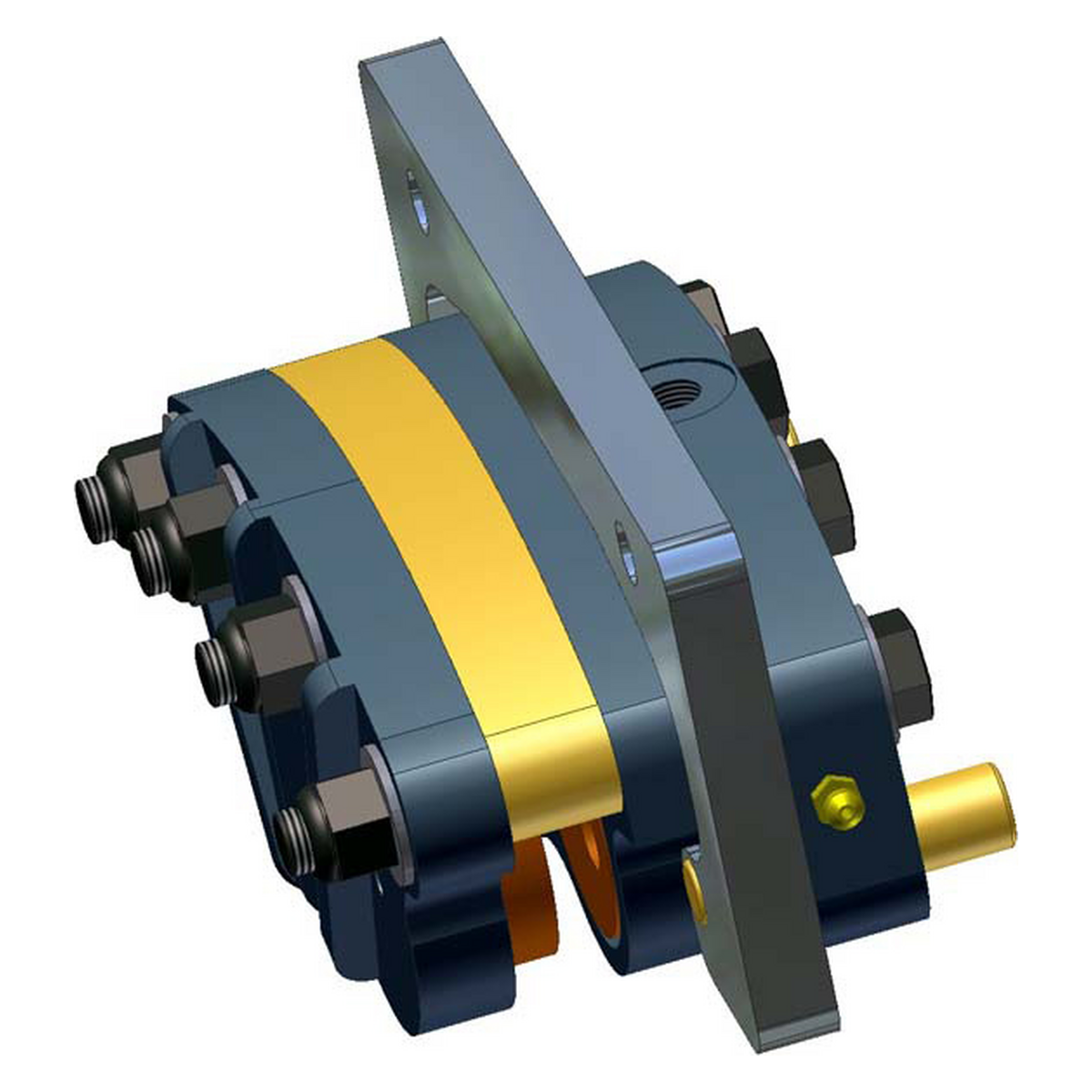

Model: H200SBF
200 series, hydraulic single acting caliper disc brake w/ floating bracket, sized for 1/4 inch thick brake disc.
- Aluminum Construction
- Hardcoated
- Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
- Fits on Brake Discs up to 16" Diameter
- Replaceable Friction Pads (WCB p/n 4000-1052)
- U.S. Dept. of Defense Approved Friction Pads
- Dynamic torque (inch/lb): 288 lbf per 100 psi x braking radius
- Power Factor: 200 Series 4X, 38 Series 1X, 47 Series 2X
| Additional Info | Dual Non-Retractable Pistons |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Disc Thick. (in.) | 1/4 |
| Fluid Displacement | 0.124 cu. in. |
| Fluid Type | Hydraulic Oil |
| Max. Pressure, PSI | 1500 |
| Model # | H200SBF |
| Piston Dia. | 1.625 in. |
| Seals | Buna-N |
| Total Pad Area | 8.00 sq. in. |
| Wearable Friction Material | 1.66 cu. in. |
