4004-0705

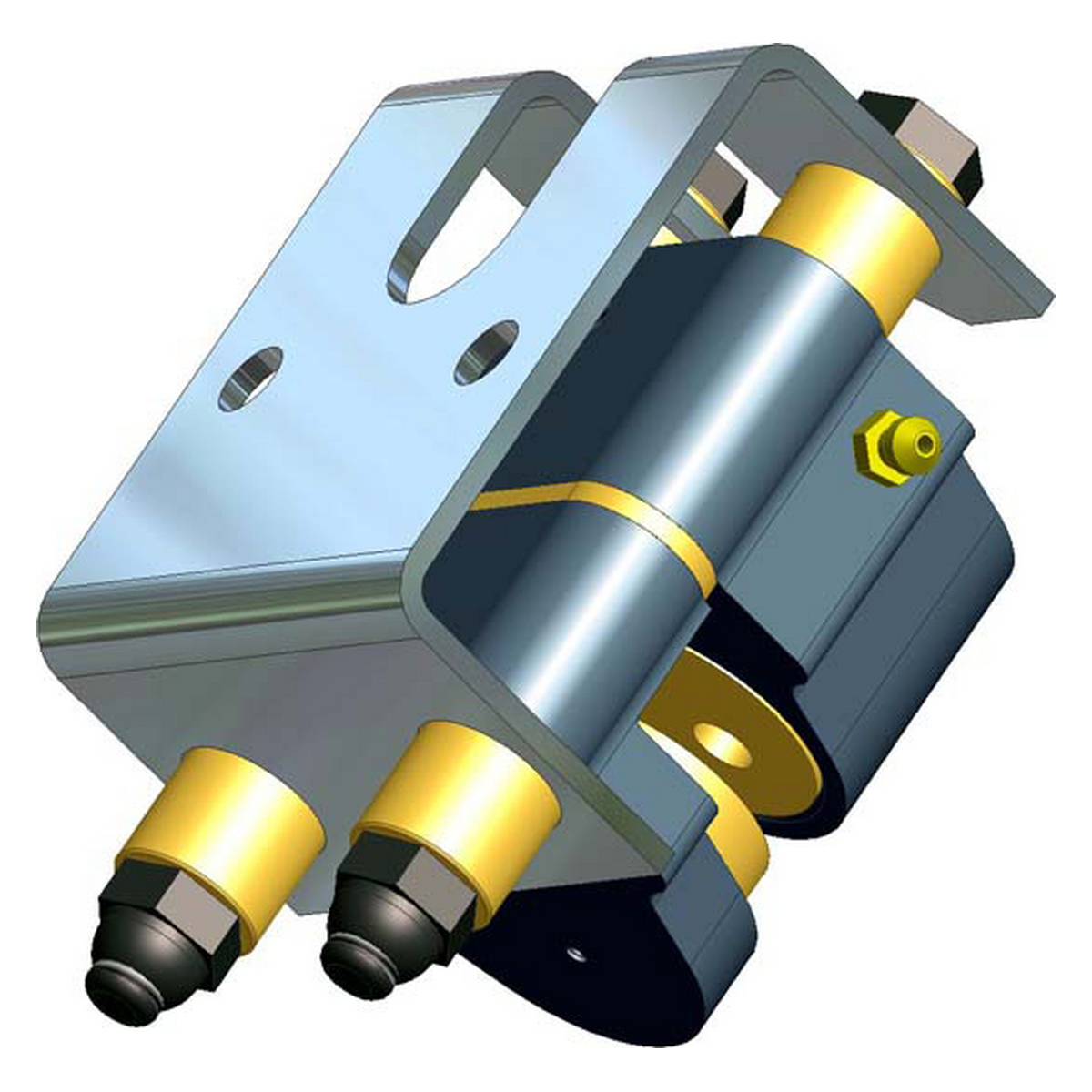

38 series, hydraulic single acting caliper disc brake w/ floating bracket, sized for 1/4 inch thick brake disc.
- Aluminum Construction
- Hardcoated
- Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12", 16" Diameter
- Fits on Brake Discs with Unlimited Diameter
- Replaceable Friction Pads (WCB p/n 4000-1054)
- Dynamic torque (inch/lb) 70 lbf per 100 psi x braking radius
- Power Factor: 38 Series 1X, 47 Series 2X, 200 Series 4X
| Additional Info | Single Non-Retractable Piston |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Disc Thick. (in.) | 1/4 |
| Fluid Type | Hydraulic Oil |
| Model # | H38SBF |
