4004-0086
Model: H47SLG

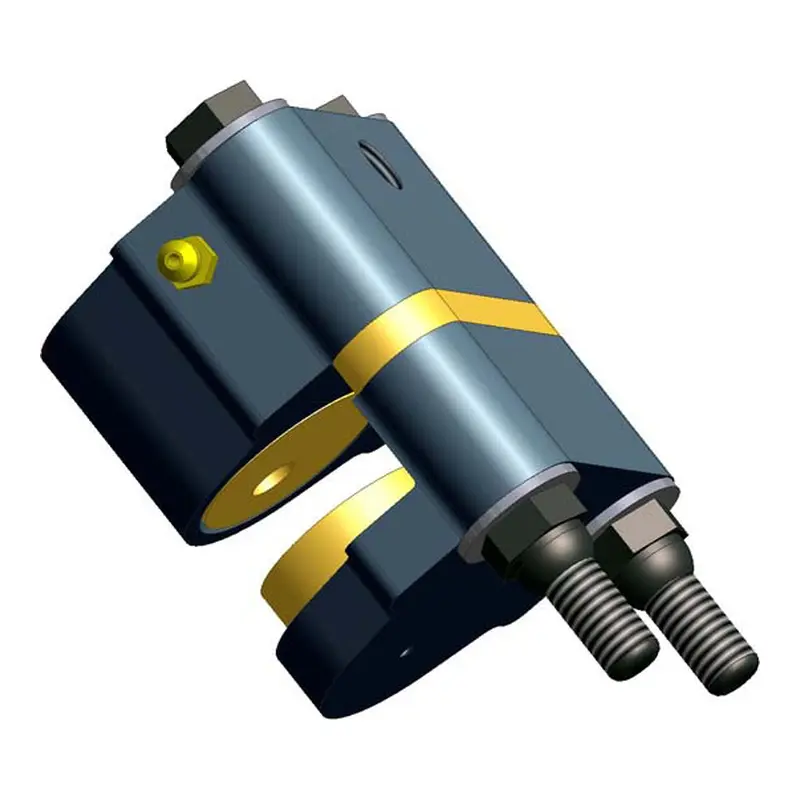

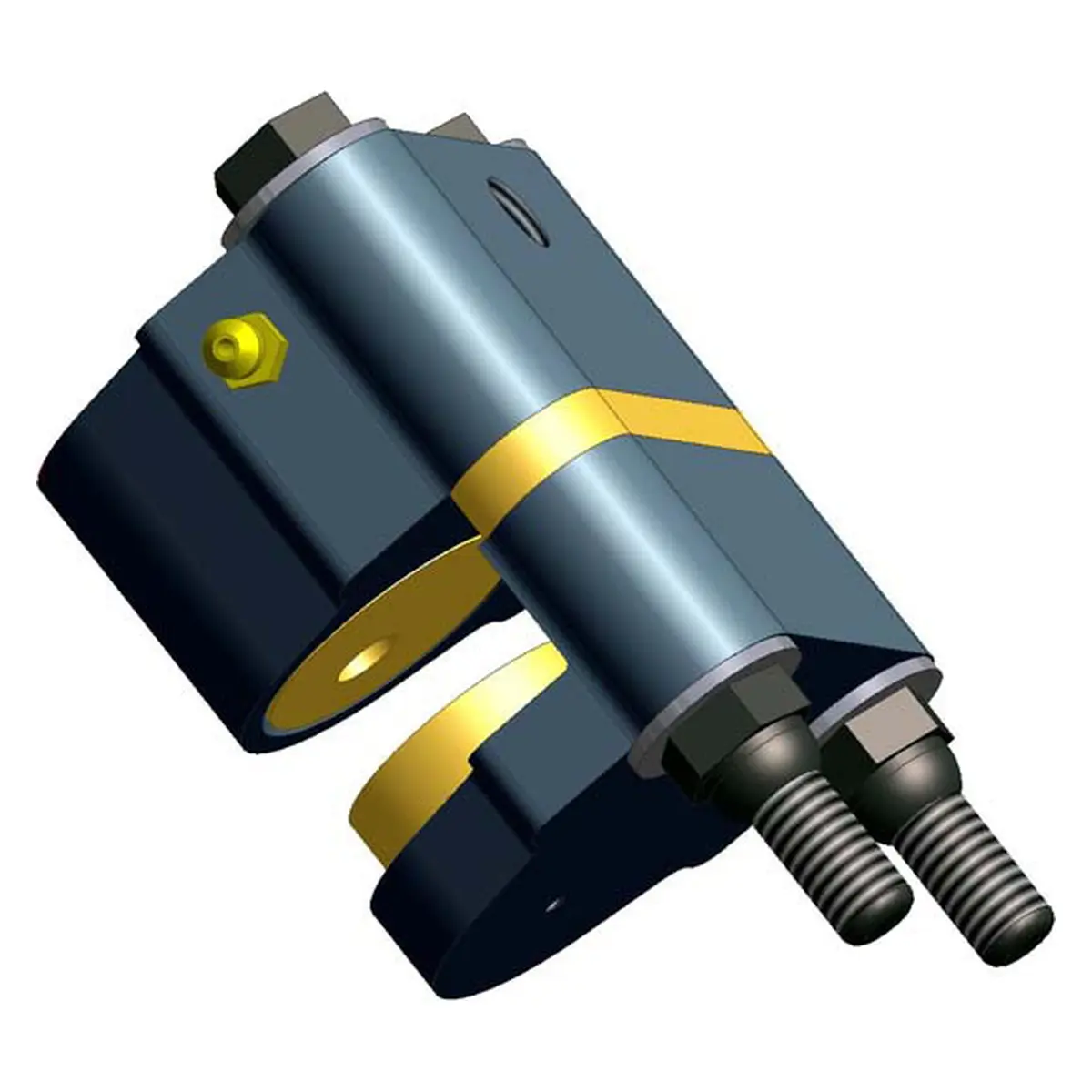

47 series, hydraulic single acting caliper disc brake w/ EPR seals, sized for 5/32 inch thick brake disc.
- Aluminum Construction
- Hardcoated
- Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
- Fits on Brake Discs with Unlimited Diameter
- Replaceable Friction Pads (WCB p/n 4000-1052)
- U.S. Dept. of Defense Approved Friction Pads
- Dynamic torque (inch/lb): 144 lbf per 100 psi x braking radius
- Power Factor: 200 Series 4X, 38 Series 1X, 47 Series 2X
| Additional Info | Single Non-Retractable Piston, EPR Seals |
| Description | Single Acting, Fixed Mount. Use Floating Disc |
| Disc Thick. (in.) | 5/32 |
| Fluid Displacement | 0.062 cu. in. |
| Fluid Type | Dot 3 Brake Fluid |
| Max. Pressure, PSI | 1000 |
| Model # | H47SLG |
| Piston Dia. | 1.625 in. |
| Seals | EPR |
| Total Pad Area | 4.00 sq. in. |
| Wearable Friction Material | 0.83 cu. in. |
