4251-0034

Name: W.C. Branham Inc.
Address: 398 Troy St, River Falls, WI, 54022, US
Telephone: 715-426-2000
Price range: $

Model: H491SEG

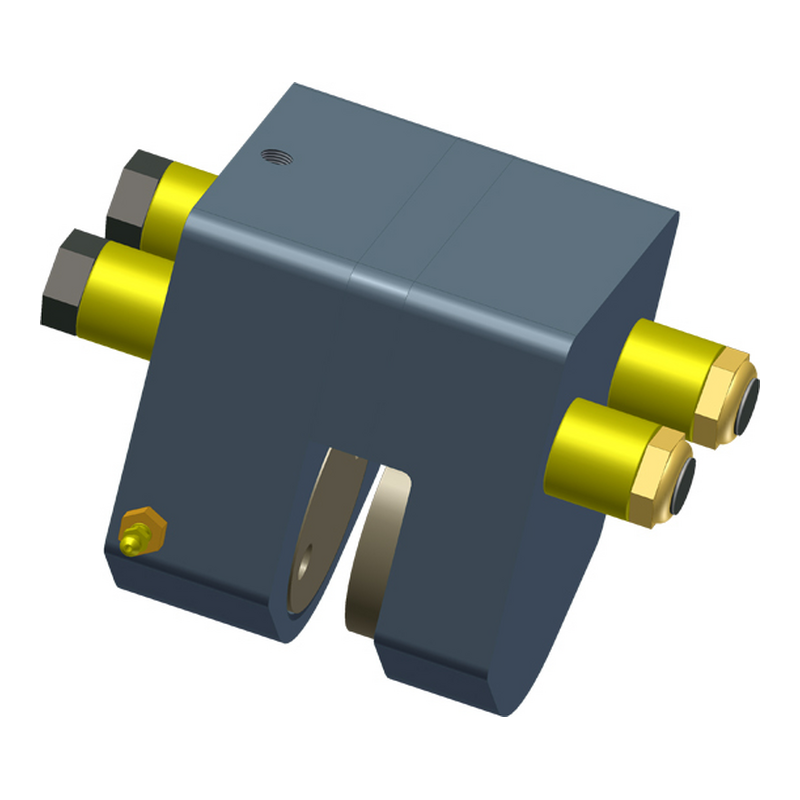

491 series, hydraulic single acting caliper disc brake w/ EPR seals, sized for 1/2 inch thick brake disc. Customer supplied float mounting.

Aluminum Construction
Hardcoated
Fits on Brake Discs with Unlimited Diameter
Replaceable Friction Pads (WCB p/n 4000-1014)
Dynamic torque (inch/lb): 353.5 lbf per 100 psi x braking radius
Power Factor: 491 Series 5X, 38 Series 1X, 47 Series 2X, 200 Series 4X, 962 Series 10X

Additional Info	Single Non-Retractable Piston, Float Plates Not Included
Description	Single Acting, Floating Mount. Use Fixed Disc
Disc Thick. (in.)	1/2
Fluid Displacement	0.0735 cu. in.
Fluid Type	Dot 3 Brake Fluid
Max. Pressure, PSI	1500
Model #	H491SEG
Piston Dia.	2.5 In.
Seals	EPR
Total Pad Area	9.14 sq. in.
Wearable Friction Material	3.80 cu. in.
