4355-0042
Model: H662DLR

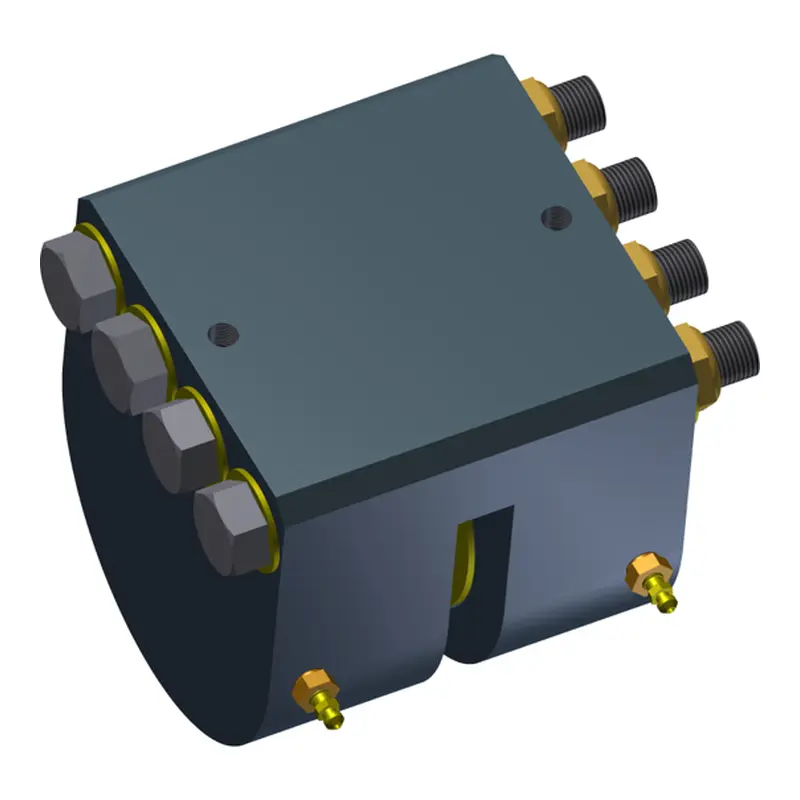

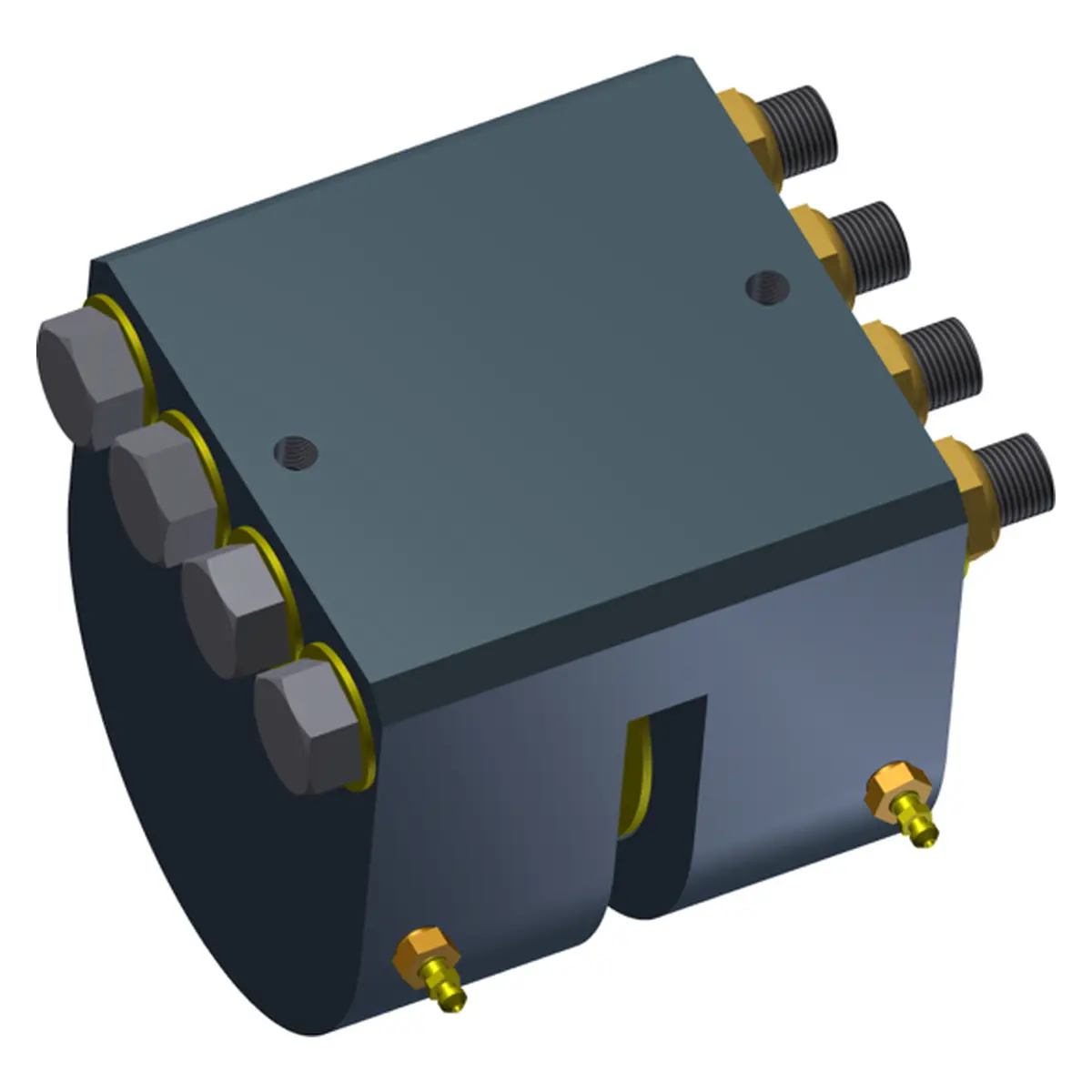

662 series, hydraulic double acting caliper disc brake w/ spring retractable pistons, sized for 3/8 inch thick brake disc.
- Machined Aluminum Construction
- Hardcoated
- Fits on Brake Discs from 14 inch to unlimited Diameter
- Replaceable Friction Pads
- Internal Crossover Porting
- 9.62 Sq. in. Piston Area x 2
- Dynamic torque (inch/lb): 693 lbf per 100 psi x braking radius (in.)
| Additional Info | Dual Spring Retractable Pistons |
| Description | Double Acting. Fixed Mount. Use Fixed or Floating Disc |
| Disc Thick. (in.) | 3/8 |
| Fluid Displacement | 0.58 cu. in. |
| Fluid Type | Hydraulic Oil |
| Max. Pressure, PSI | 1500 |
| Model # | H662DLR |
| Piston Dia. | 3.50 In. |
| Seals | Buna-N |
| Total Pad Area | 19.24 sq. in. |
| Wearable Friction Material | 7.30 cu. in. |
