4005-0002

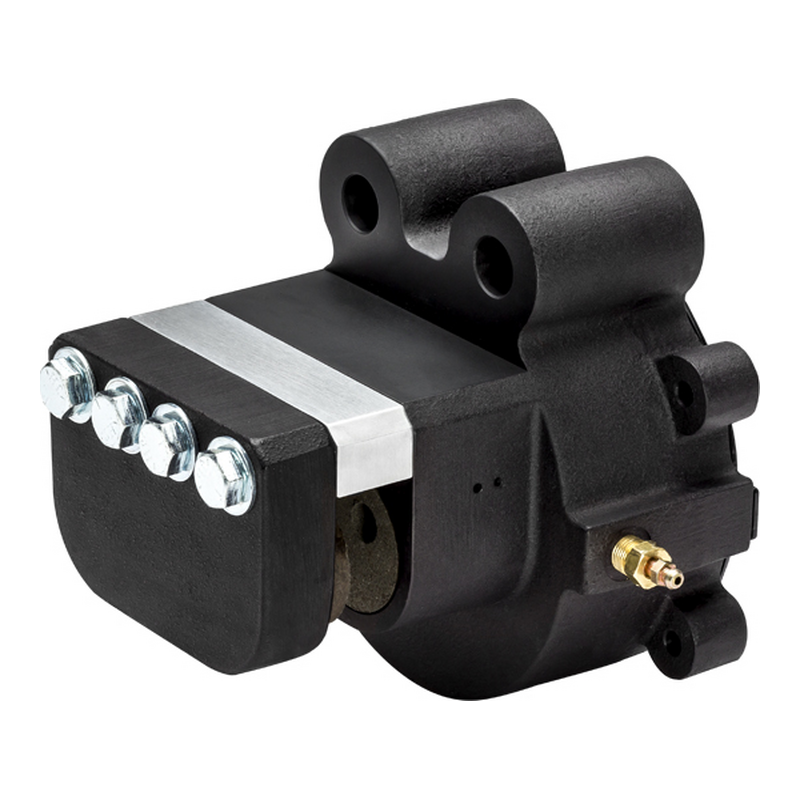

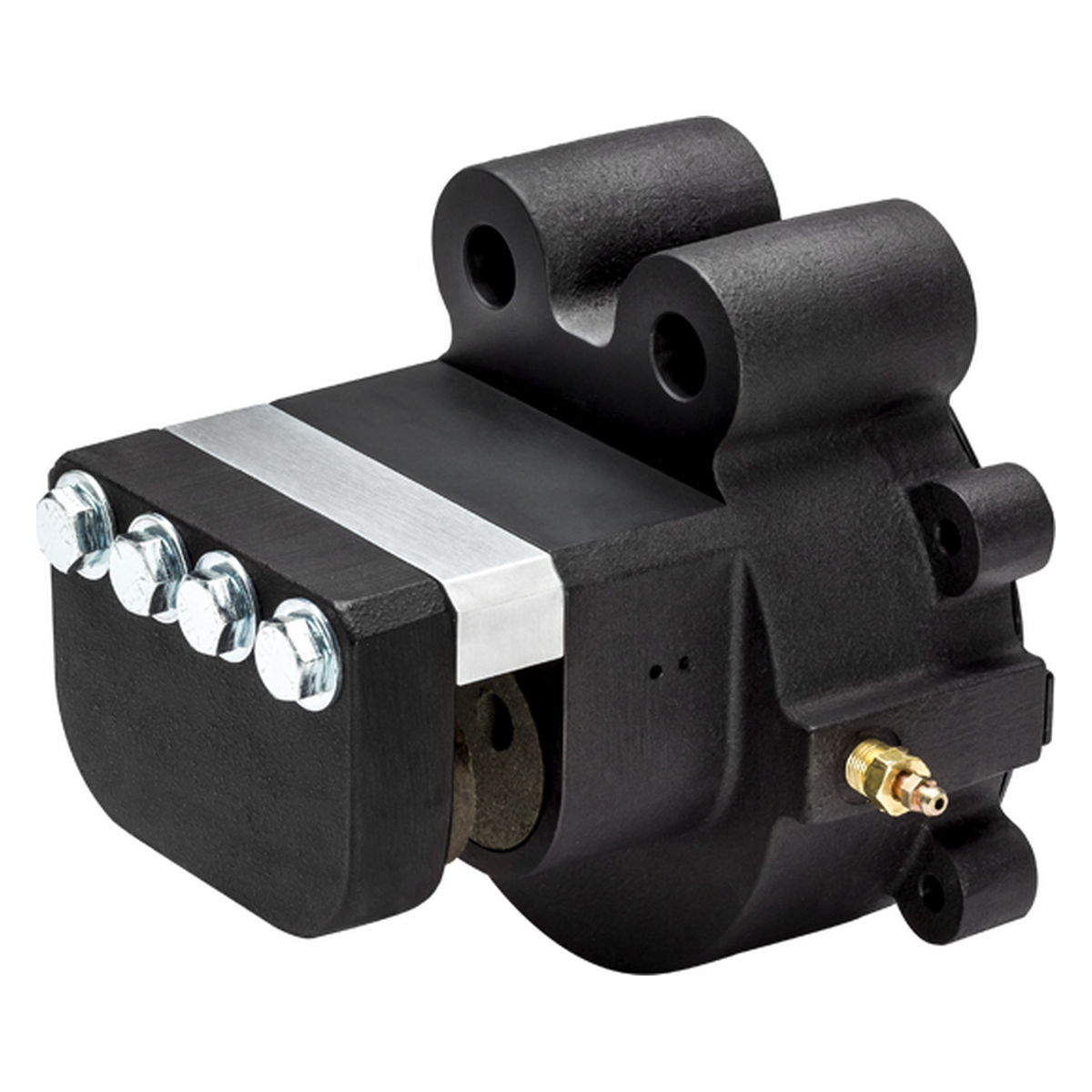

Model: FS210SIF
210 series, spring applied, low pressure hydraulic 200 PSI release, single acting caliper disc brake, sized for 3/16 inch thick brake disc.
- Cast Aluminum Construction
- Hardcoated Housings
- 200 PSI Release Pressure
- Dual Belleville Disc Spring Stacks
- Unlimited Brake Disc Diameter
- .45 Coefficient of Friction
- Replaceable Friction Pads
- Non-Asbestos Friction Material
- Buna N Seals
- 929 lb. Maximum Tangential Force
- 13,129 in. lb. Braking Torque using 30 inch Diameter Brake Disc
- 2065 lb. Clamping Force
| Additional Info | Dual Pistons. Spring Applied 200 PSI Release |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Disc Thick. (in.) | 3/16 |
| Model # | FS210SIF |
| Tangential Force | 929 lbf, 4132 N |
Click image to enlarge
