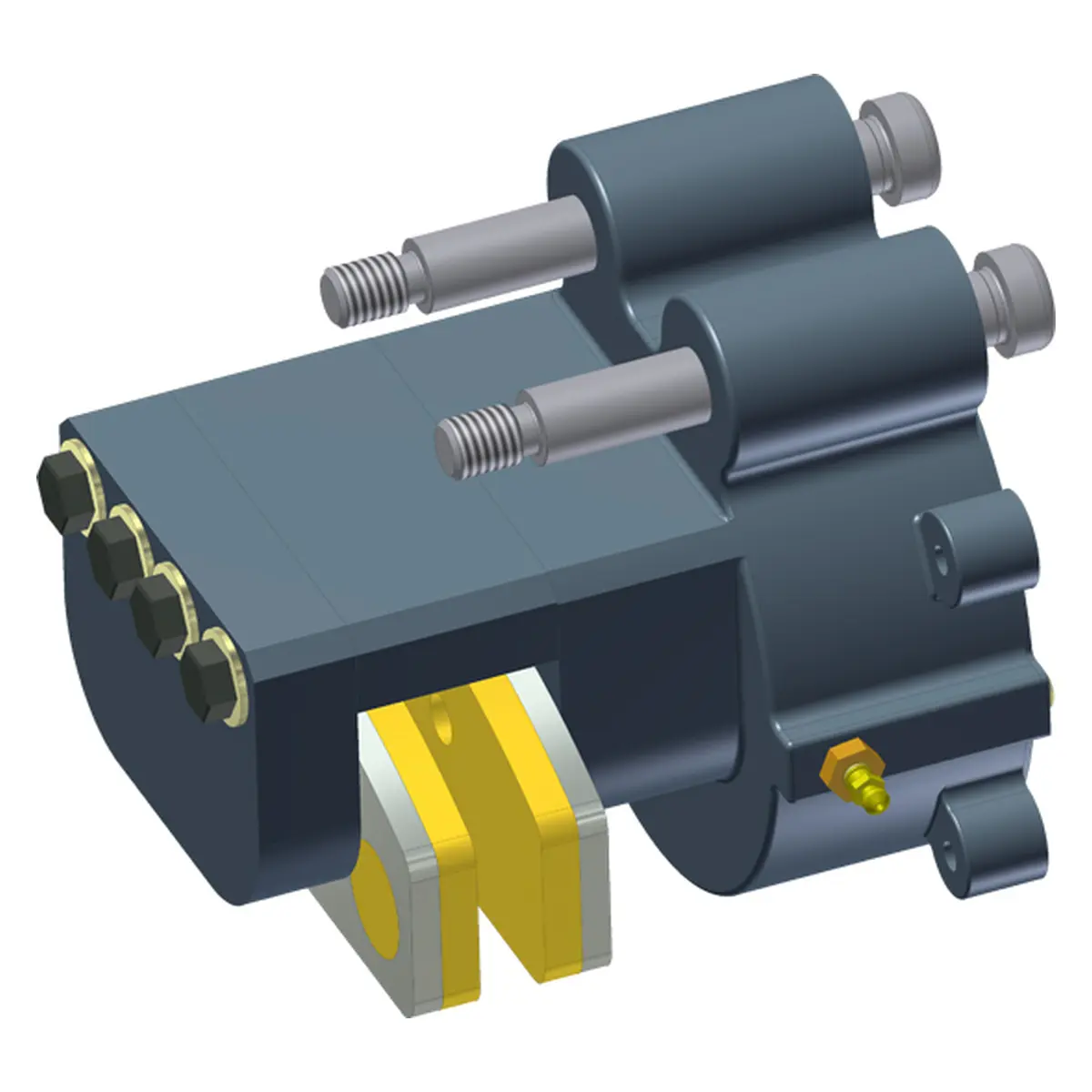

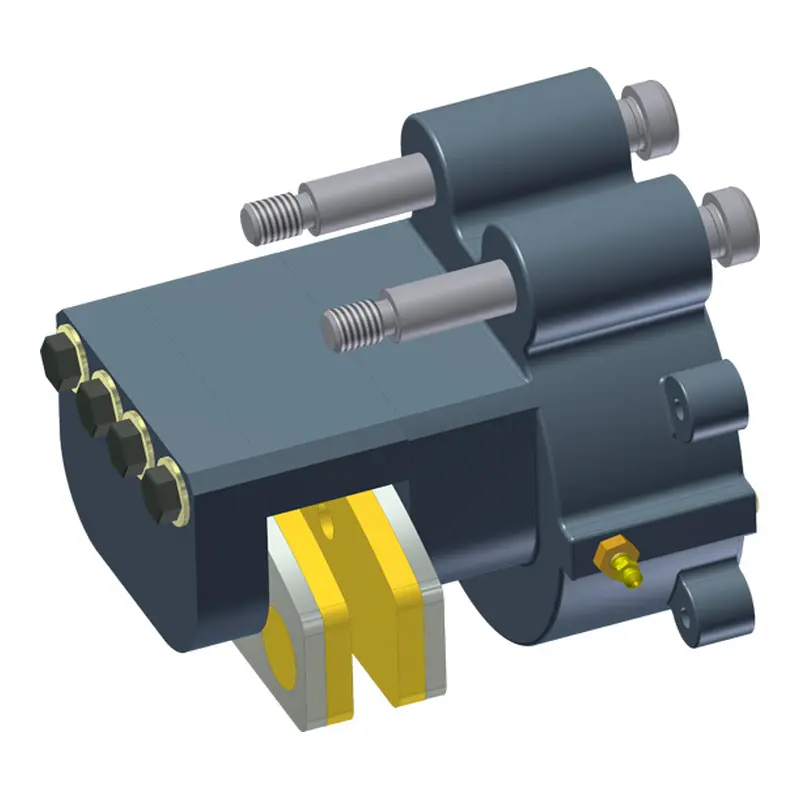

4005-0055

Model: FS210BF-EP

210 extended friction pad series, spring applied, low pressure hydraulic 200 PSI release, single acting caliper disc brake, sized for 1/4 inch thick brake disc.

  • Cast Aluminum Construction
  • Hardcoated Housings
  • 200 PSI Release Pressure
  • Dual Belleville Disc Spring Stacks
  • 12.0 inch Minimum Brake Disc Diameter to Unlimited
  • .45 Coefficient of Friction #951023
  • Replaceable Friction Pads
  • Non-Asbestos Friction Material
  • Buna N Seals
  • 929 lb. Maximum Tangential Force
  • 13,129 in. lb. Braking Torque using 30-inch Diameter Brake Disc
  • 2064 lb. Clamping Force
Additional Info Dual Pistons. Spring Applied 200 PSI Release
Description Single Acting, Floating Mount. Use Fixed Disc
Disc Thick. (in.) 1/4
Model # FS210BF-EP
Tangential Force 929 lbf, 4132 N
