Model: FS500DL

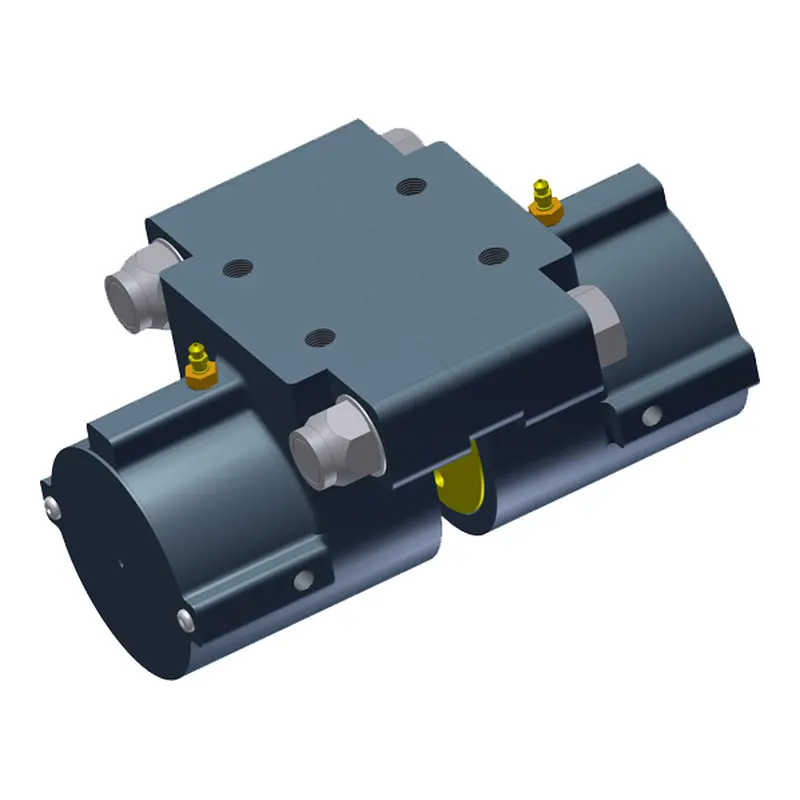

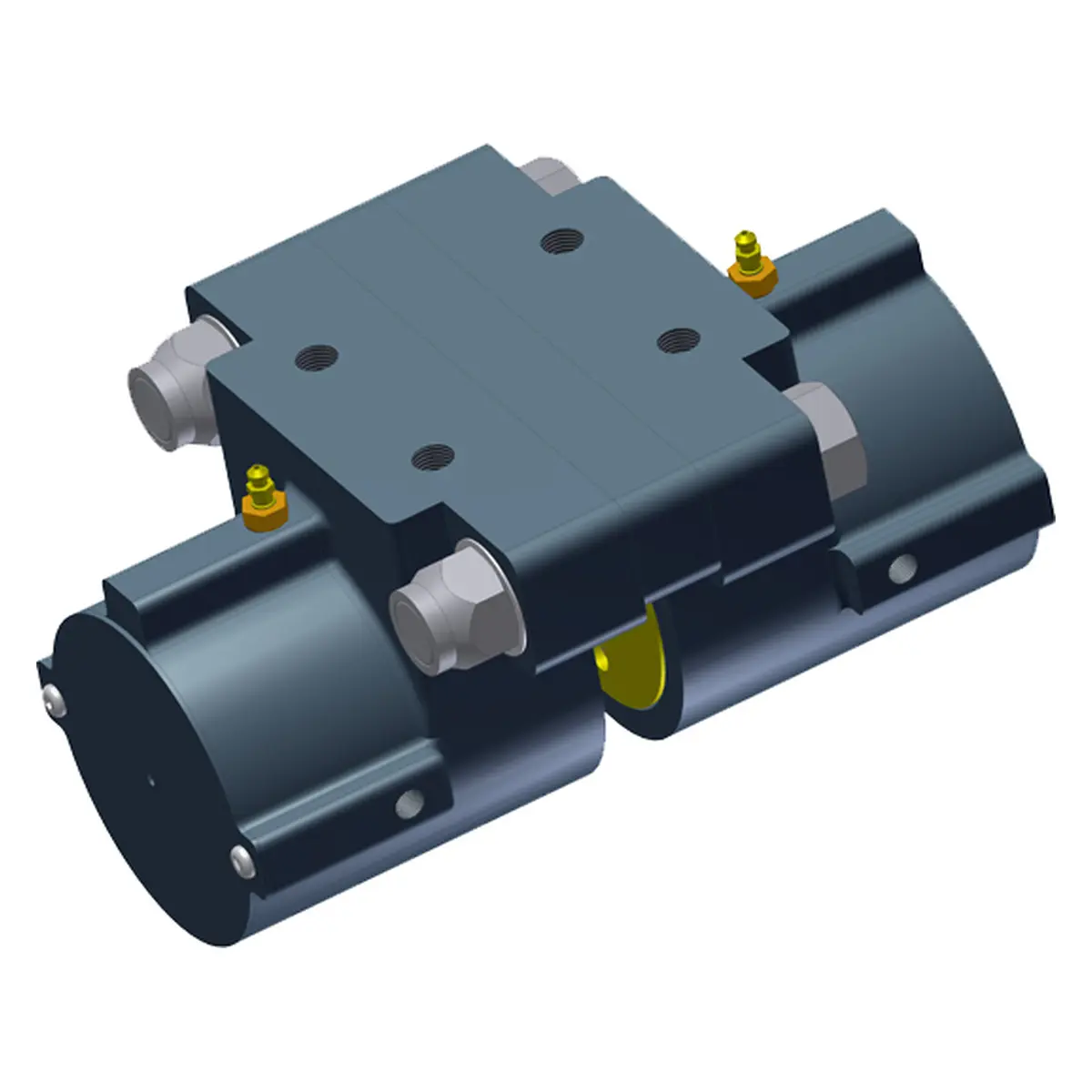

500 Series, Hydraulic Spring Applied, Double Acting Caliper Disc Brake. Sized for 3/8 inch Thick Brake Disc.

  • Fixed Mount Brakes Can Be Used With Vertical or Horizontal Brake Discs
  • Cast Aluminum Construction
  • Hardcoated Housings
  • 1500 PSI Release Pressure
  • 75 PSI Air Release Using 18:1 Air/Oil Intensifier
  • Dual Belleville Disc Spring Stacks
  • Fits on Brake Discs from 14-inch Diameter and Larger
  • .45 coefficient of friction
  • Internal Crossover Porting
  • Buna N & Polyurethane Seals
  • Non-Asbestos Friction Material
  • 3059 lb. Maximum Tangential Force
  • 41,112 in. lb. Braking Torque using 30-inch Diameter Brake Disc
  • 6798 lb. Clamping Force

Engineering note: Spring applied brakes are intended for use as an emergency stop or static holding device. It is not suggested to use in continuous slip applications as torque capacity is directly related to friction pad wear.

Additional Info Dual Pistons. Spring Applied 1500 PSI Release
Description Double Acting, Fixed Mount. Use Fixed or Floating Disc
Disc Thick. (in.) 3/8
Model # FS500DL
Tangential Force 3059 lbf, 13,607 N
