4500-0014

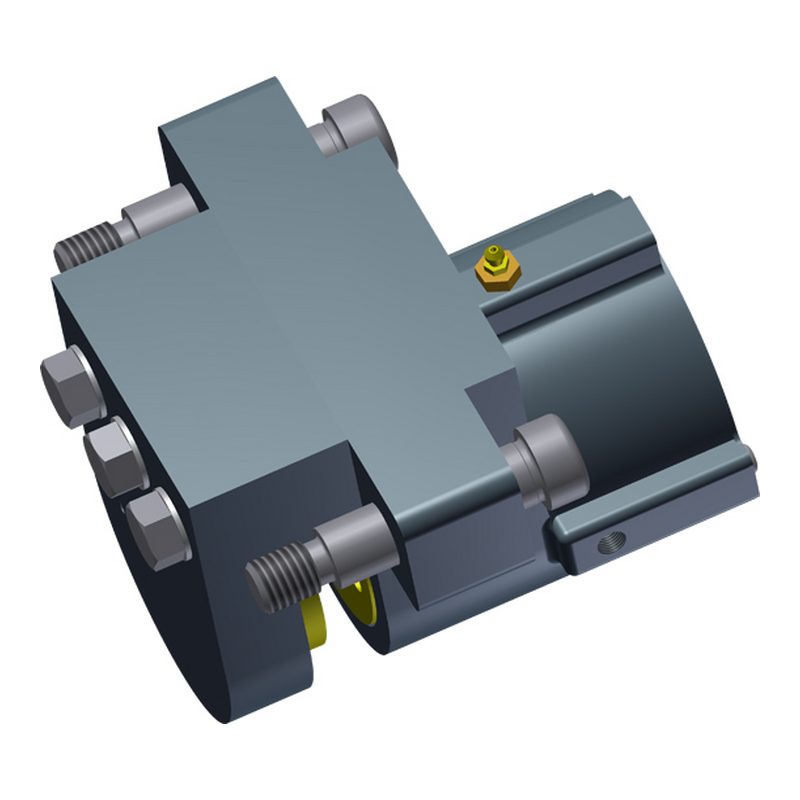

Model: FS500SL
500 Series, Hydraulic Spring Applied, Single Acting Caliper Disc Brake. Sized for 3/8 inch Thick Brake Disc.
- Cast Aluminum Construction
- Hardcoated Housings
- 1500 PSI Release Pressure
- 75 PSI Air Release Using 18:1 Air/Oil Intensifier
- Single Belleville Disc Spring Stack
- Fits on Brake Discs from 14-inch Diameter and Larger
- .45 coefficient of friction #951023
- Buna N & Polyurethane Seals
- Non-Asbestos Friction Material
- 3059 lb. Maximum Tangential Force
- 41,112 in. lb. Braking Torque using 30-inch Diameter Brake Disc
- 6798 lb. Clamping Force
Engineering note: Spring applied brakes are intended for use as an emergency stop or static holding device. It is not suggested to use in continuous slip applications as torque capacity is directly related to friction pad wear.
| Additional Info | Single Piston. Spring Applied 1500 PSI Release |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Disc Thick. (in.) | 3/8 |
| Model # | FS500SL |
| Tangential Force | 3059 lbf, 13,607 N |
