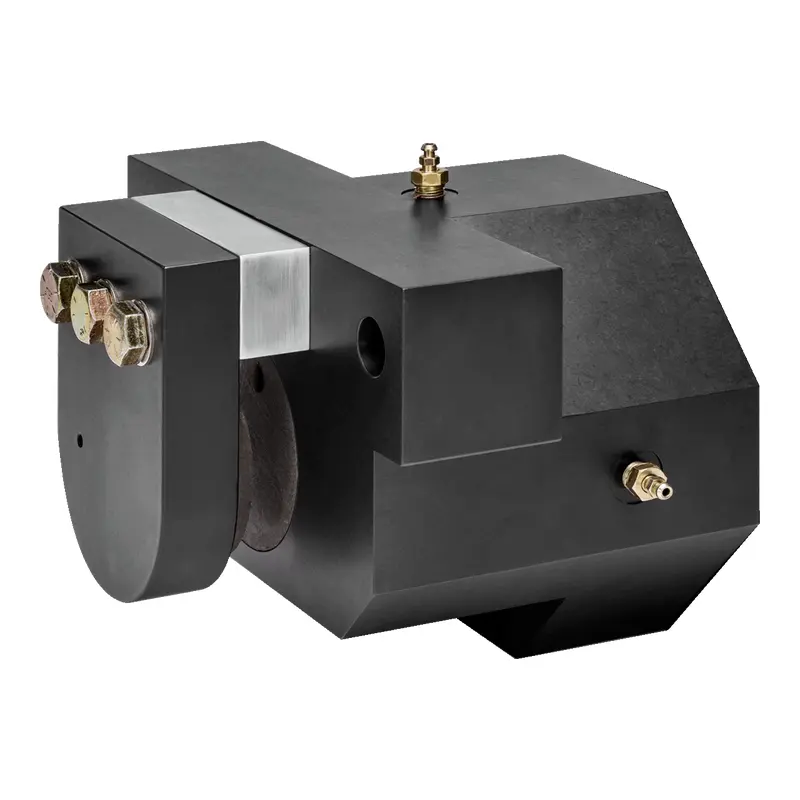

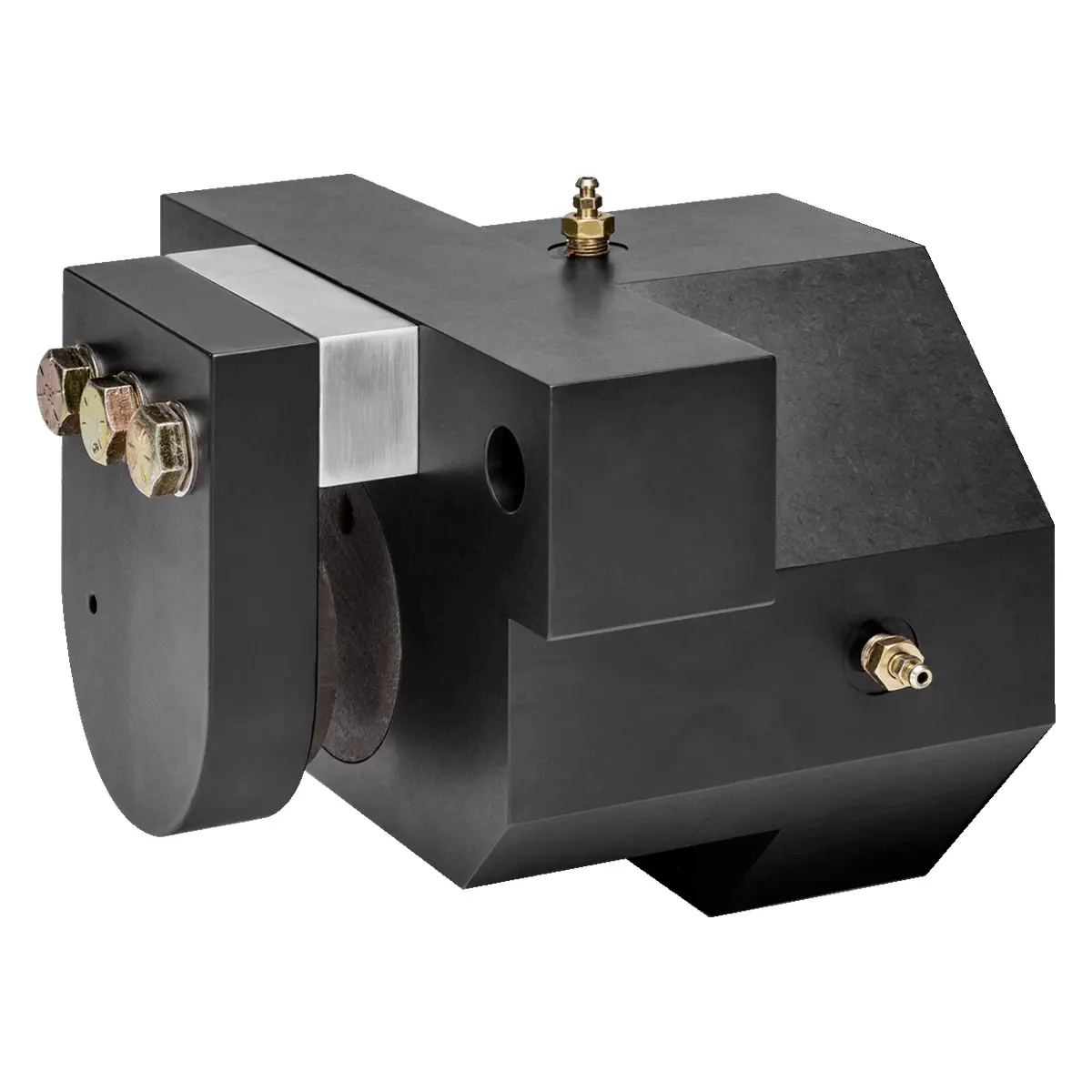

FS510
Hydraulic Spring Applied Brake
Salient Characteristics
300 PSI release pressure | Single Acting Single Belleville Disc Spring Stack | 3059 lb. Tangential Force at zero friction pad wear | 6798 lb. of Clamping Force | 41,112 in. lbs. F. braking torque using 30 inch disc diameter at maximum tangential force | 14.14 sq. in. total friction pad area | Unlimited brake disc diameter
Engineering note: Spring applied brakes are intended for use as an emergency stop or static holding device. It is not suggested to use in continuous slip applications as torque capacity is directly related to friction pad wear. Consult Factory.
Click image to enlarge
FS510 Low Pressure Series
| Product # | Model # | Description | Additional Info | Disc Thick. (in.) | Tangential Force | |
|---|---|---|---|---|---|---|
| 4006-0028 | FS510SB | Single Acting, Floating Mount. Use Fixed Disc | Single Piston. Spring Applied 300 PSI Release | 1/4 | 3059 lbf, 13,607 N | |
| 4006-0029 | FS510SL | Single Acting, Floating Mount. Use Fixed Disc | Single Piston. Spring Applied 300 PSI Release | 3/8 | 3059 lbf, 13,607 N | |
| 4006-0030 | FS510SE | Single Acting, Floating Mount. Use Fixed Disc | Single Piston. Spring Applied 300 PSI Release | 1/2 | 3059 lbf, 13,607 N | |
| 4006-0031 | FS510SJ | Single Acting, Floating Mount. Use Fixed Disc | Single Piston. Spring Applied 300 PSI Release | 5/8 | 3059 lbf, 13,607 N | |
| 4006-0032 | FS510ST | Single Acting, Floating Mount. Use Fixed Disc | Single Piston. Spring Applied 300 PSI Release | 3/4 | 3059 lbf, 13,607 N | |
| 4006-0033 | FS510SO | Single Acting, Floating Mount. Use Fixed Disc | Single Piston. Spring Applied 300 PSI Release | 1.0 | 3059 lbf, 13,607 N | |
| 4006-0034 | FS510SQ | Single Acting, Floating Mount. Use Fixed Disc | Single Piston. Spring Applied 300 PSI Release | 1-1/8 | 3059 lbf, 13,607 N |
