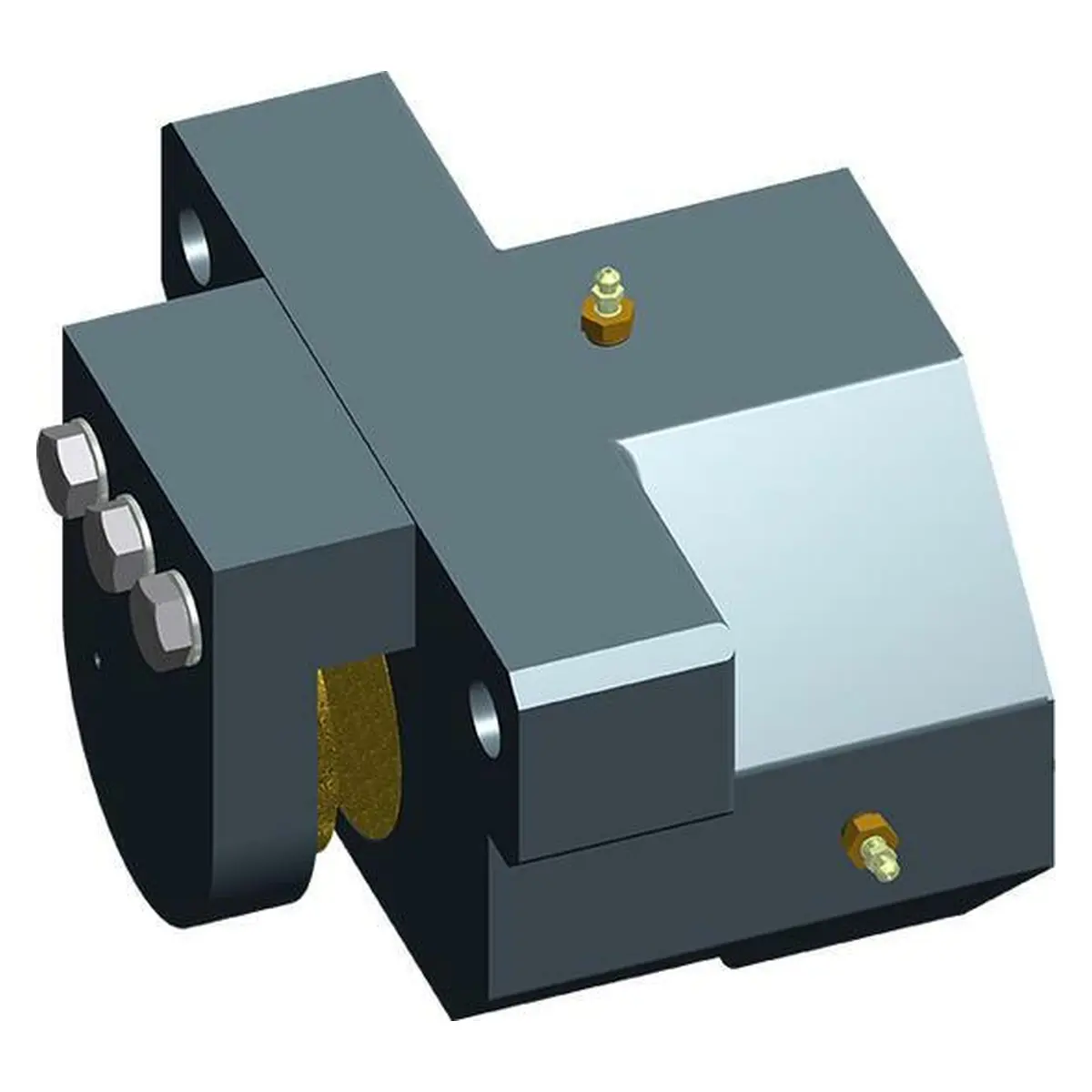

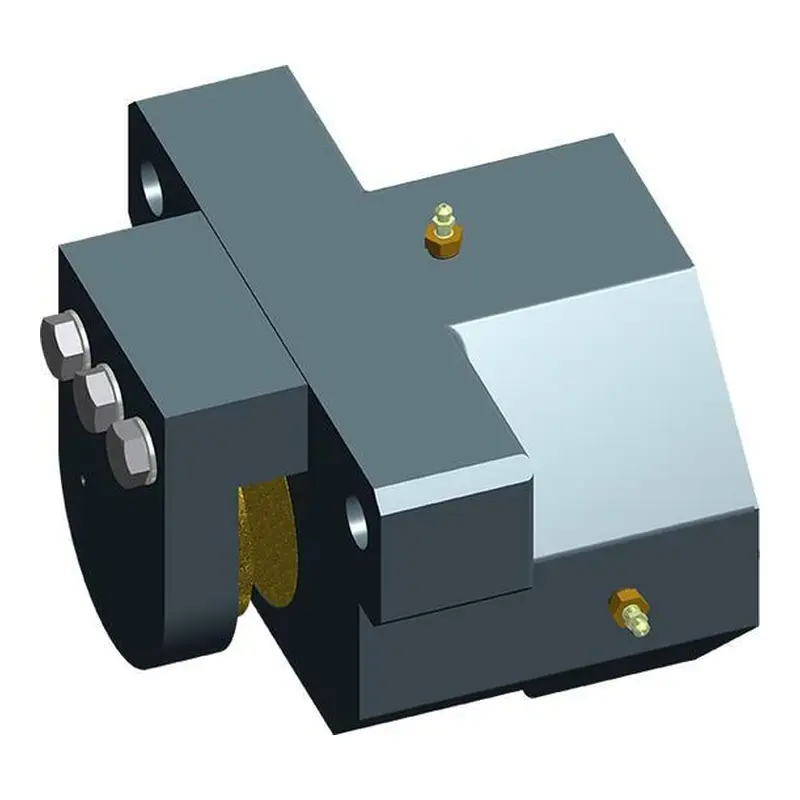

4006-0032
Model: FS510ST
510 series, spring applied, low pressure hydraulic 300 PSI release, single acting caliper disc brake, sized for 3/4 inch thick brake disc.
- Cast Aluminum Construction
- Hardcoated Housings
- 300 PSI Release Pressure
- Belleville Disc Spring Stack
- Brake Disc Diameter from 14 inches to Unlimited
- .45 Coefficient of Friction #951023
- Buna N & Polyurethane Seals
- Non-Asbestos Friction Material
- Replaceable Friction Pads
- 3059 lb. Maximum Tangential Force
- 41,112 in. lb. Braking Torque using 30 inch Diameter Brake Disc
- 6798 lb. Clamping Force
| Additional Info | Single Piston. Spring Applied 300 PSI Release |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Disc Thick. (in.) | 3/4 |
| Model # | FS510ST |
| Tangential Force | 3059 lbf, 13,607 N |
