4004-0404
Model: M200AF

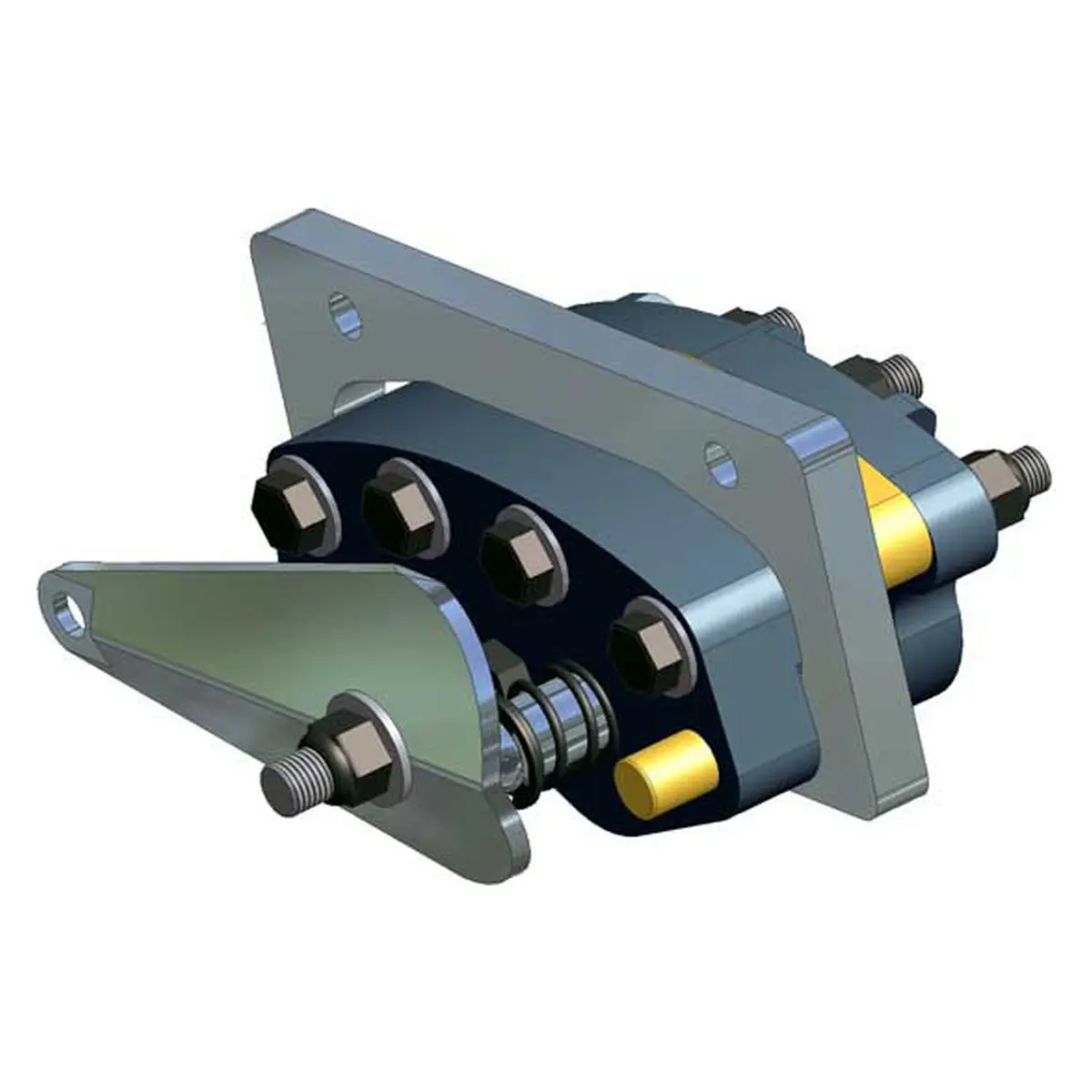

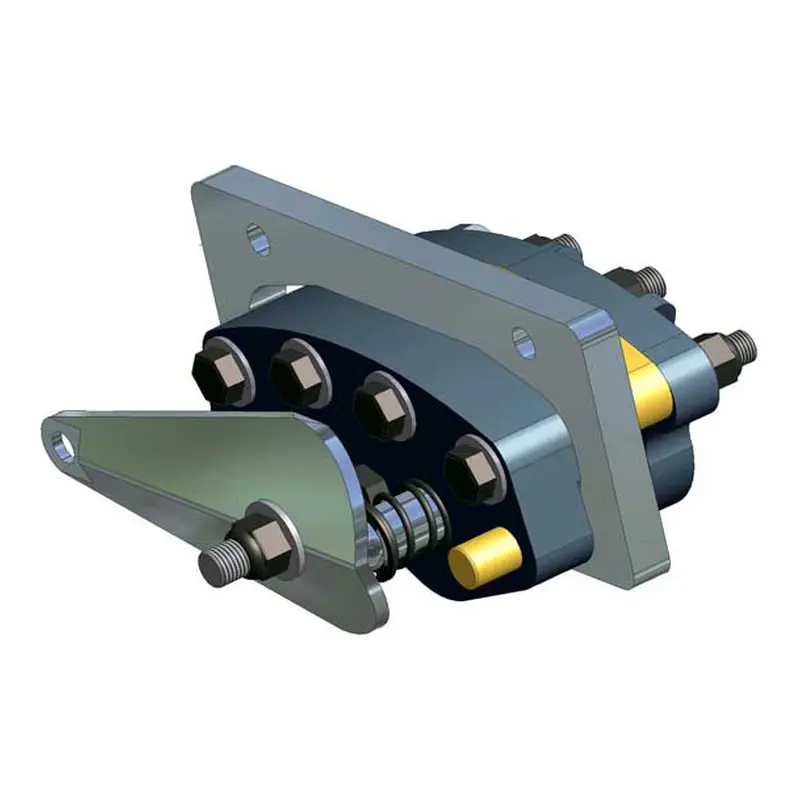

200 series, mechanical single acting caliper disc brake w/ floating bracket, sized for 5/32 inch thick brake disc.
- Aluminum Construction
- Hardcoated
- Fits on Brake Discs up to 16 inches
- Adjustable Nut for Pad Wear
- Replaceable Friction Pads (WCB p/n 4000-1052)
- Non-Asbestos Friction Material
- Dynamic torque (inch/lb) 7.45 x Lever Force (lb.) x braking radius
Cam Lever Travel Data:
- Gap between friction pad faces and disc when new = .048" total.
- Angular movement of lever required to actuate brake when new = 7º 30'.
- Maximum axial movement without intermediate adjustment = .387".
- .208" total wear allowed before adjustment of each side.
- Power Factor: M38F and M47F Series 1X, 200 Series 3.5X
| Additional Info | Dual Spring Retractable Pistons |
| Bolt Type | Grade 8 Zinc Plated |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Disc Thick. (in.) | 5/32 |
| Housing Material | Aluminum, Hardcoated |
| Lever Force (lb.) | 580 |
| Lever/Cam | Stamped, heat treated one piece lever/cam |
| Max. Disc Diameter, in. | 16 |
| Model # | M200AF |
| Total Pad Area | 8.00 sq. in. |
| Wearable Friction Material | 1.66 cu. in. |
Click image to enlarge
