4004-0141
Model: M47MEF
47 series, mechanical single acting caliper disc brake w/ float plates, sized for 1/2 inch thick brake disc.
- Aluminum Construction
- Hardcoated
- Fits on Brake Discs with Unlimited Diameter
- Adjustable Nut for Pad Wear
- Replaceable Friction Pads (WCB p/n 4000-1052)
- Non-Asbestos Friction Material
- Dynamic torque (inch/lb) 2.69 x Lever Force (lb.) x braking radius
Cam Lever Travel Data:
- 15º maximum lever travel when friction pads are new and with 1/32" gap on each side of disc.
- Periodic tightening of lock nut will reduce travel of lever and will allow 1/4" wear on each friction pad.
- 90º maximum lever travel after 3/16" wear on each friction pad and without intermediate tightening of lock nut.
- Power Factor: M38F and M47F Series 1X, 200 Series 3.5X
| Additional Info | Single Spring Retractable Piston |
| Bolt Type | Grade 8 Zinc Plated |
| Description | Single Acting, Floating Mount. Use Fixed Disc |
| Disc Thick. (in.) | 1/2 |
| Housing Material | Aluminum, Hardcoated |
| Lever Force (lb.) | 450 |
| Lever/Cam | Machined V-Notch Cam |
| Max. Disc Diameter, in. | Unlimited |
| Model # | M47MEF |
| Total Pad Area | 4.00 sq. in. |
| Wearable Friction Material | 0.83 cu. in. |

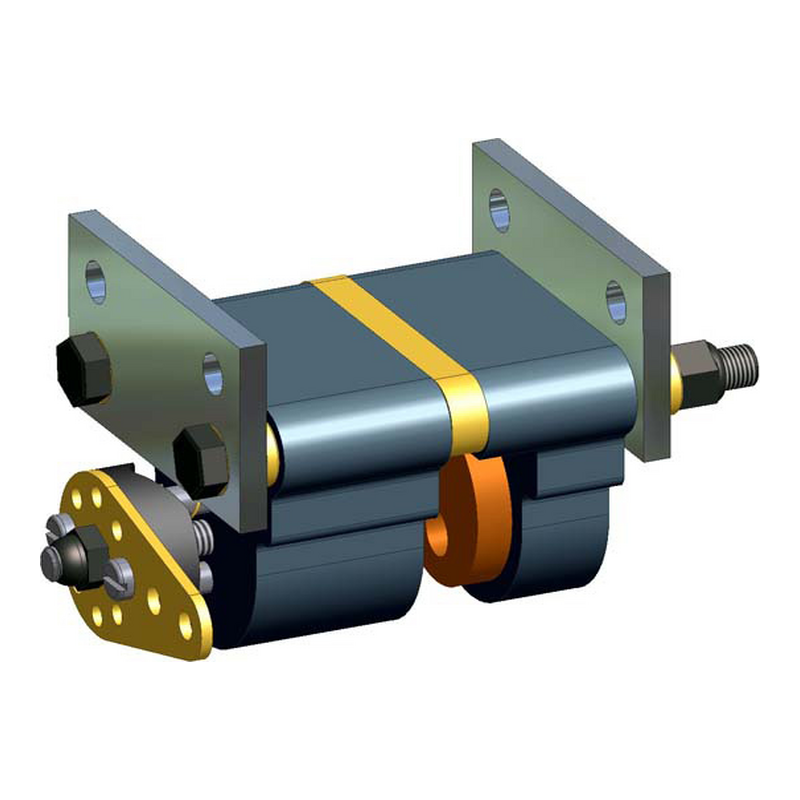

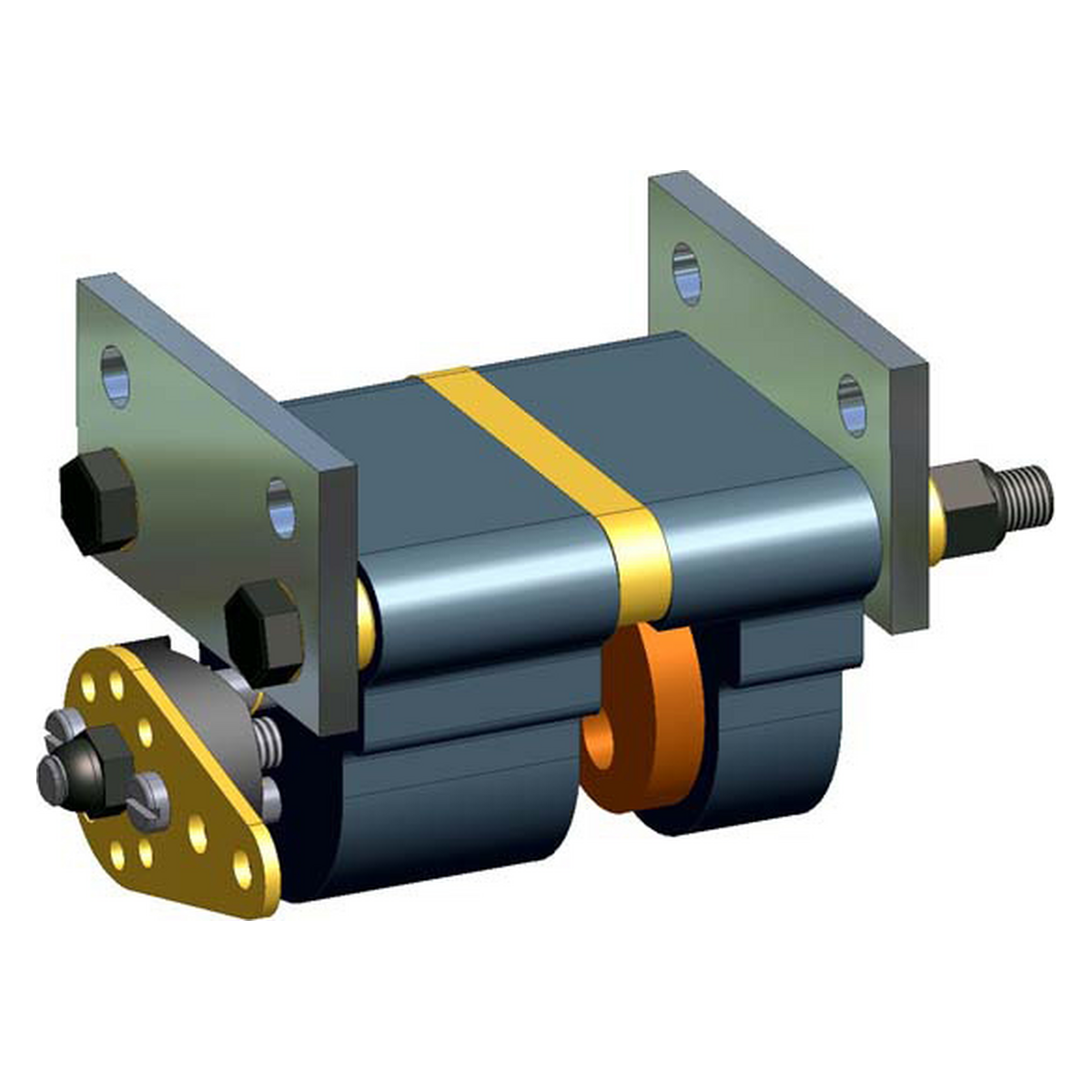

Click image to enlarge
