4004-0707

Model: P38DB

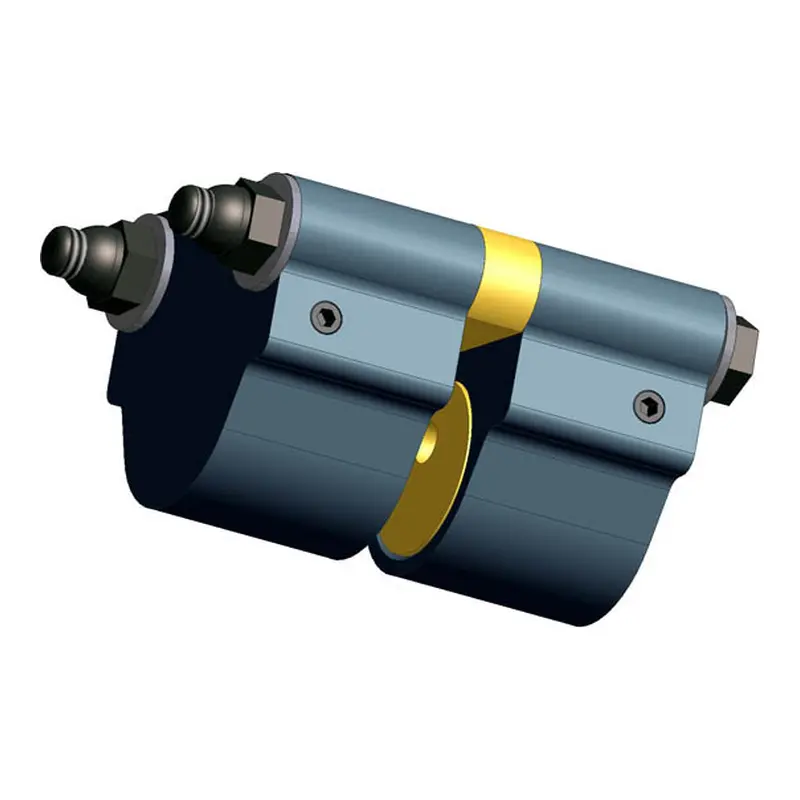

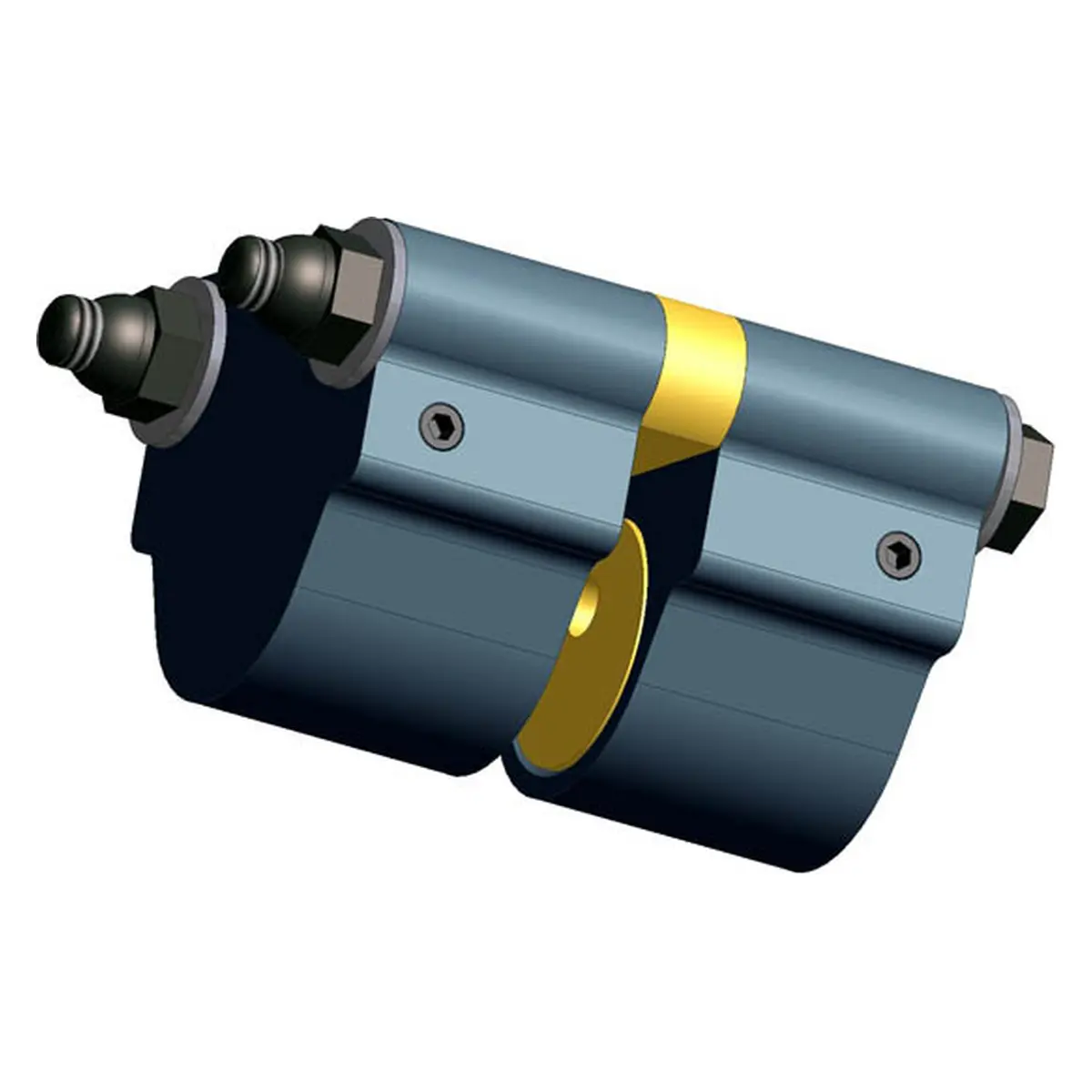

38 series, pneumatic double acting caliper disc brake sized for 1/4 inch thick brake disc.

  • Aluminum Construction
  • Hardcoated
  • Fits on Brake Discs with Unlimited Diameter
  • Replaceable Friction Pads (WCB p/n 4000-1054)
  • Dynamic torque (inch/lb): 70 lbf per 100 psi x braking radius
  • Power Factor: 38 Series 1X, 47 Series 2X, 200 Series 4X
Additional Info Dual Non-Retractable Pistons
Description Double Acting, Fixed Mount. Use Fixed or Floating Disc
Disc Thick. (in.) 1/4
Fluid Displacement 0.029 cu. in
Fluid Type Air
Max. Pressure, PSI 200
Model # P38DB
Piston Dia. 1.125 in.
Seals Buna-N
Total Pad Area 2.0 sq. in.
Wearable Friction Material 0.46 cu. in.
