4004-0744
Model: P38DAR

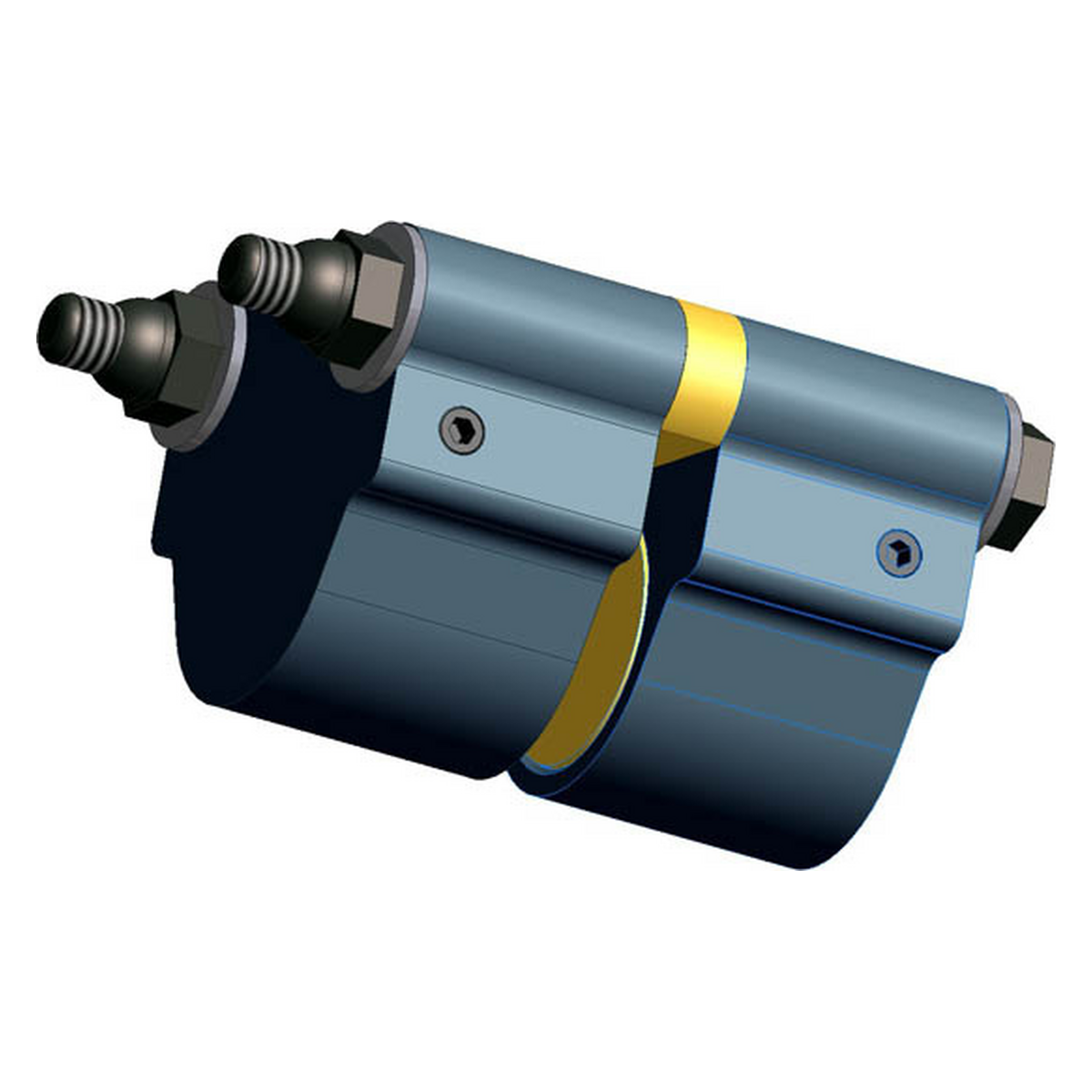

38 series, pneumatic double acting caliper disc brake w/ retractable pistons, sized for 5/32 inch thick brake disc.
- Aluminum Construction
- Hardcoated
- Fits on Brake Discs with Unlimited Diameter
- Replaceable Friction Pads (WCB p/n 4000-1320)
- Dynamic torque (inch/lb): 70 lbf per 100 psi x braking radius
- Power Factor: 38 Series 1X, 47 Series 2X, 200 Series 4X
Additional Info | Dual Spring Retractable Pistons |
Description | Double Acting, Fixed Mount. Use Fixed or Floating Disc |
Disc Thick. (in.) | 5/32 |
Fluid Displacement | 0.029 cu. in. |
Fluid Type | Air |
Max. Pressure, PSI | 200 |
Model # | P38DAR |
Piston Dia. | 1.125 in. |
Seals | Buna-N |
Total Pad Area | 2.0 sq. in. |
Wearable Friction Material | 0.11 cu. in. |
