4004-0037
Model: P47SB

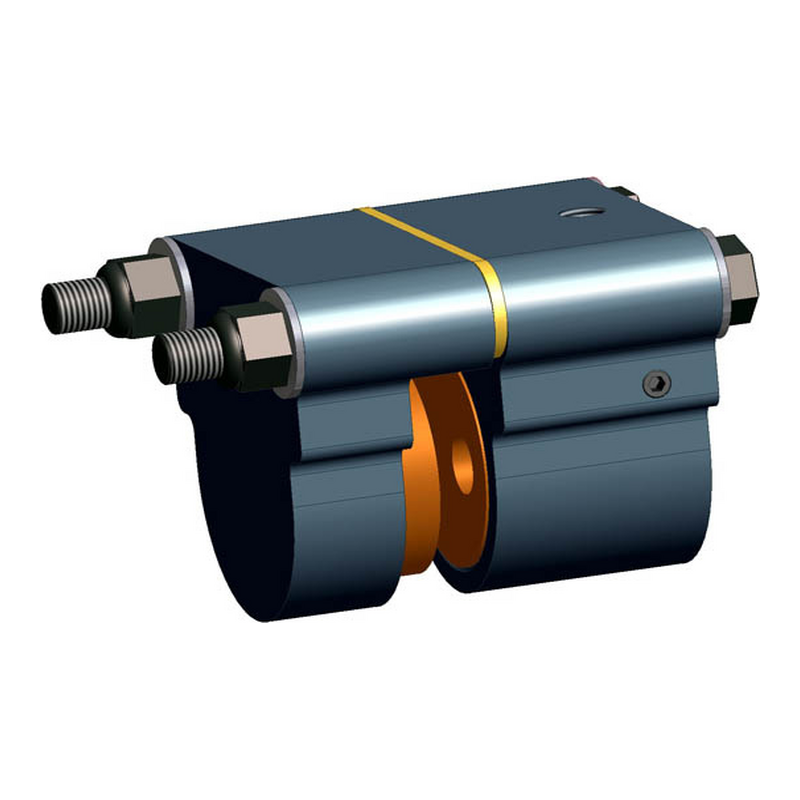

47 series, pneumatic single acting caliper disc brake sized for 1/4-inch-thick brake disc.
- Aluminum Construction
- Hardcoated
- Fits on Brake Discs with Unlimited Diameter
- Replaceable Friction Pads (WCB p/n 4000-1052)
- Dept. of Defense Approved Friction Pads
- Dynamic torque (inch/lb): 144 lbf per 100 psi x braking radius
- Power Factor: 200 Series 4X, 38 Series 1X, 47 Series 2X
| Additional Info | Single Non-Retractable Piston |
| Description | Single Acting, Fixed Mount. Use Floating Disc |
| Disc Thick. (in.) | 1/4 |
| Fluid Displacement | 0.062 cu. in. |
| Fluid Type | Air |
| Max. Pressure, PSI | 200 |
| Model # | P47SB |
| Piston Dia. | 1.625 in. |
| Seals | Buna-N |
| Total Pad Area | 4.00 sq. in. |
| Wearable Friction Material | 0.83 cu. in. |
